Description

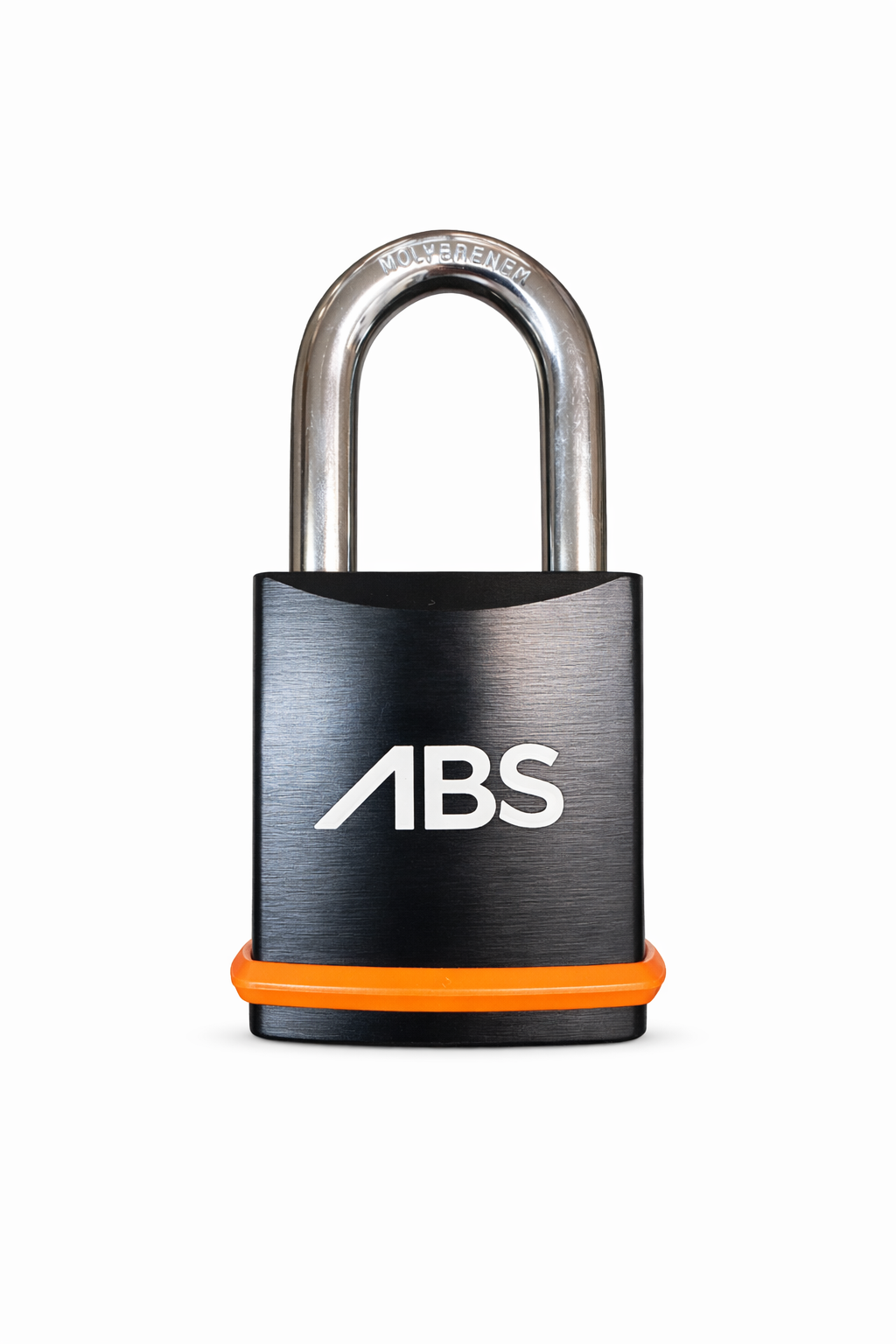

The ABS Type E High Security Padlock – Medium Shackle is engineered for demanding commercial, industrial and high-risk residential applications. Designed as part of the ABS® Euro Profile range, this robust high security padlock combines a hardened steel body, molybdenum alloy steel shackle and euro cylinder compatibility for advanced, scalable protection.
The medium shackle configuration provides increased clearance while maintaining strong resistance against cutting and leverage attacks — making it ideal for gates, shutters and security chains.
Supplied as standard with an ABS half cylinder, 3 keys and security key card.
| Padlock Size Chart | ||||||||
| (mm) | Padlock Type | A | B | C | D | E | F | G |
| Lock Body | W | 46 | 46 | 46 | 61 | 61 | 61 | 61 |
| H | 48 | 48 | 48 | 76 | 76 | 76 | 110 | |
| T | 28 | 28 | 28 | 32 | 32 | 32 | 32 | |
| Shackle | D | 6.4 | 6.4 | 6.4 | 11 | 11 | 11 | 11 |
| X | 28 | 50 | 76 | 28 | 50 | 76 | 28 | |
| Y | 20 | 20 | 20 | 32 | 32 | 32 | 32 | |
Built for Serious Physical Protection
This high security padlock is designed to resist common forms of forced entry:
-
🔒 Hardened solid steel body with durable weather-resistant coating
-
🛡️ Hardened molybdenum alloy steel medium shackle for superior cut resistance
-
⚙️ Ball locking double shackle system for enhanced anti-pull strength
-
🔐 Drill, pick and bump resistant when paired with ABS Ultimate cylinders
-
🌧️ Protective keyway cover to prevent dirt and contamination
The double locking mechanism secures both sides of the shackle, significantly increasing resistance to prying or twisting attacks.
Euro Cylinder Flexibility for Key Control
One of the major advantages of the ABS Type E is its compatibility with ABS high security euro cylinders.
This padlock can be:
-
Supplied with an ABS high security cylinder
-
Supplied without a cylinder (to suit existing systems)
-
Keyed alike
-
Keyed to differ
-
Integrated into a master key system
This makes it ideal for commercial sites requiring structured access control across multiple locking points.
Medium Shackle – Versatile Clearance
The medium shackle option offers additional vertical clearance compared to standard models, making it suitable for:
-
Security gates
-
Roller shutters
-
Storage containers
-
Chains and hasps
-
Industrial units
-
Perimeter fencing
It provides flexibility without compromising the strength expected from a professional-grade high security padlock.
Secure & Practical Operation
-
Key retained when open for added safety
-
55°–65° key rotation to unlock
-
Stainless steel cylinder shutter
-
Can be supplied with or without cylinder
This ensures dependable performance in both high-frequency and exposed environments.
Why Choose the ABS Type E High Security Padlock?
If you need a high security padlock that combines hardened construction, flexible euro cylinder keying and medium shackle clearance, the ABS Type E offers the perfect balance of strength and practicality.
It’s not just a padlock — it’s part of a scalable, high-security locking system designed for professional use.
