Euro Cylinder Locks & Door Barrels – Anti-Snap, Thumb Turn & Keyed Alike

Which euro cylinder do I need? For a front or back door, choose a TS007 3 star anti-snap cylinder the same size as your old one. We recommend the Avocet ABS; the Yale Platinum Ultra is our best-selling alternative. Measure from the centre fixing screw to each end: a 40/50 is 40mm inside and 50mm outside, and isn't the same as a 50/40. The new cylinder should sit flush with the handle or stick out no more than 3mm.

Avocet Elite Centre · ABS and Yale keys cut from your code · Order by 2pm for same-day dispatch (keyed alike sets: up to 7 working days)

Euro cylinder locks, also called door lock barrels, lock barrels or door barrels, are the lock fitted to most uPVC, composite and timber doors in the UK. You replace just the cylinder, not the whole lock: undo the fixing screw in the door edge, turn the key slightly and slide the old cylinder out. Our guide shows how to change a euro cylinder lock.

Anti-snap euro cylinders

Lock snapping is one of the most common ways burglars attack a uPVC or composite door. A standard euro cylinder can be snapped with basic tools, exposing the locking cam so the door can be opened. An anti-snap euro cylinder is built to resist this, so the lock stays secure even if the outside of the cylinder is attacked.

Not sure if your lock is anti-snap? Look at the face of the cylinder by the keyhole. If there's no Kitemark and no star rating, it's worth replacing it with an anti-snap cylinder.

TS007 3 star anti-snap cylinders

A TS007 3 star cylinder gives the full 3-star rating on its own, without security handles; a 1 star cylinder needs 2 star security handles to reach the same rating. Read what TS007 3 star means.

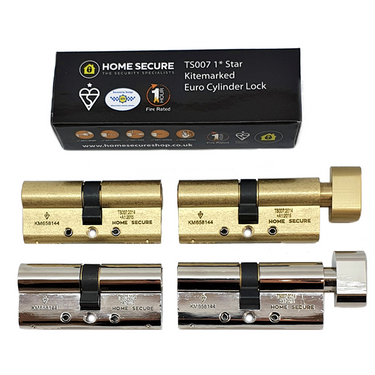

Our 3 star cylinders are the Avocet ABS, the Yale Platinum Ultra and APECS. Entry-level V5 and Home Secure 1 star cylinders are also available.

Avocet ABS or Yale Platinum Ultra?

Avocet ABS is the cylinder we've recommended for over 10 years. It's Kitemarked to TS007 3 star and rated Sold Secure Diamond. If it's snapped, the cam locks against the internal locked side of the cylinder, so it can't be operated by hand. ABS comes keyed alike (one key for every door) or built to work with your existing ABS key. 30mm sizes don't carry a Kitemark, but still have the anti-snap design.

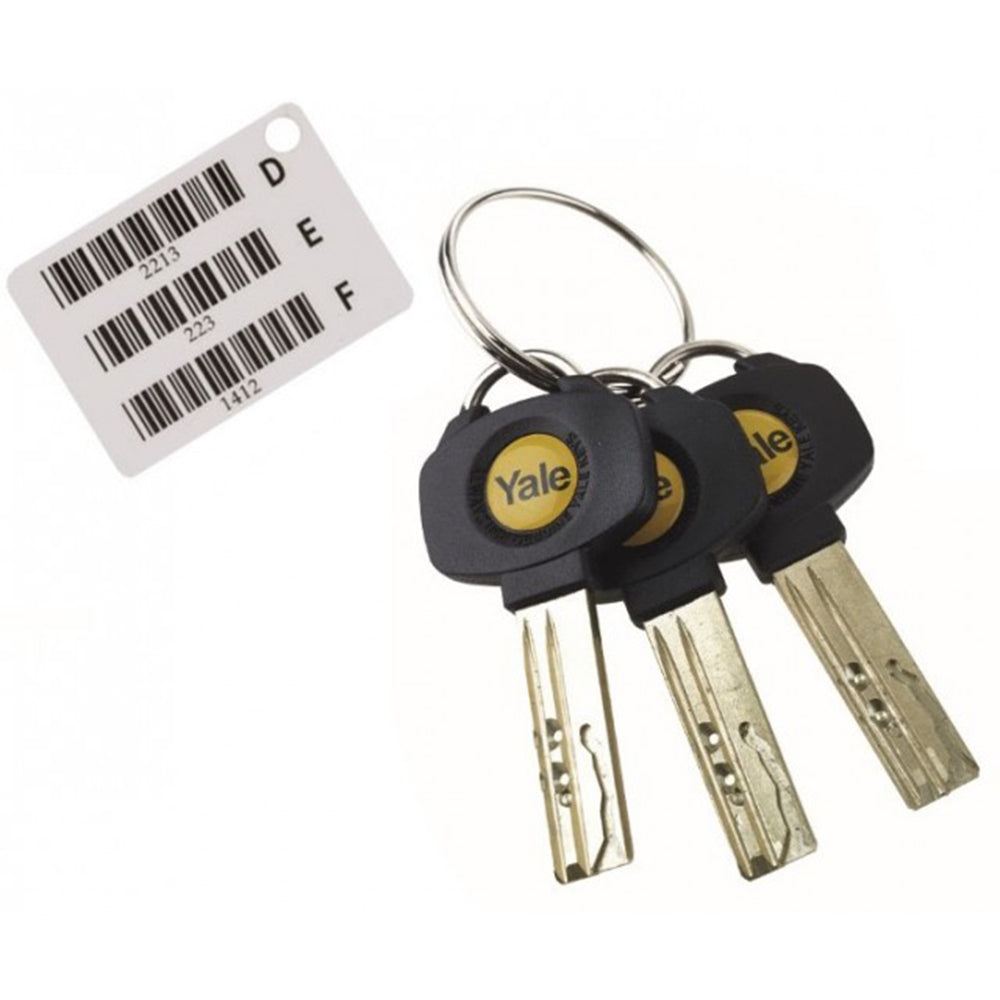

Yale Platinum Ultra is Kitemarked to TS007 3 star and rated Sold Secure Diamond, with dimple keys and a key code card for spares. It comes with a 10-year guarantee and the Yale anti-snap guarantee. It can't be keyed alike.

Choose your type

  • Key both sides: a key on each side. The safer choice where the inside can be reached through a letterbox or glass.
  • Thumb turn: a key outside and a turn knob inside, for a quick exit without hunting for a key.
  • Half euro: a key on one side only, for garages, sheds and utility doors.
  • Keyed alike: several Avocet ABS cylinders that all work from one key.

How to measure a euro cylinder

  1. Undo the fixing screw on the edge of the door and slide the cylinder out.
  2. Measure from the centre of the screw hole to the inside end (A).
  3. Measure from the centre of the screw hole to the outside end (B).
  4. Your size is A/B. A 40/50 is 40mm inside and 50mm outside, and isn't interchangeable with a 50/40.

Our euro cylinder measuring guide has photos of each step. Still unsure? Contact us.

Related guides

Not sure which to buy? Read our guide to the best high security door locks

2. Choose your size

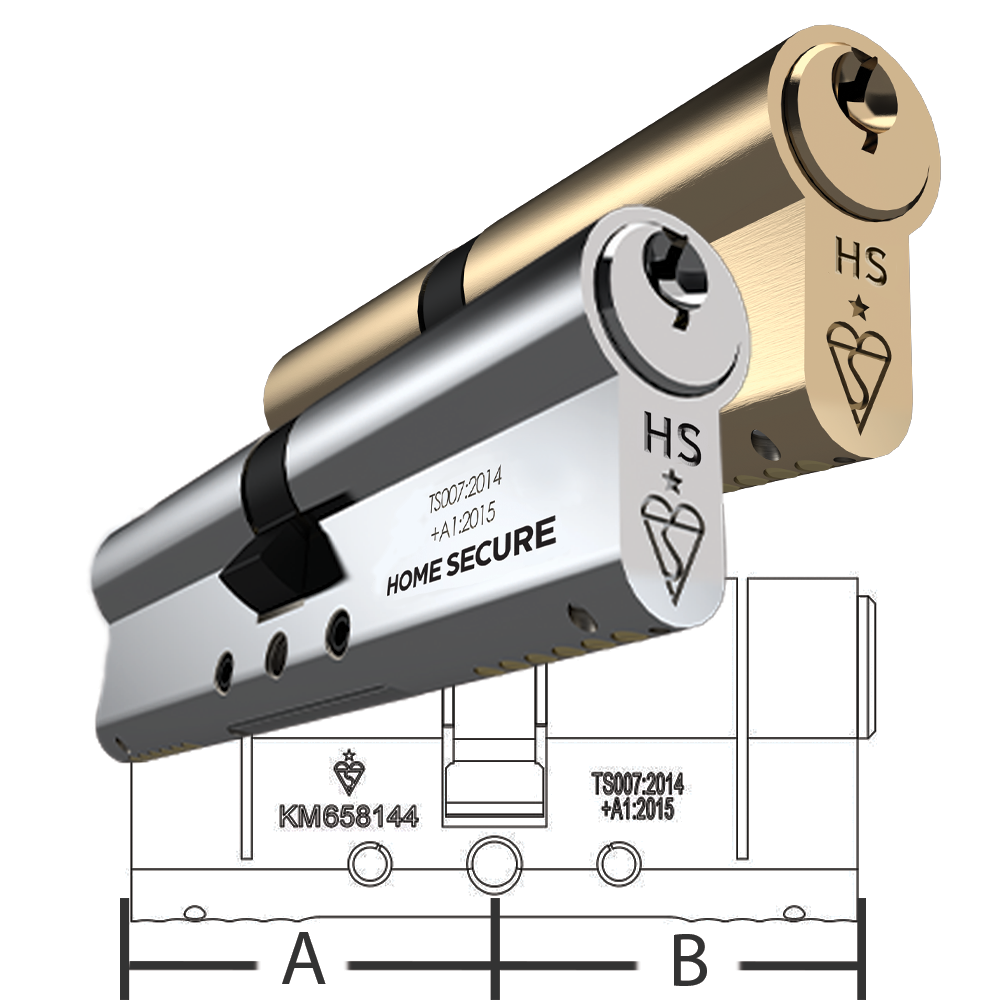

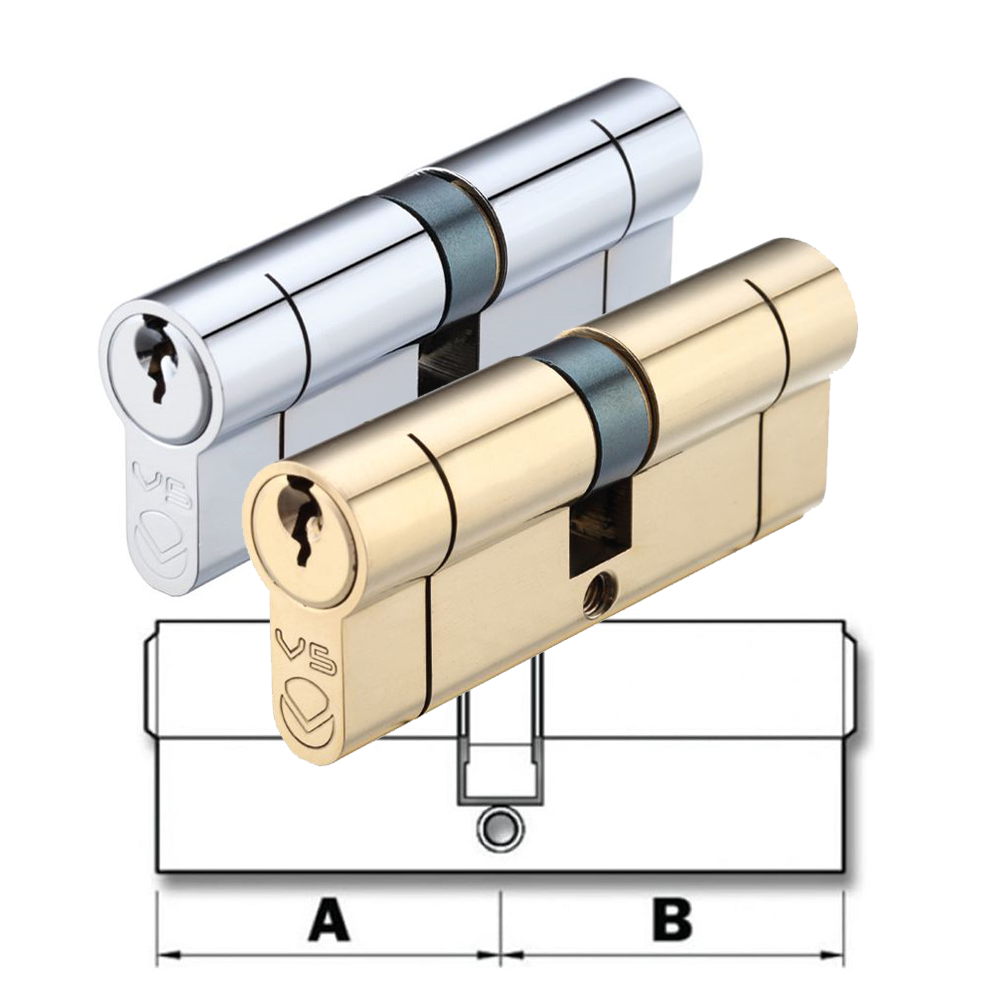

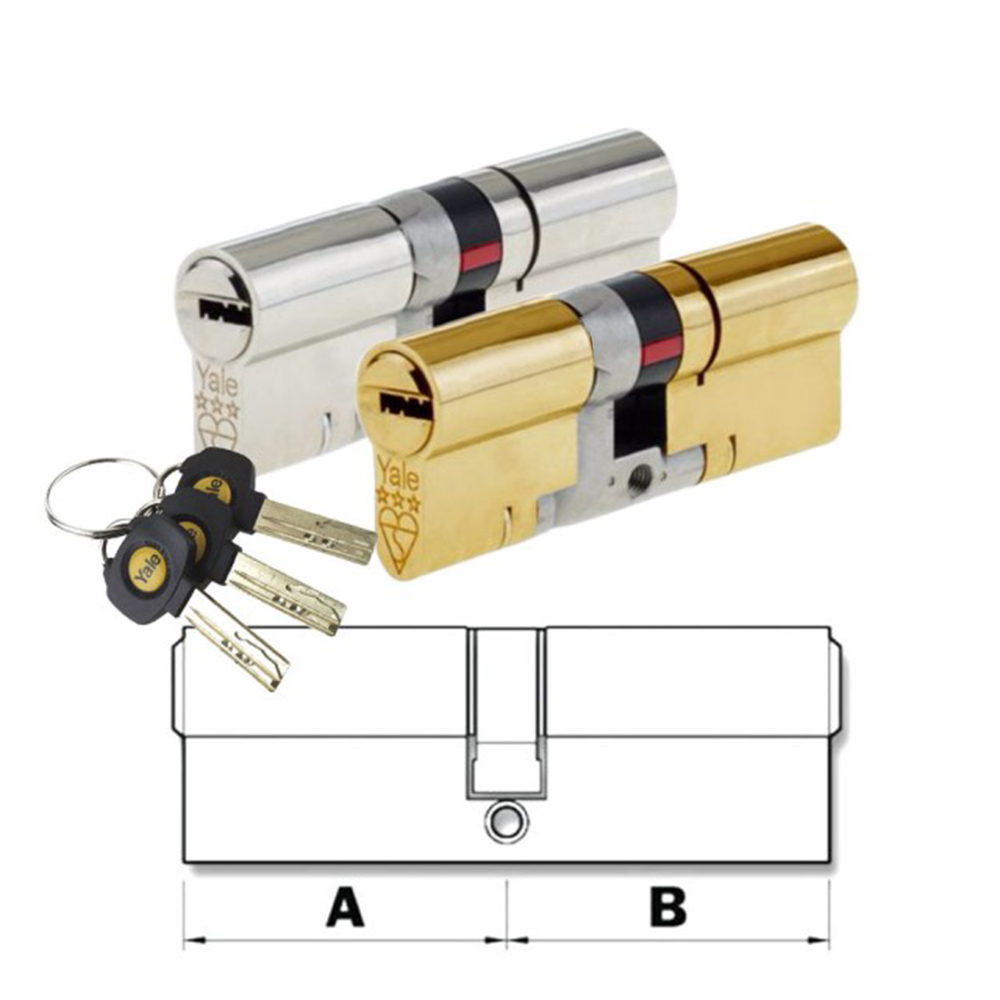

Euro cylinder measuring diagram: measure from the centre of the fixing screw to each end

How to measure your cylinder

Measure from the centre of the fixing screw to each end of the cylinder. Cylinders come in 5mm steps. On the outside, choose the size that sits flush with your handle or sticks out no more than 3mm. If the inside is between sizes, choose the next size up.

Still unsure? Email a photo of your cylinder and the edge of your door to info@homesecureshop.co.uk or call 0151 521 8089.

Inside: screw to inside end

Outside: screw to outside end

Not sure? Show all of this type

3. Your matches 👇

Showing: Start again

Doing more than one door?

A keyed alike set lets one key open every door, even if the cylinders are different sizes.

Filter and sort (0)
Sort by
Hide filters
View as
Filter and sort
Clear all

Frequently Asked Questions

Remove the cylinder (undo the retaining screw in the door edge, turn the key slightly and slide it out), then measure from the centre of the cam/fixing hole to each end. You'll get two figures, for example 40/50, sold in 5mm increments. Measure each side separately — cylinders are often offset, not symmetrical.

TS007 3-Star is the highest British Kitemark rating for euro cylinders, independently tested against snapping, bumping, drilling, picking and plug extraction. A 3-star cylinder gives full protection on its own; alternatively a 1-star cylinder paired with 2-star security handles achieves the same 3-star total.

The euro profile shape is standard, so any euro cylinder fits any euro multipoint lock — but lengths vary widely. The correct size sits flush or protrudes no more than 3mm past the handle: a cylinder sticking out further is much easier to snap, even if it's anti-snap rated.

Key both sides prevents anyone unlocking the door by reaching through a letterbox or broken glass. A thumb turn lets you escape quickly without hunting for keys — often preferred for fire safety and rental properties. If the cylinder sits close to glazing or a letterbox, key both sides is generally the safer pick.

We recommend the Avocet ABS. It's TS007 3 star and Sold Secure Diamond, and if it's snapped, the cam locks against the internal locked side so it can't be operated by hand. As an Avocet Elite Centre we cut ABS keys from your code at our Aintree counter. The Yale Platinum Ultra, our best-selling alternative, is also TS007 3 star and Sold Secure Diamond, with dimple keys and a key code card, but it can't be keyed alike.

Yes — the euro profile is universal, so a replacement cylinder of the correct length works with any euro-profile multipoint mechanism, whatever the door brand. You only need the right measurement and your preferred type (key both sides, thumb turn or half cylinder).
