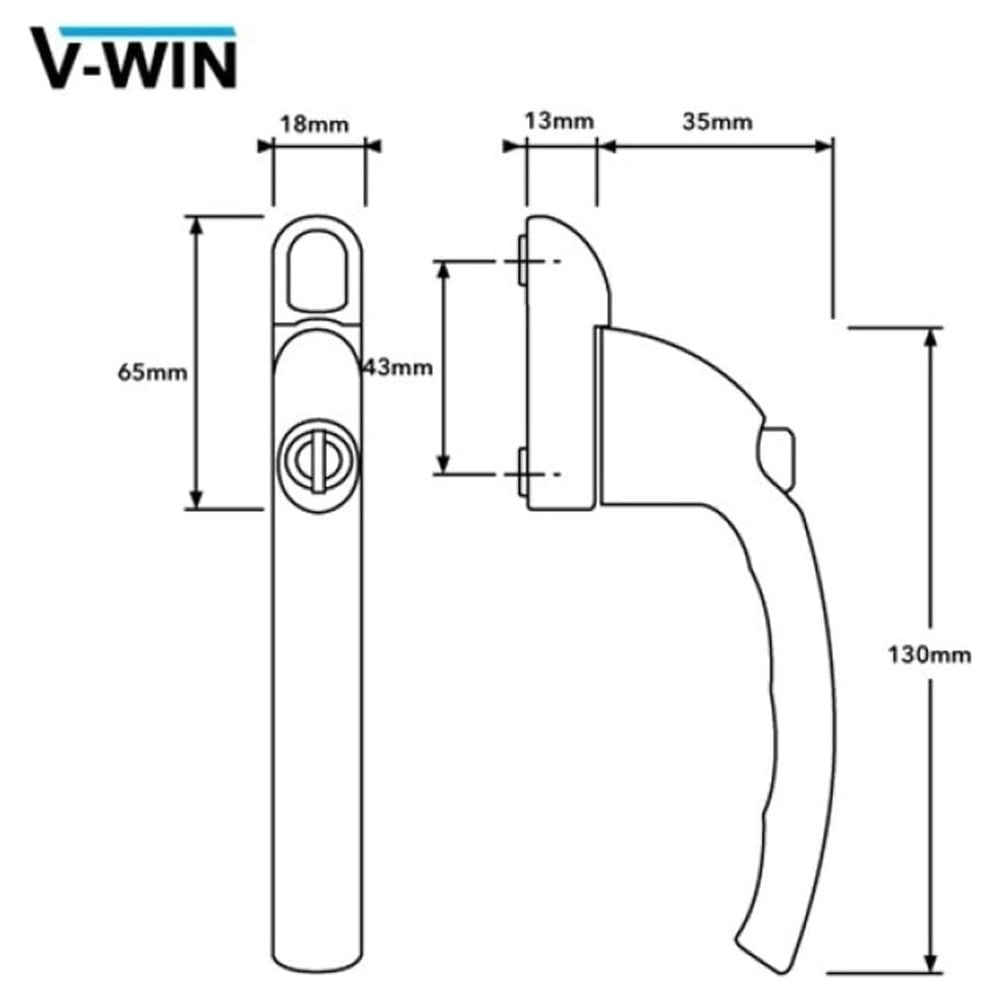

Which window handle do I need? Open the window and look at the back of the handle. A square spindle going into the frame means an espag handle, the standard on modern uPVC windows. A nose that hooks over a wedge on the frame means a cockspur handle, found on older windows; cockspur handles are left or right handed. Espag spindles vary from about 10mm to 55mm, so our Home Secure universal handle comes with five spindles (9, 15, 30, 45 and 55mm). It fits inline espag handles with screws 43mm apart.
Order by 2pm for same-day dispatch · Not sure? Email us a photo of your handle
Replacement uPVC window handles for double glazed windows. We stock espag (inline and offset), cockspur and tilt and turn handles, mostly key-locking, in white, chrome, black and gold.
Which window handle do I need?
Open the window and look at what the handle drives:

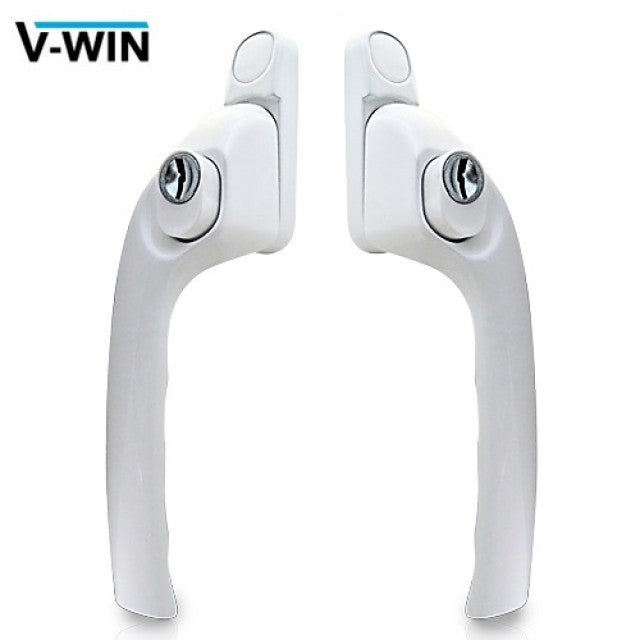

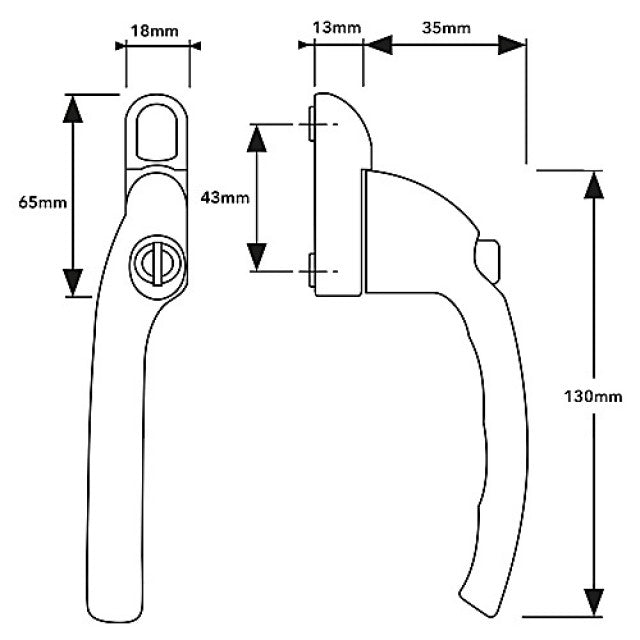

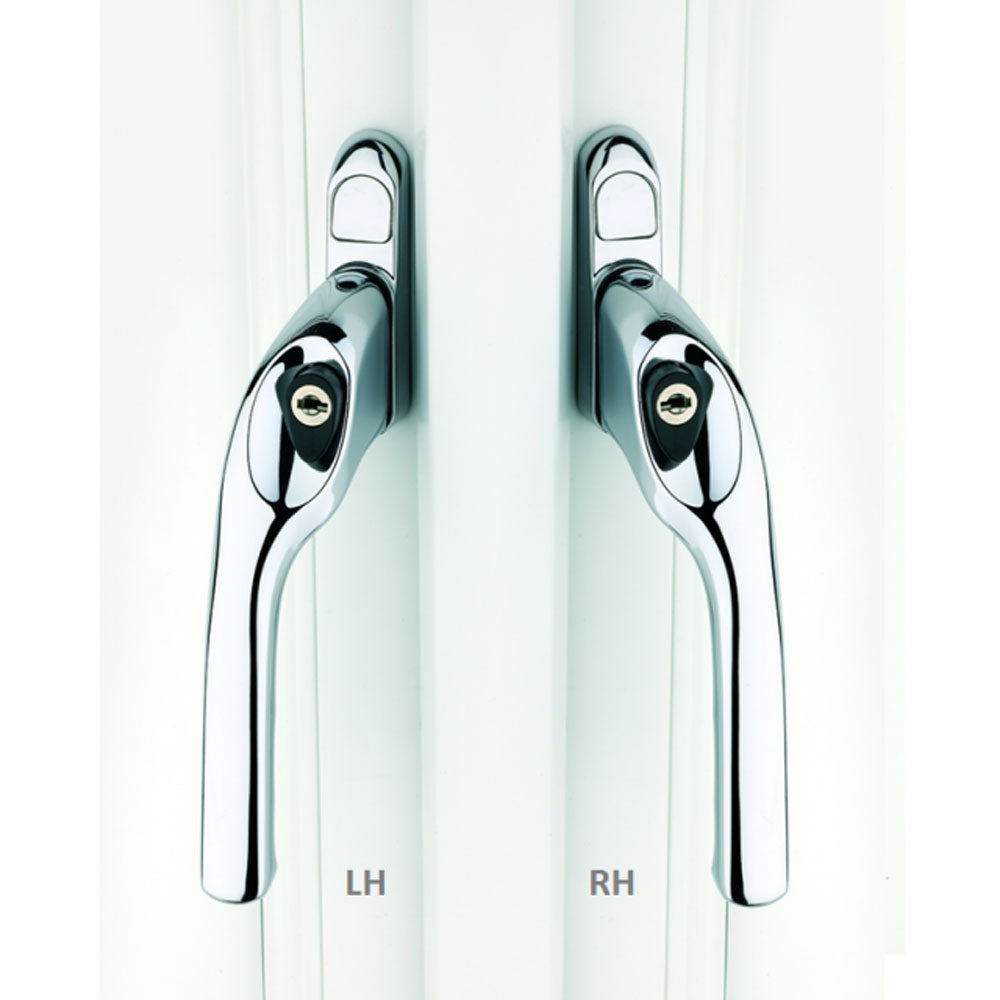

Espag handle: a square spindle goes from the handle into the window and drives a locking rail. This is the standard on modern uPVC windows. Shop espag window handles

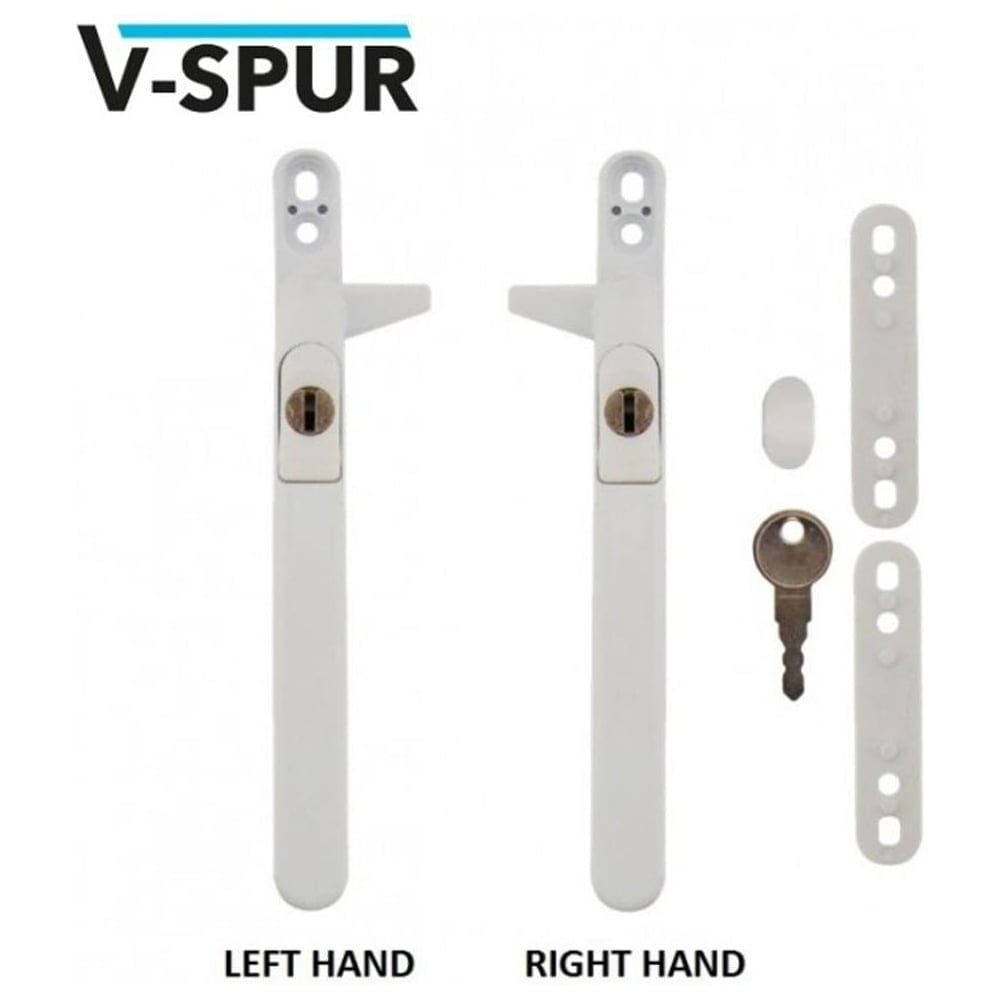

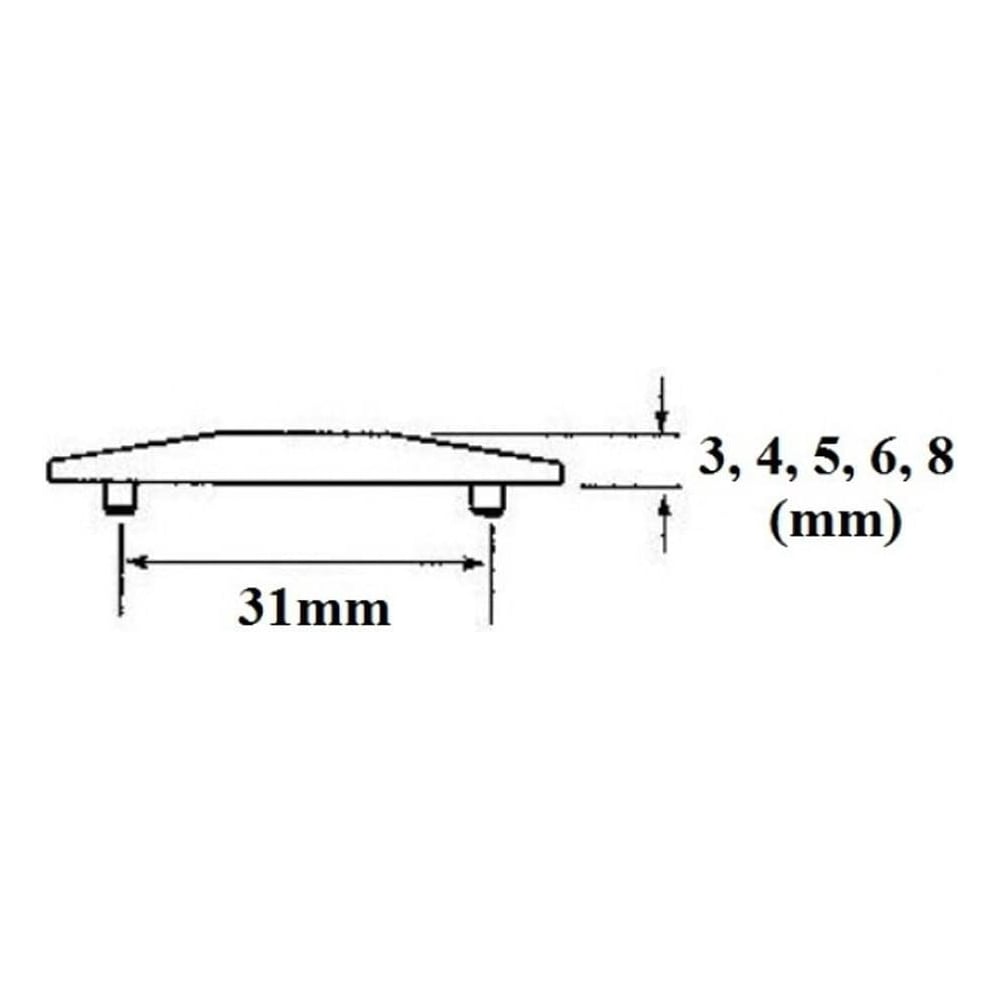

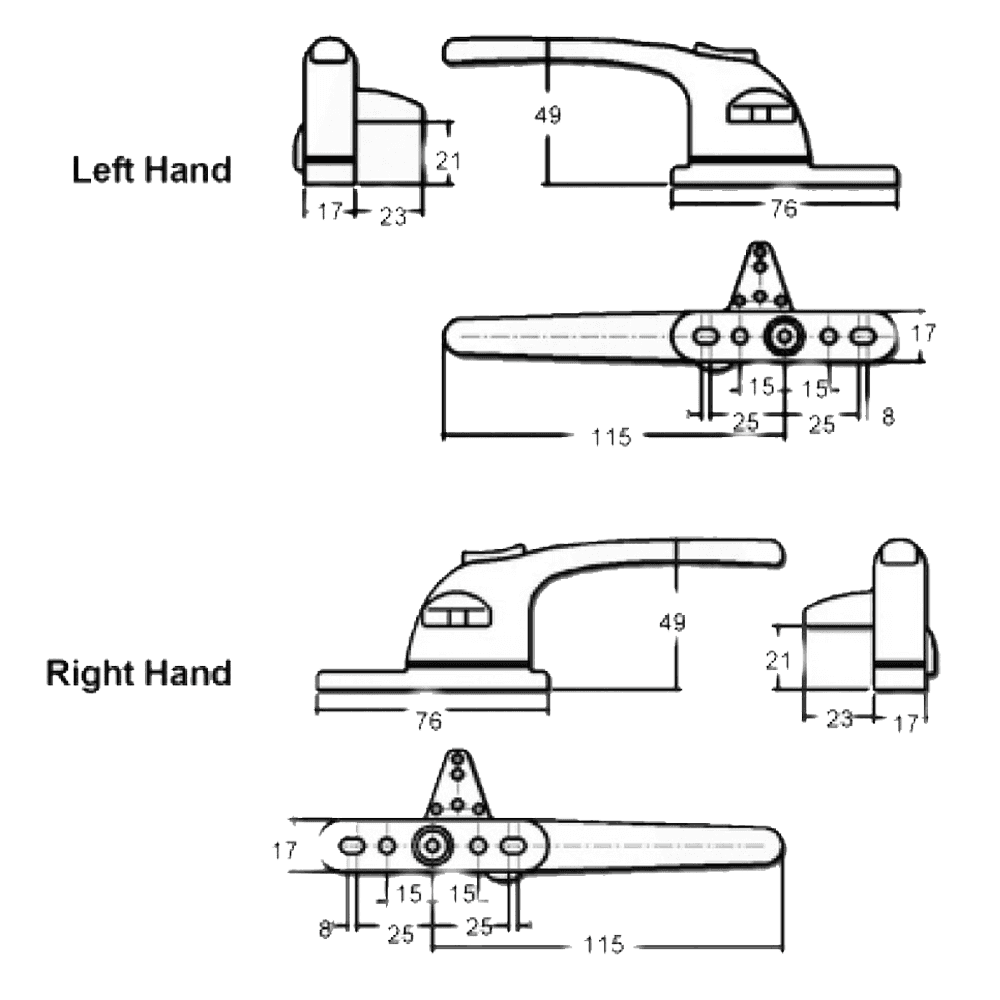

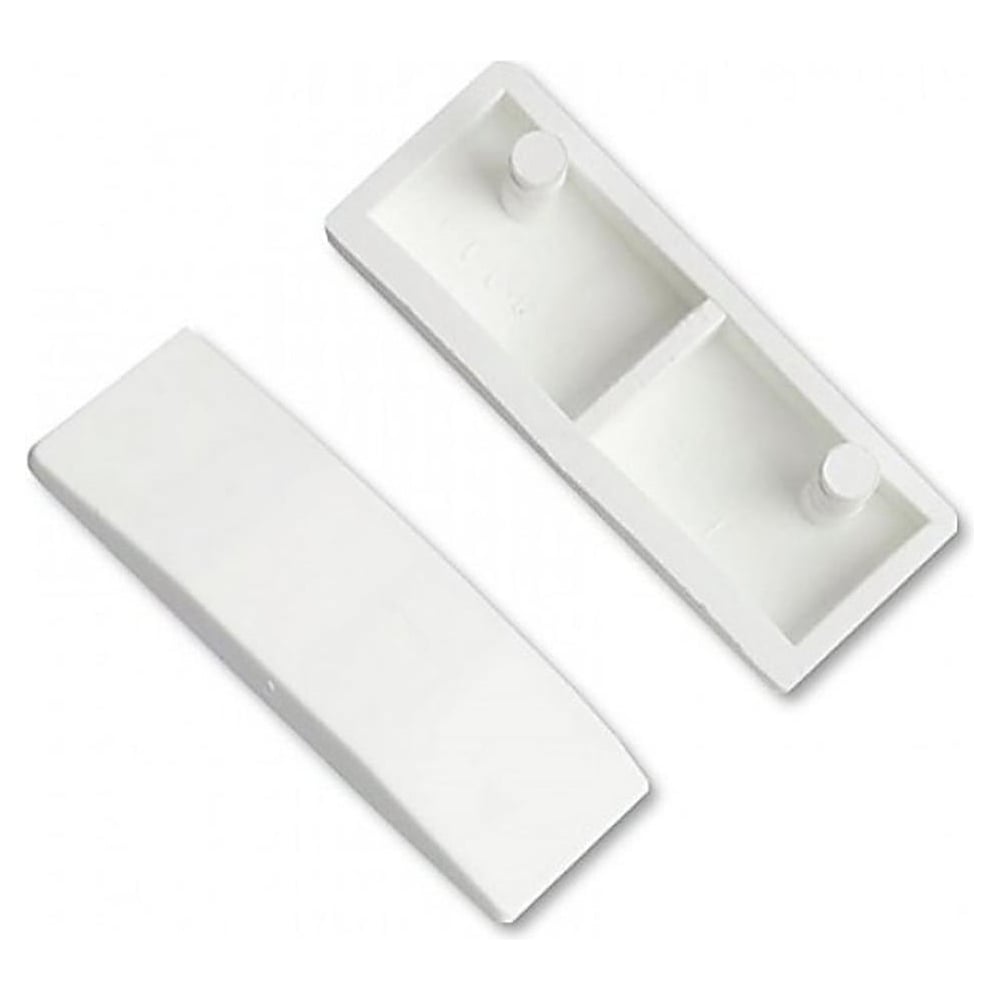

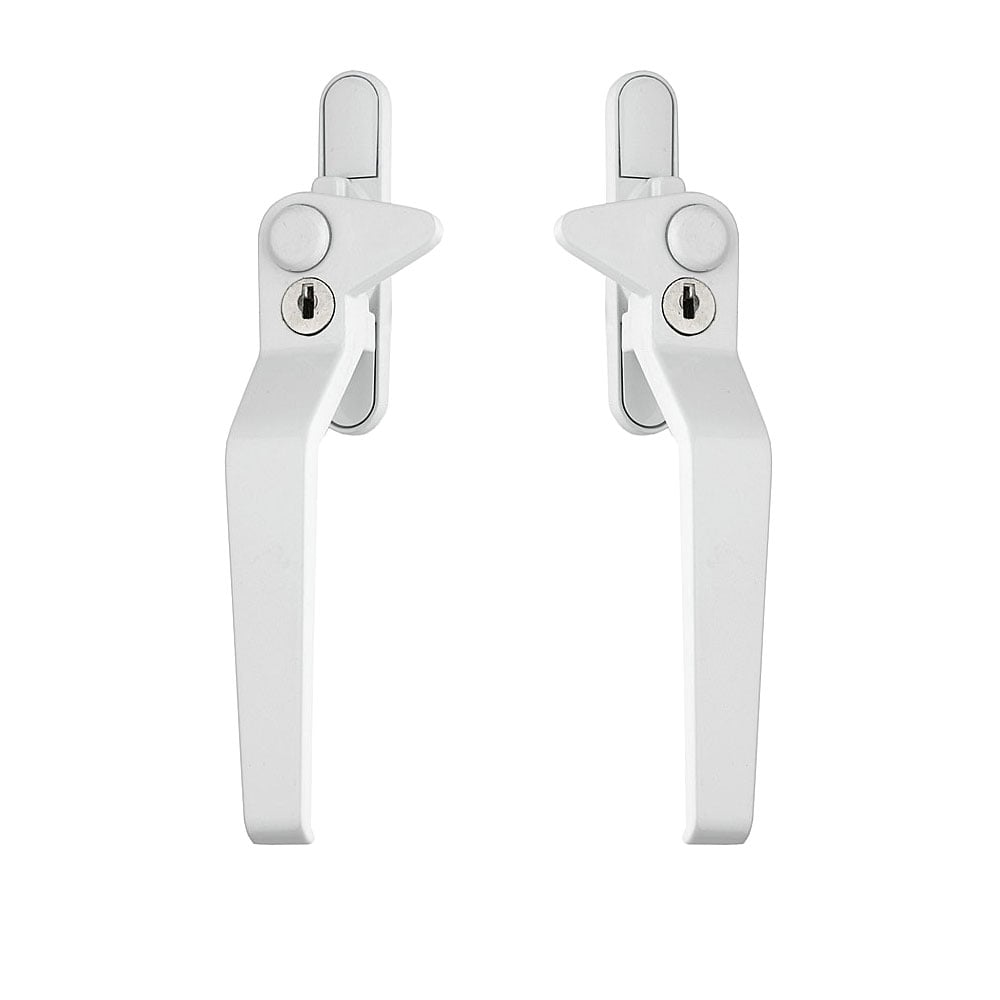

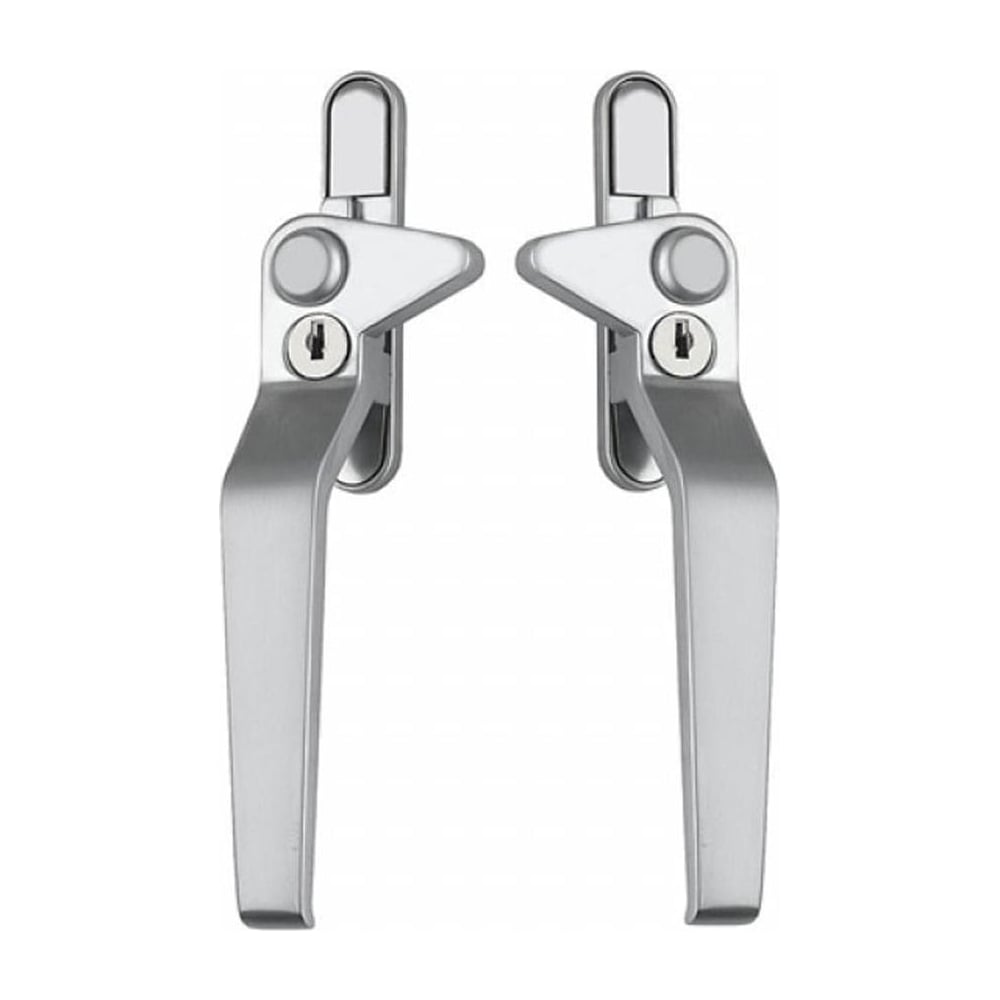

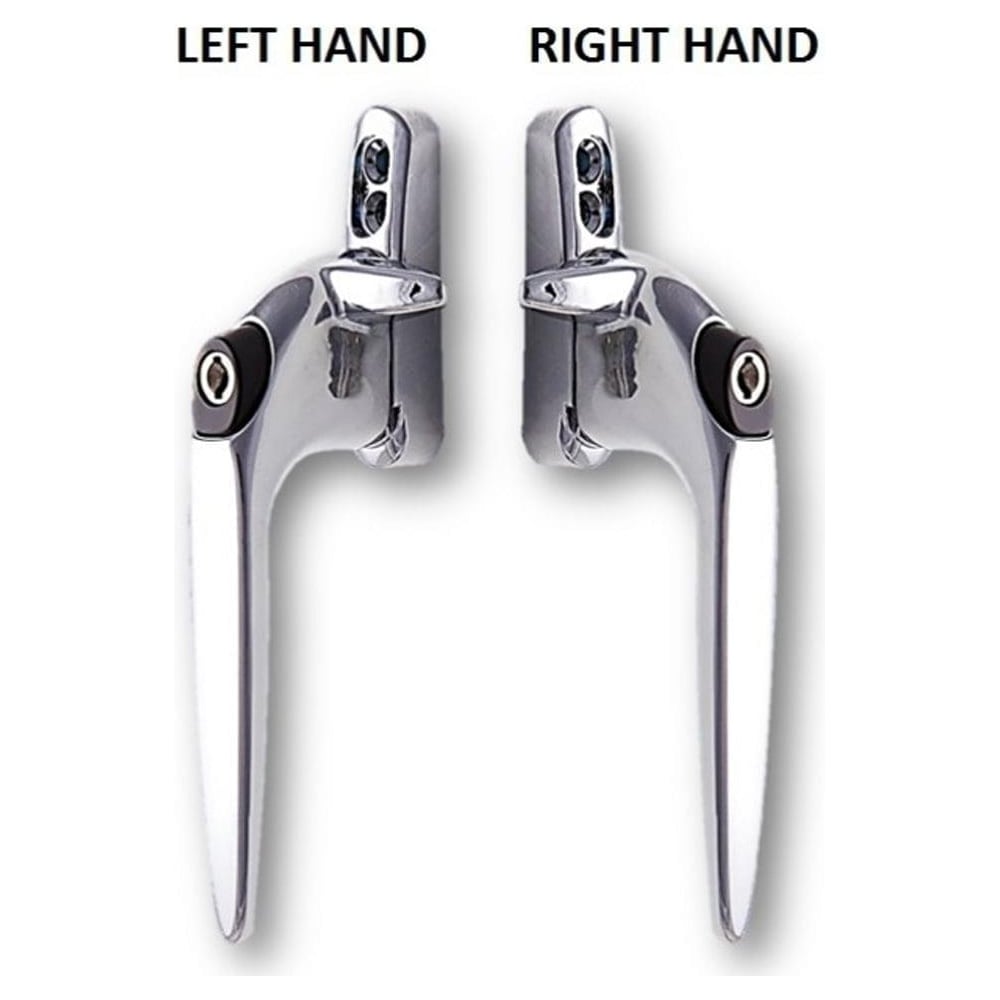

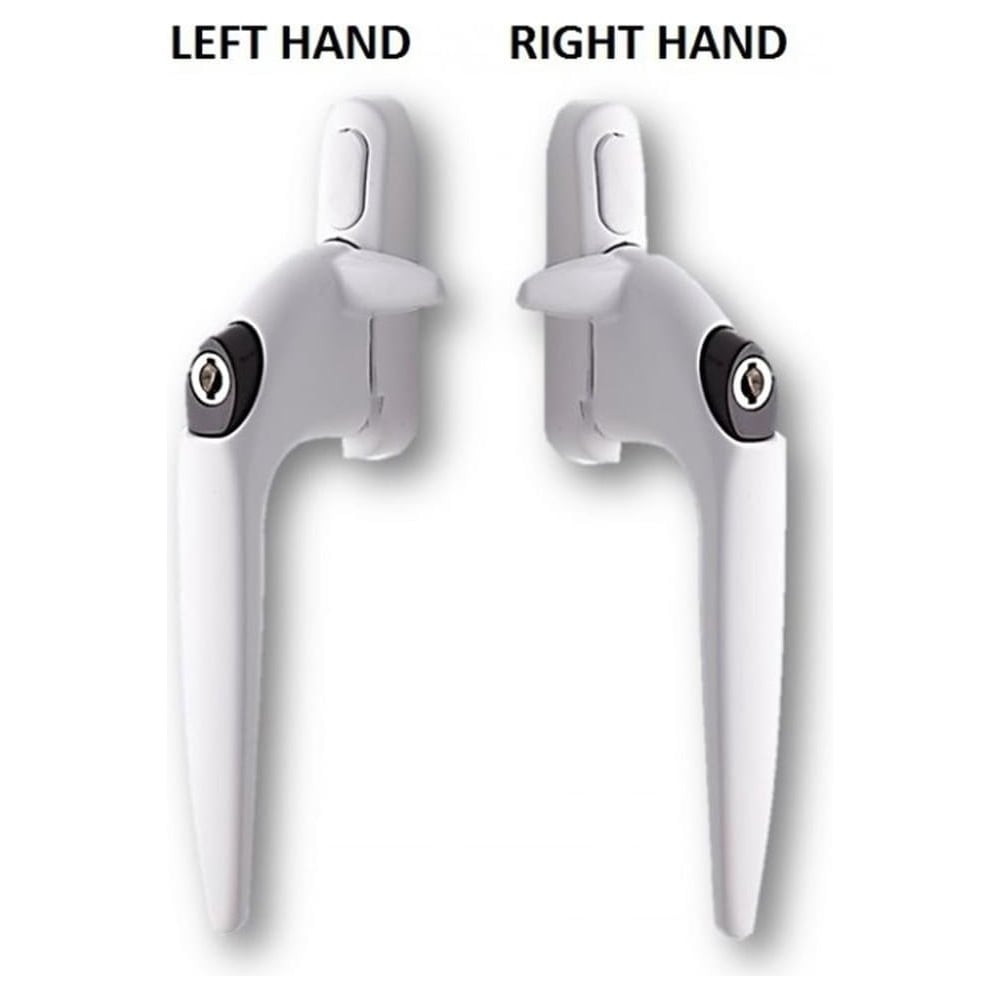

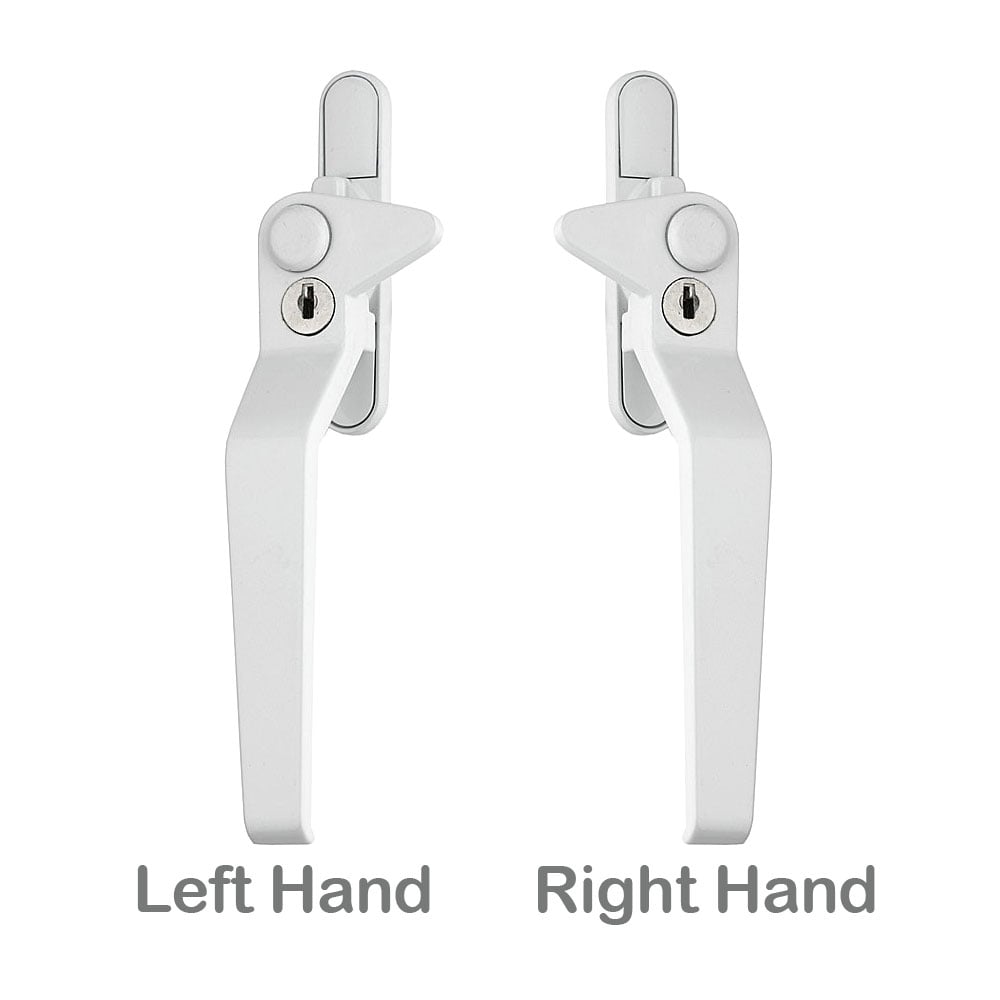

Cockspur handle: a nose on the handle hooks over a wedge on the frame. Found on older uPVC and aluminium windows. Cockspur handles are left or right handed. Shop cockspur window handles
Tilt and turn handle: for windows that tilt inwards to vent and also swing fully open. Shop tilt and turn handles
Are uPVC window handles a standard size?
Partly. Of the roughly 9,177 window handles we sold on our website in the last 12 months, 57% were espag (95% of those inline) and 42% were cockspur. Under 1% were tilt and turn.

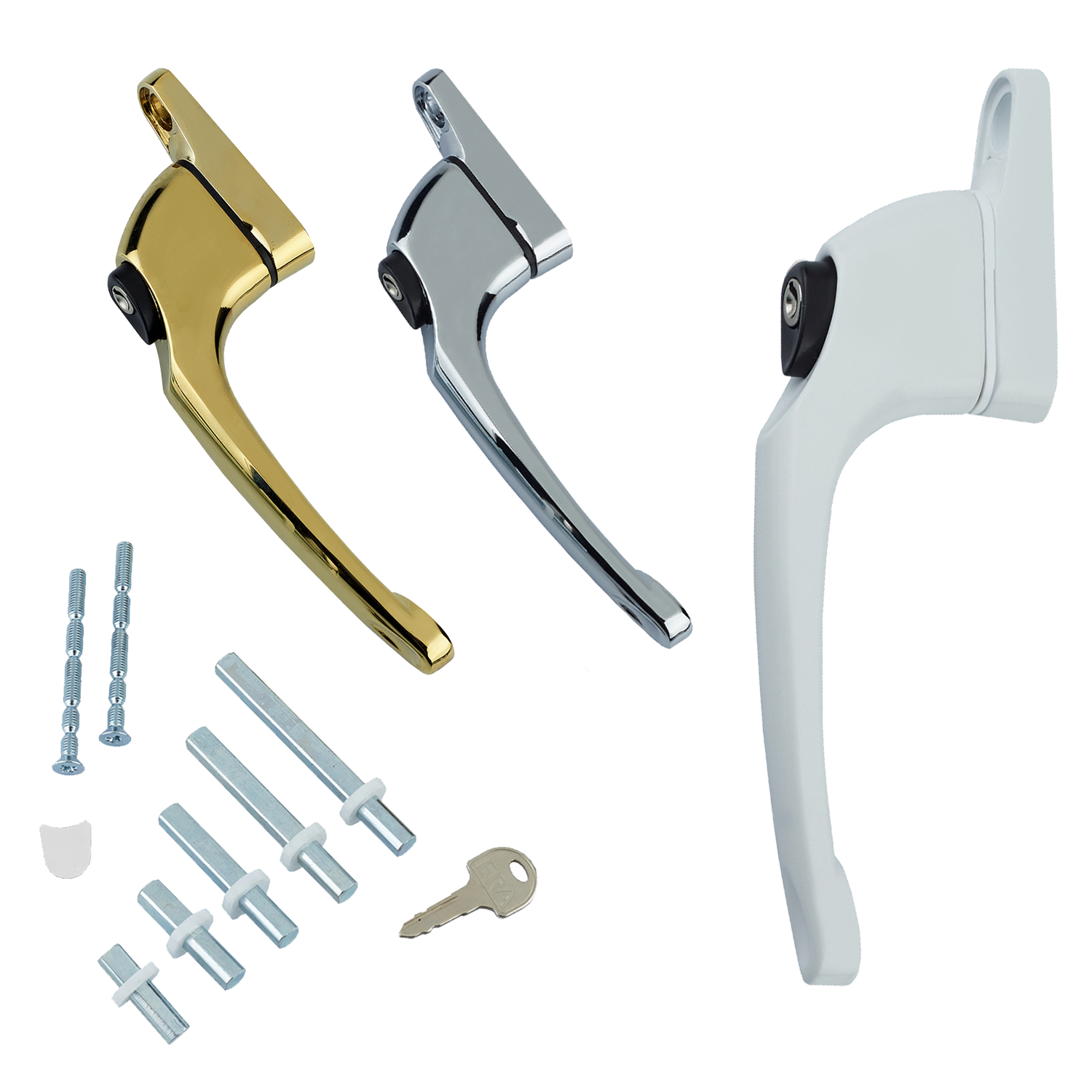

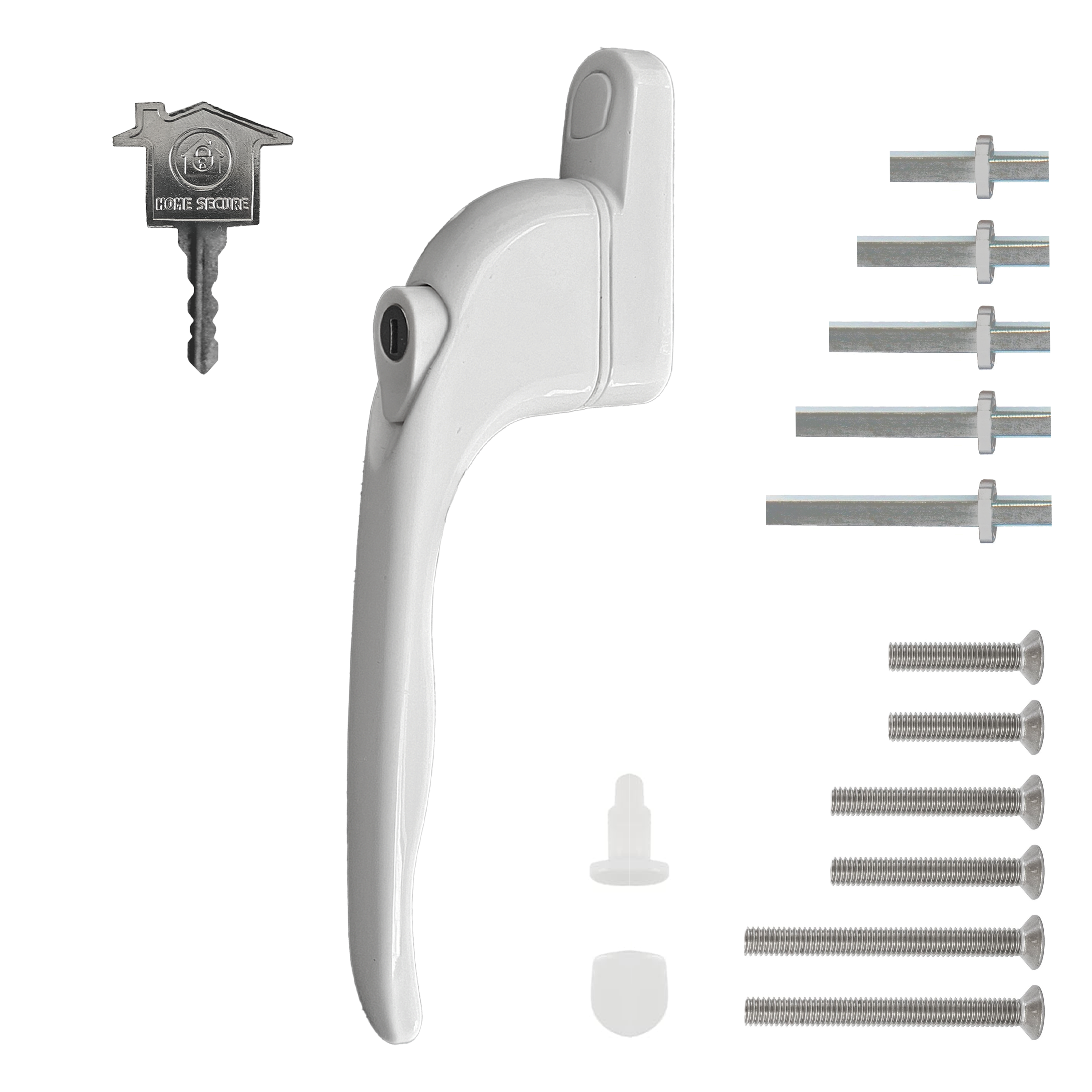

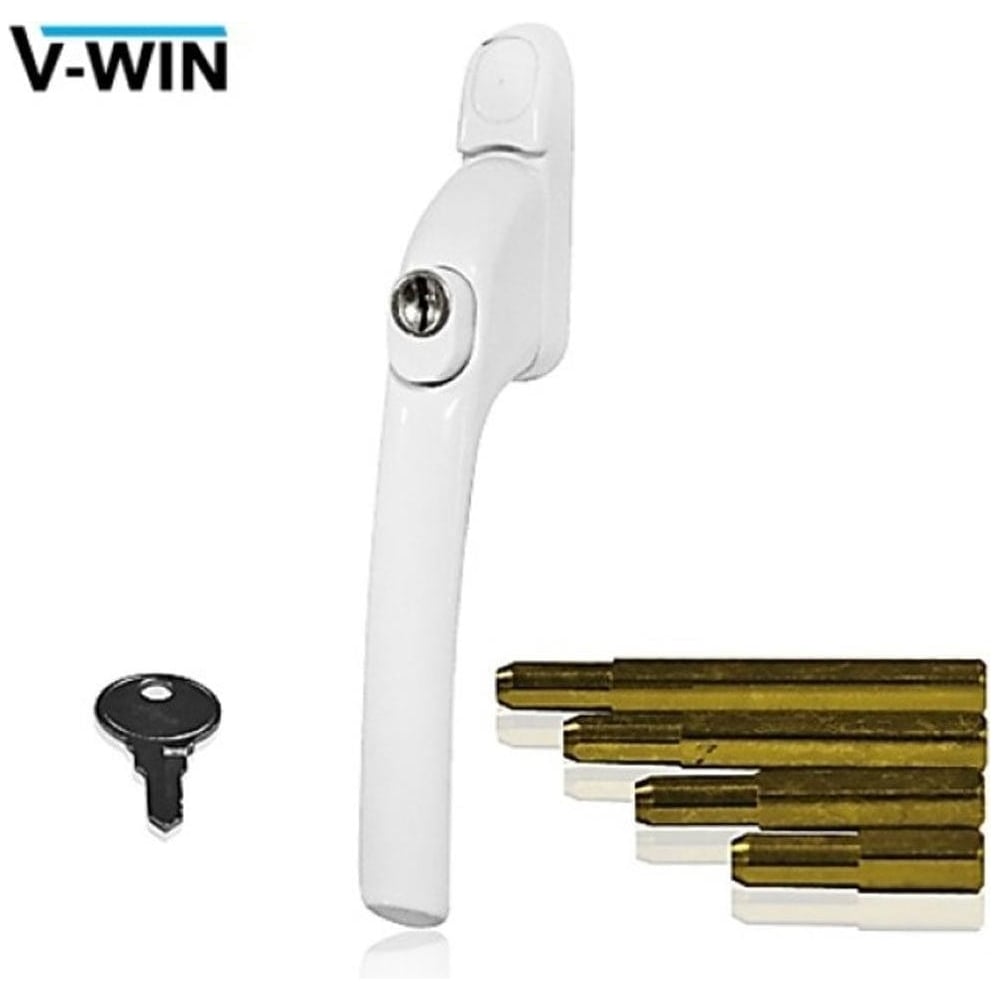

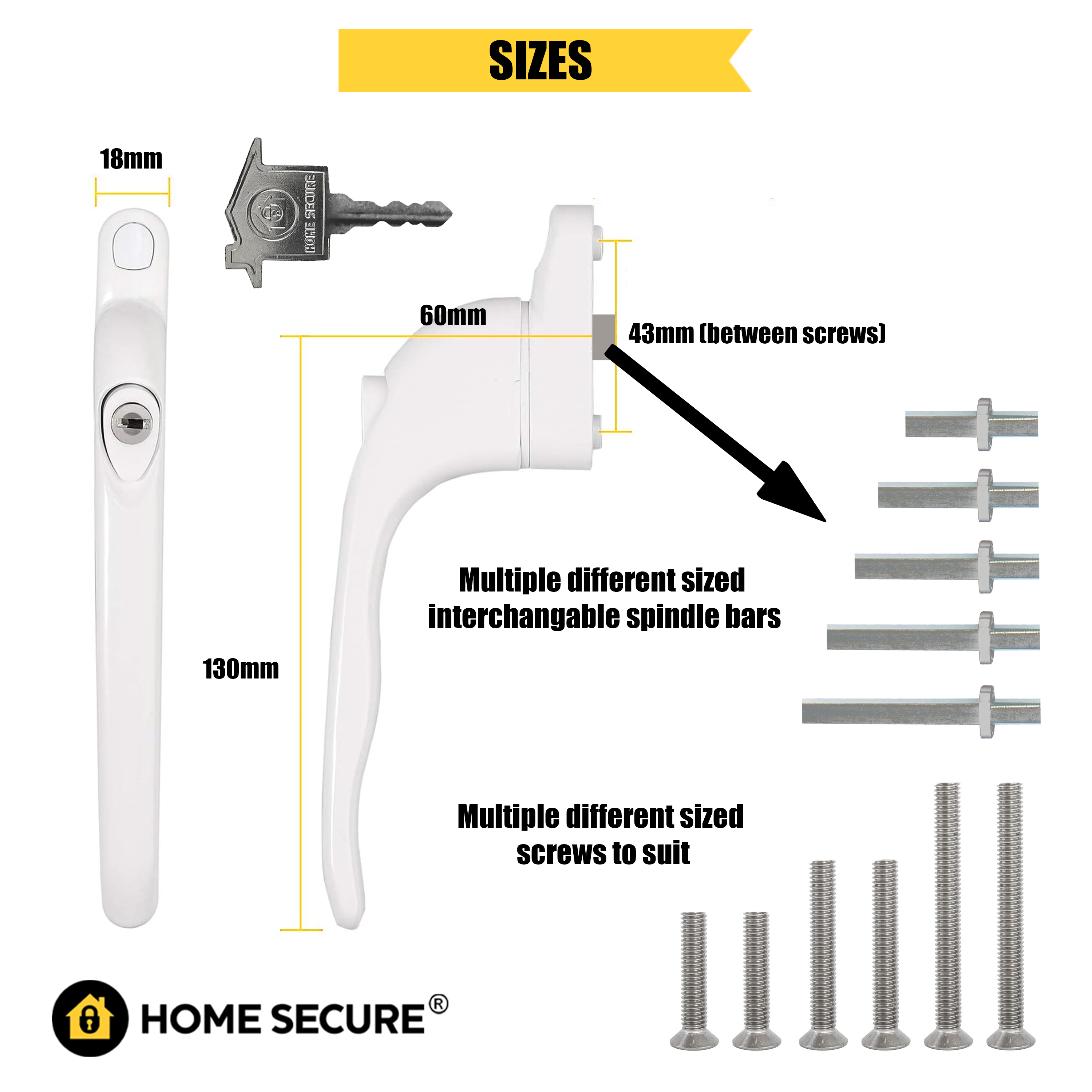

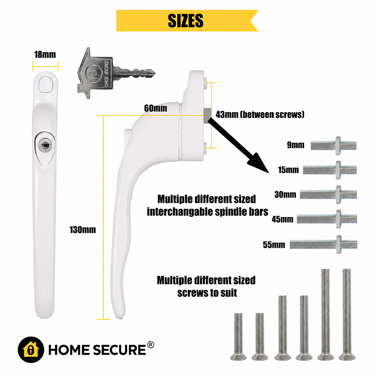

Espag: the spindle length varies from about 10mm to 55mm. Multi-spindle handles such as the Home Secure universal window handle come with 5 spindles (9, 15, 30, 45 and 55mm), so you don't need to measure.

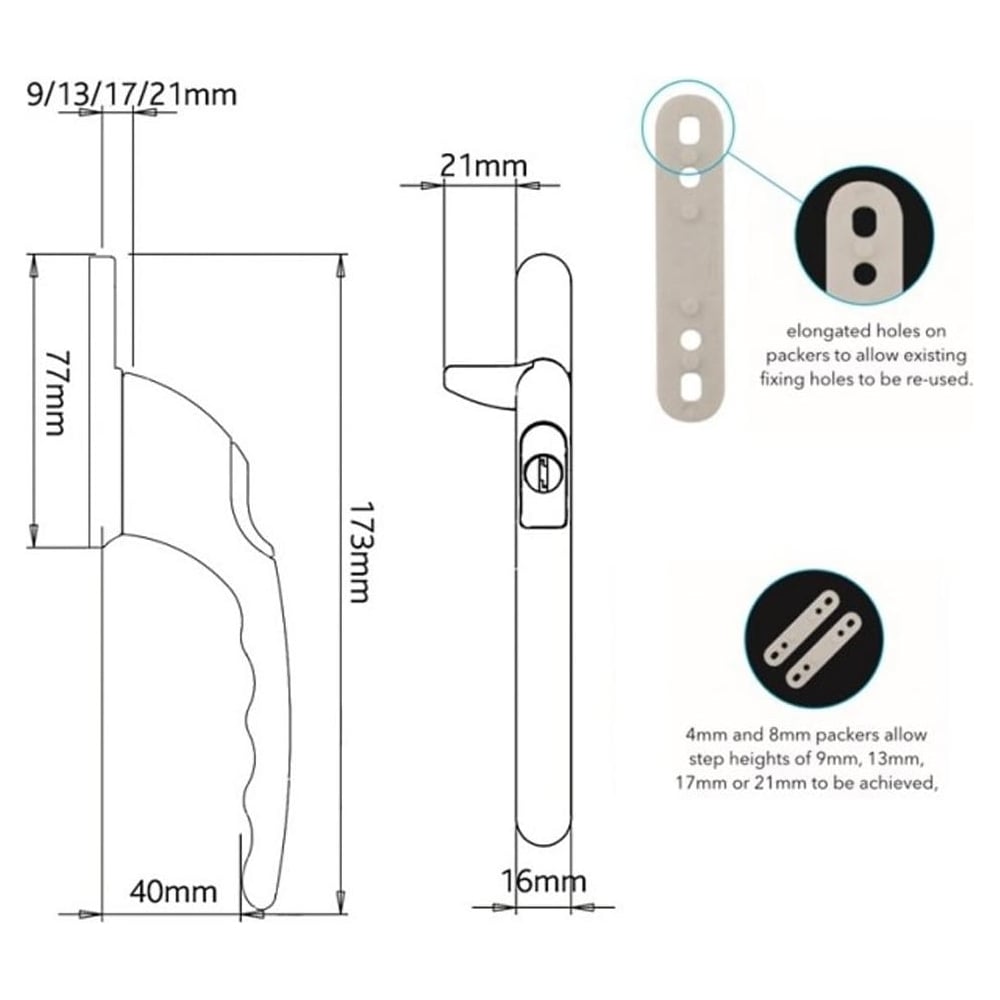

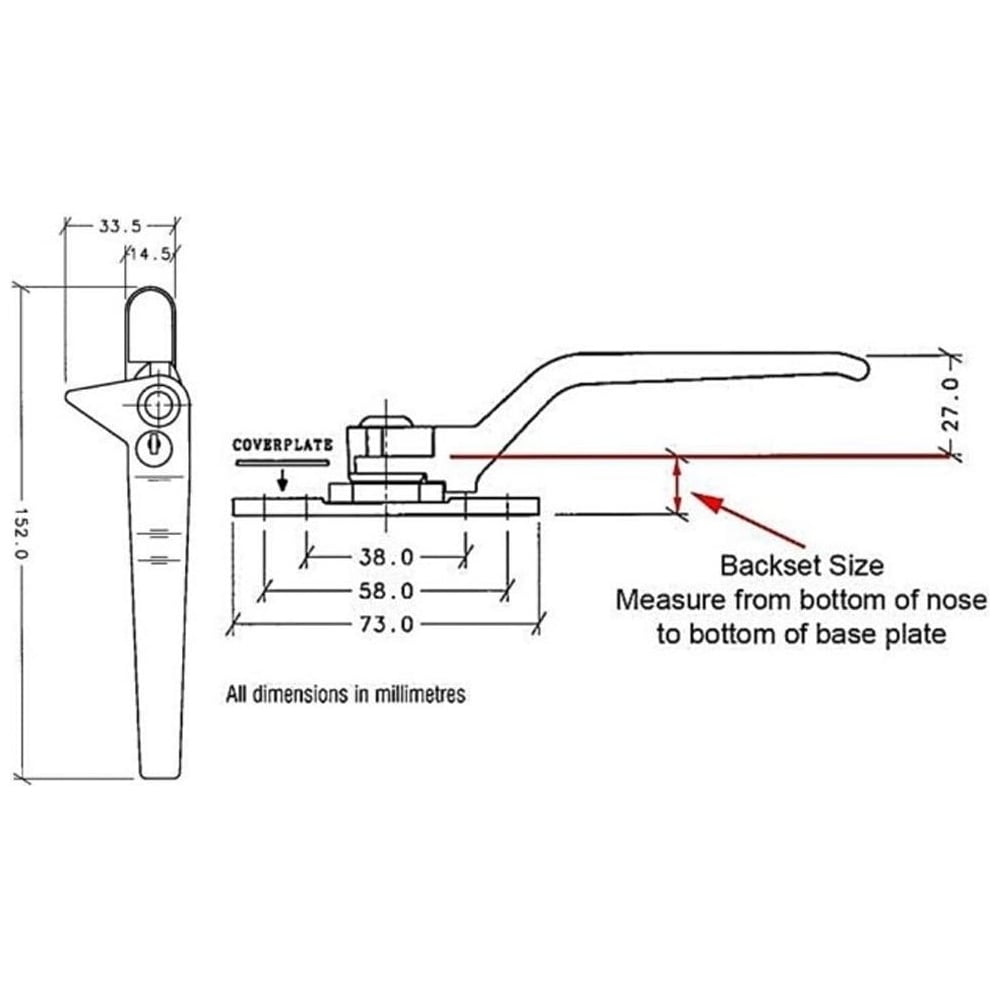

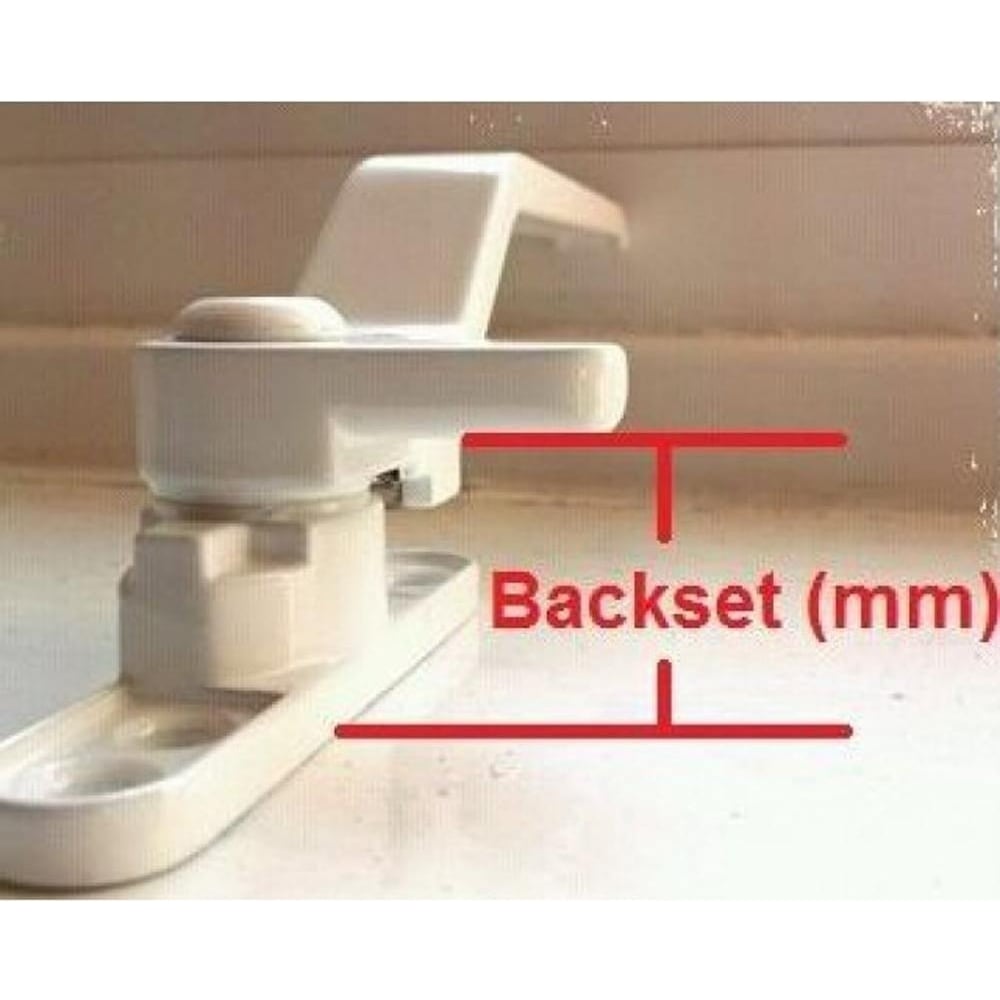

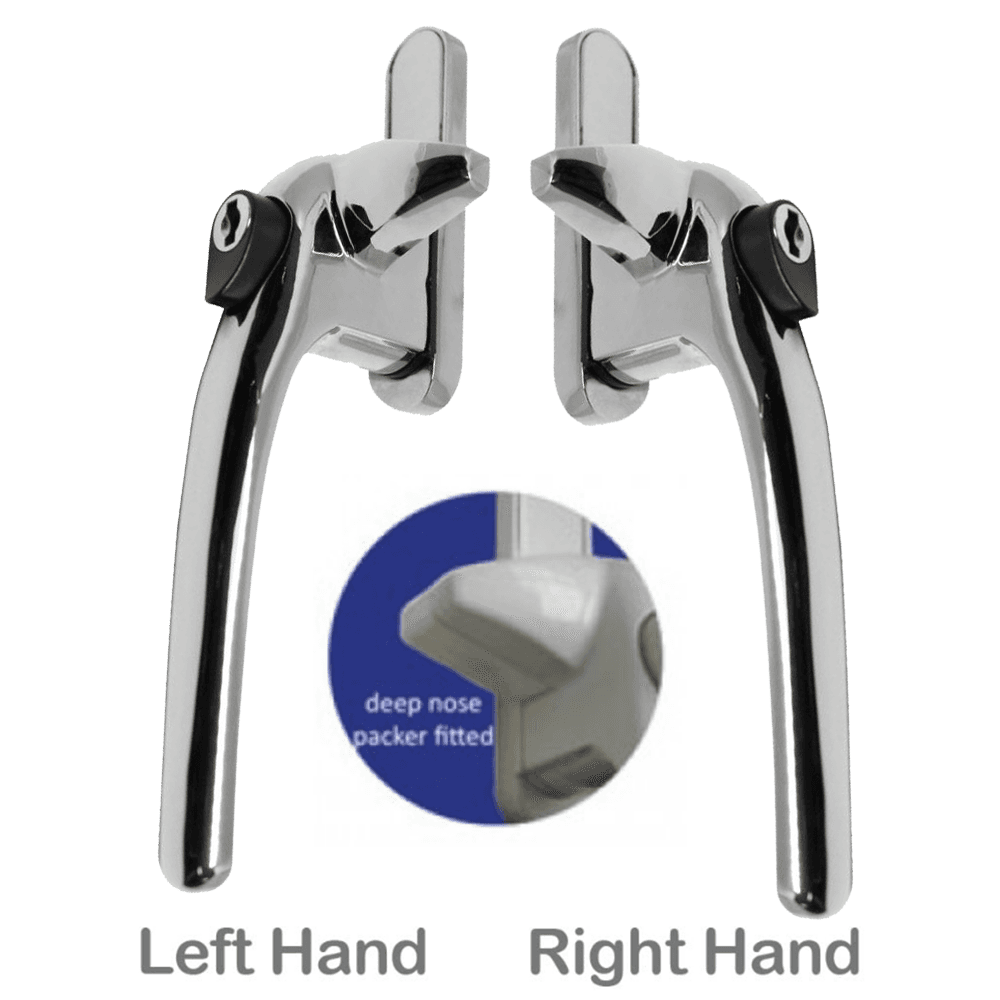

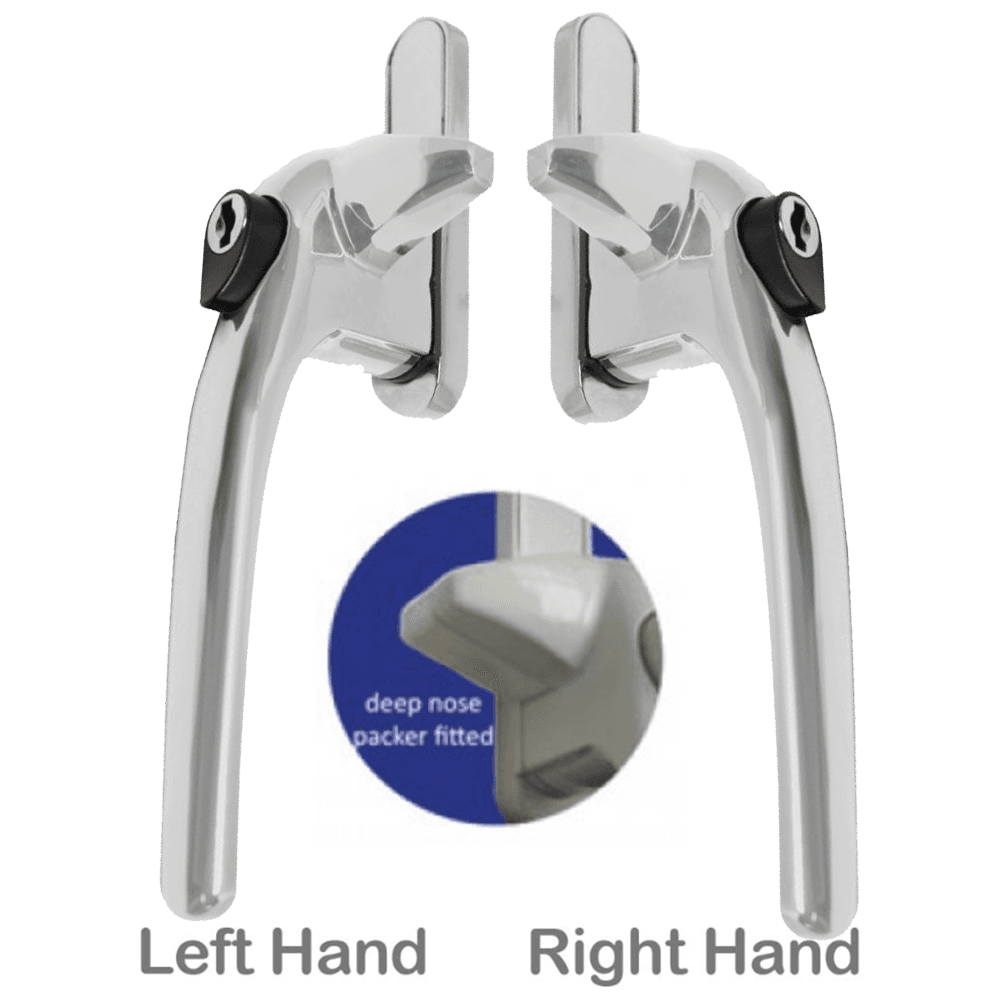

Cockspur: the step size matters. Of the cockspur handles we sold, 37% were 9mm, 25% were 15–17mm and 38% were 21–22mm.
Most handles are held by two screws under the cover caps, so a replacement is usually a five-minute DIY job. Our guide on how to replace a uPVC window handle shows each step. If the handle turns but the window won't lock, the problem may be the mechanism rather than the handle: see window mechanisms.
Not sure which you have? Email us a photo, or bring the old handle to our Aintree trade counter.
Open the window and look at the mechanism the handle drives: a square spindle protruding from the handle base means an espag handle; a flat nose that clips over a wedge on the frame means a cockspur. Tilt and turn windows use their own longer-throw handles. Type first, then measurements.
An espag handle turns a square spindle that drives a locking rail inside the window — standard on modern uPVC. A cockspur handle simply hooks a projecting nib over a striker on the frame — common on older uPVC and aluminium windows. They're not interchangeable, so identify yours before buying.

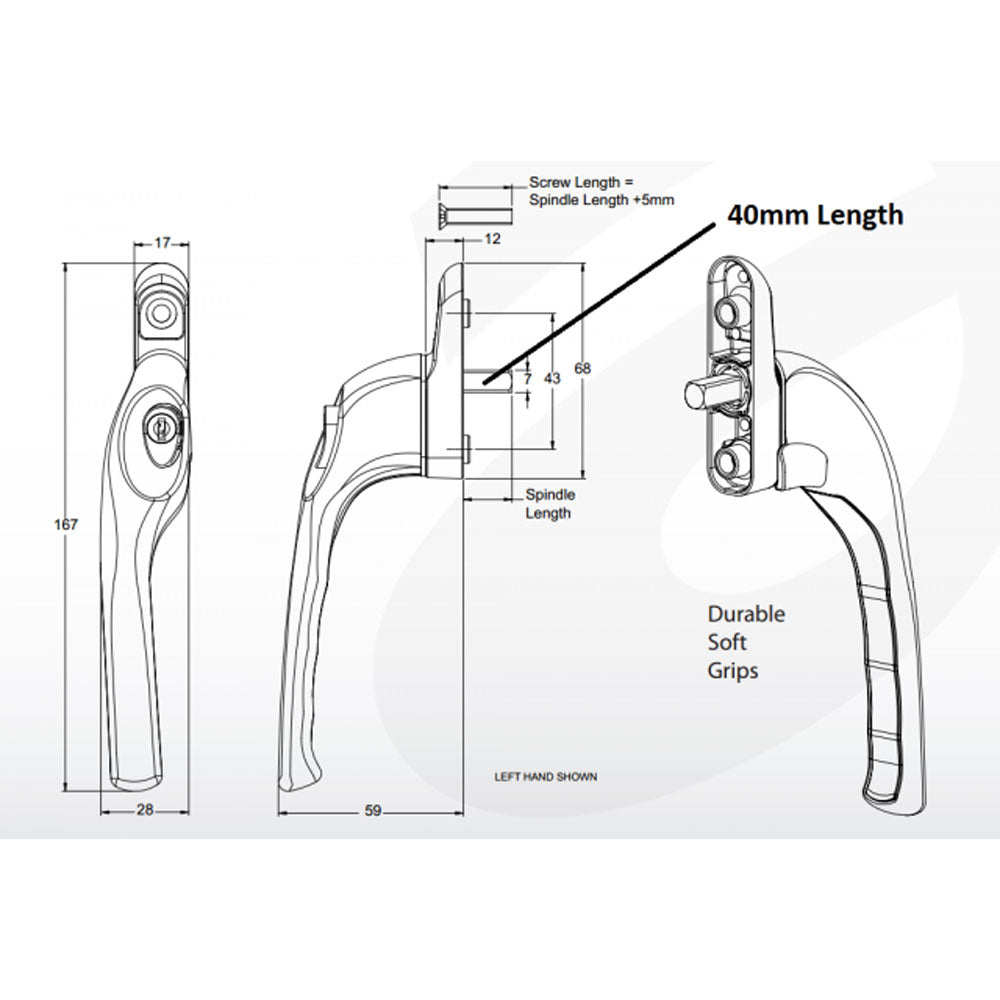

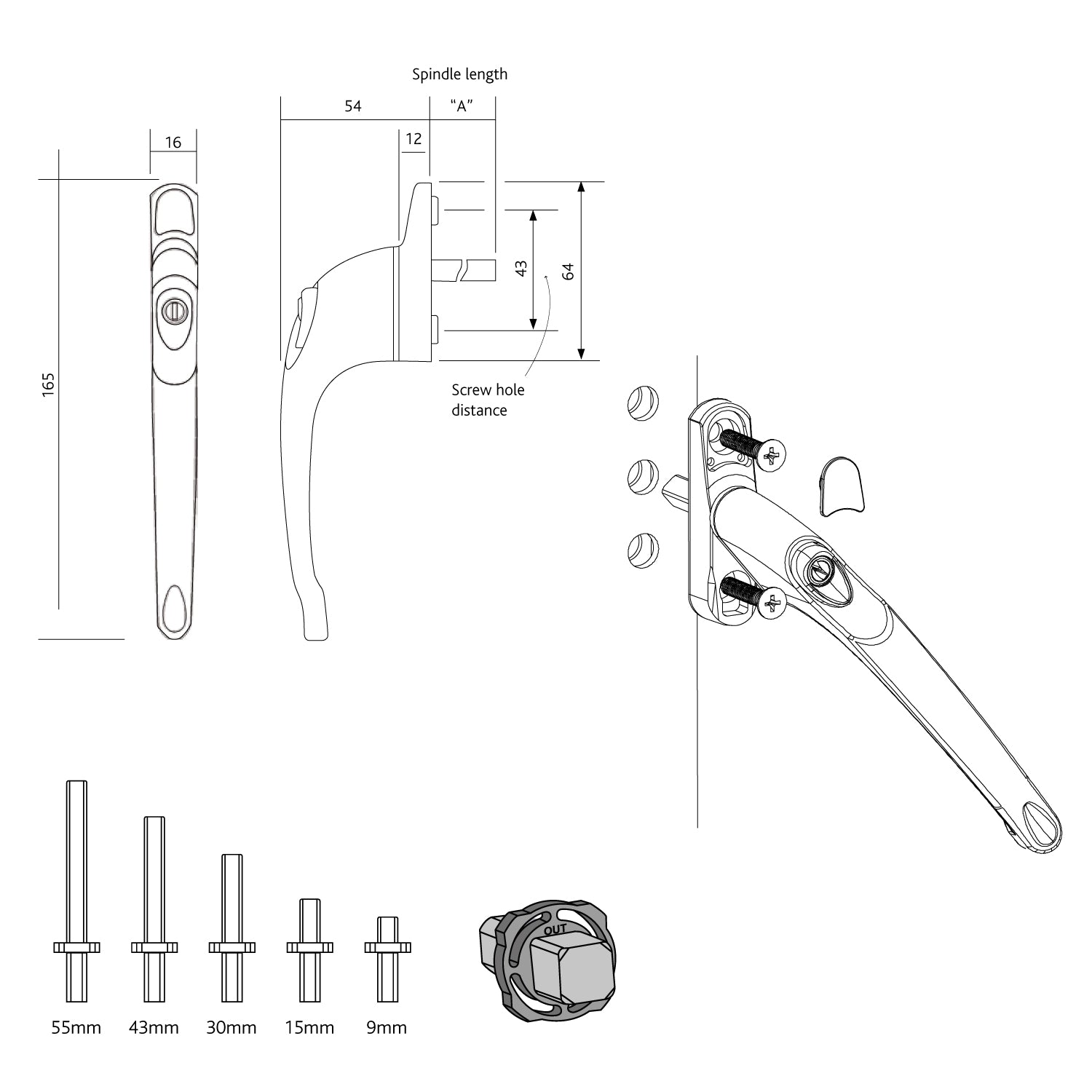

Remove the handle (two screws under the caps) and measure the square spindle from the base of the handle to its tip. Lengths vary from about 10mm to 55mm. Our Home Secure universal handle comes with five spindles (9, 15, 30, 45 and 55mm), so you can try them until one fits instead of measuring.

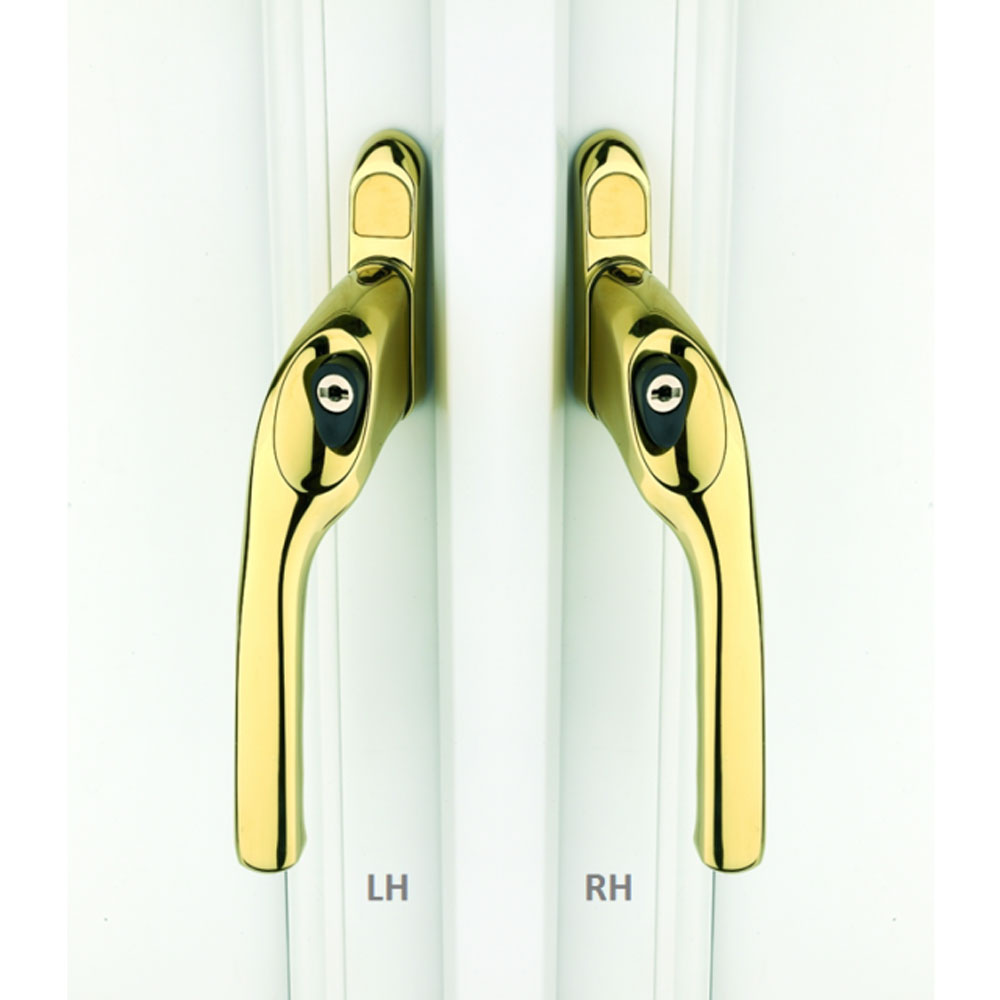

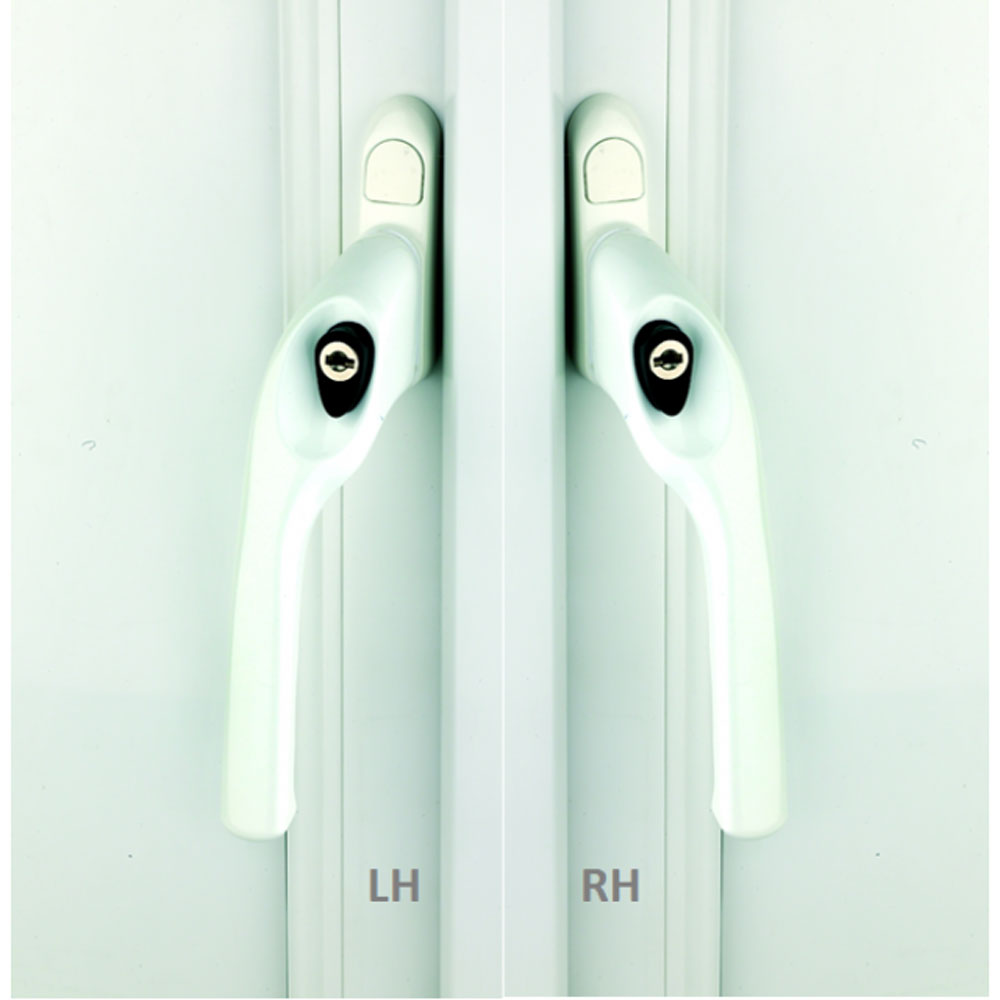

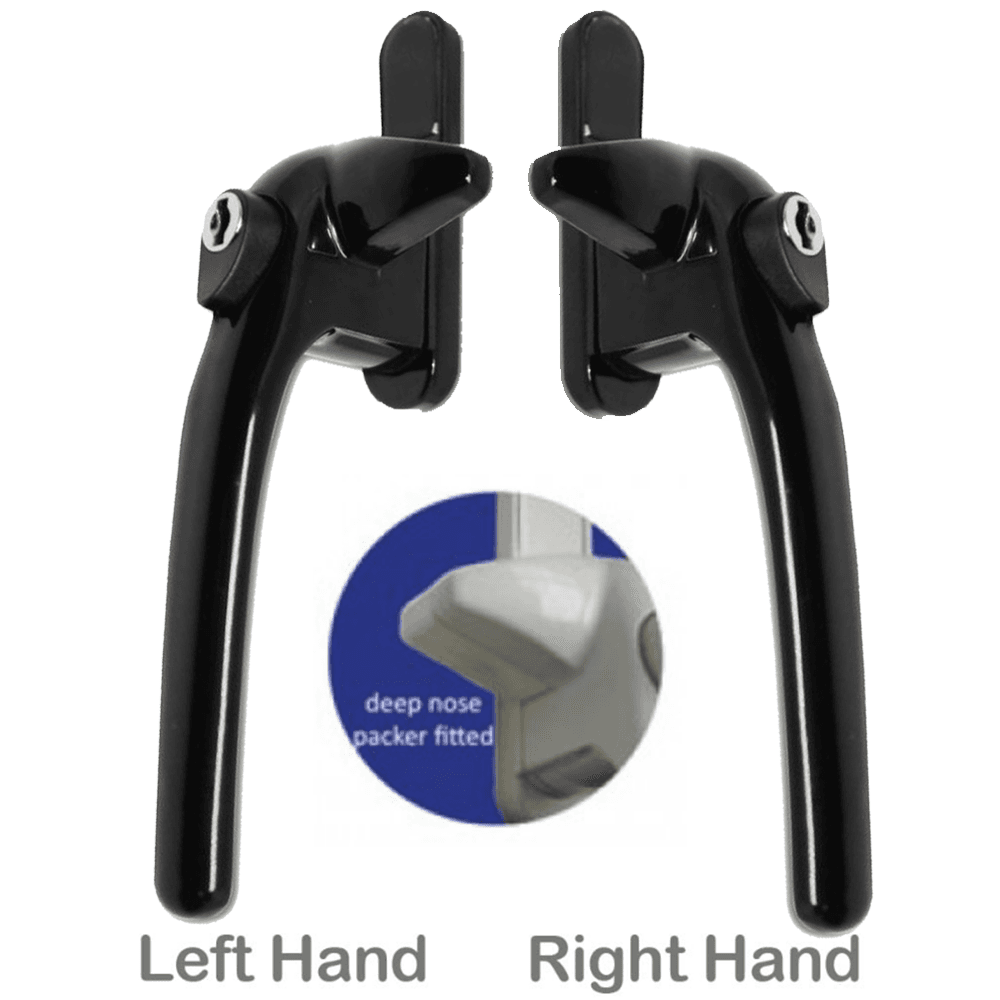

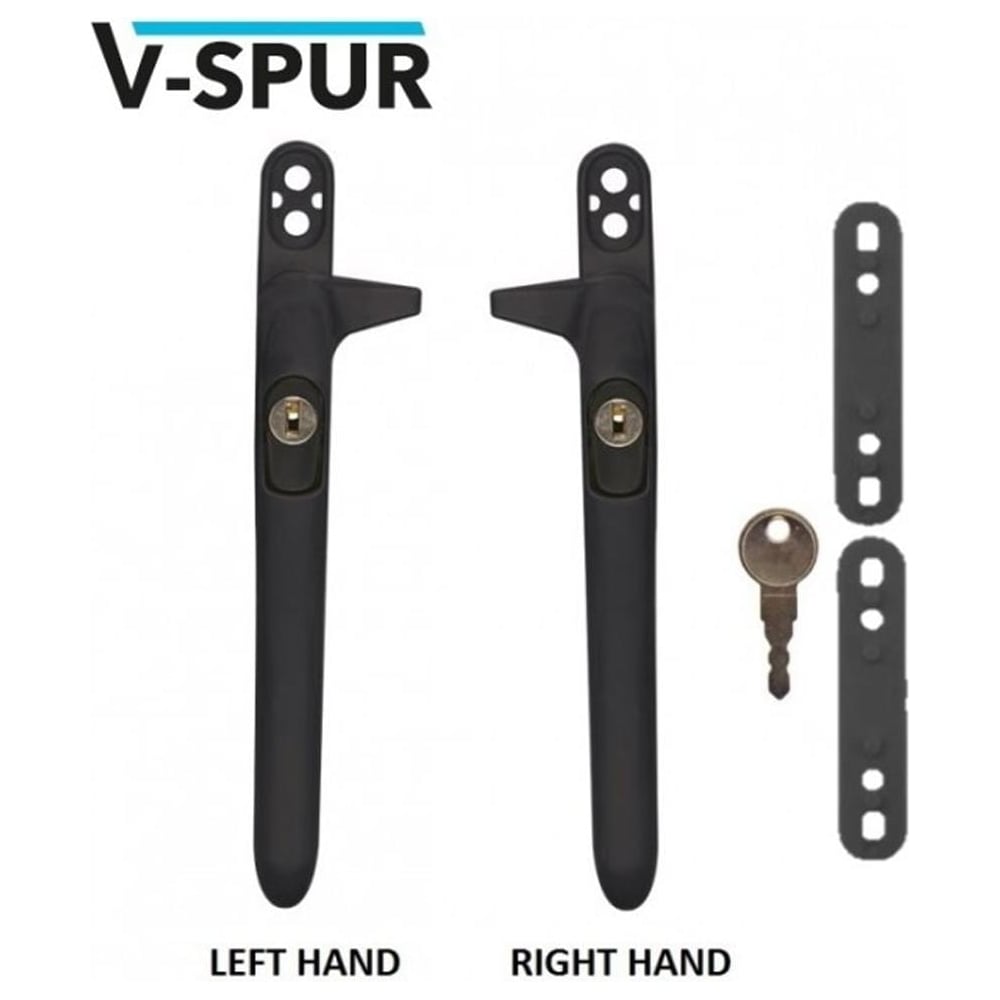

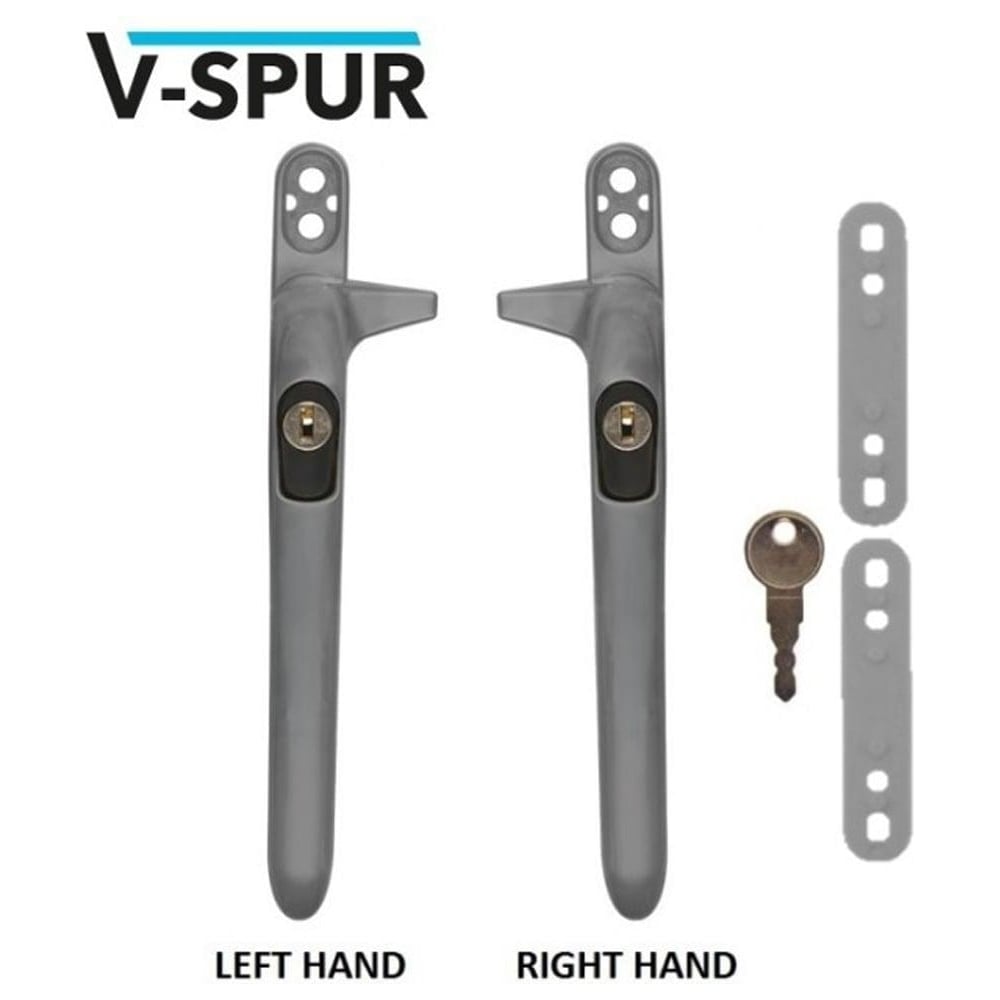

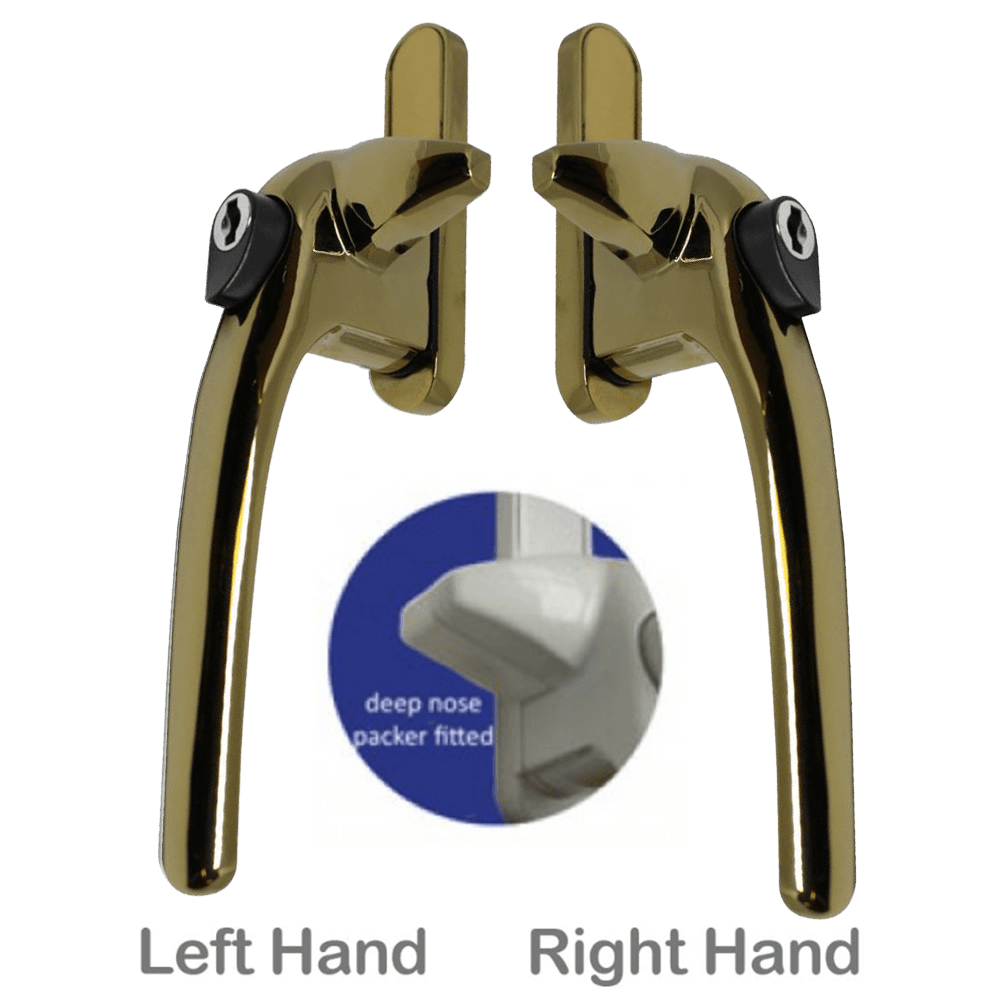

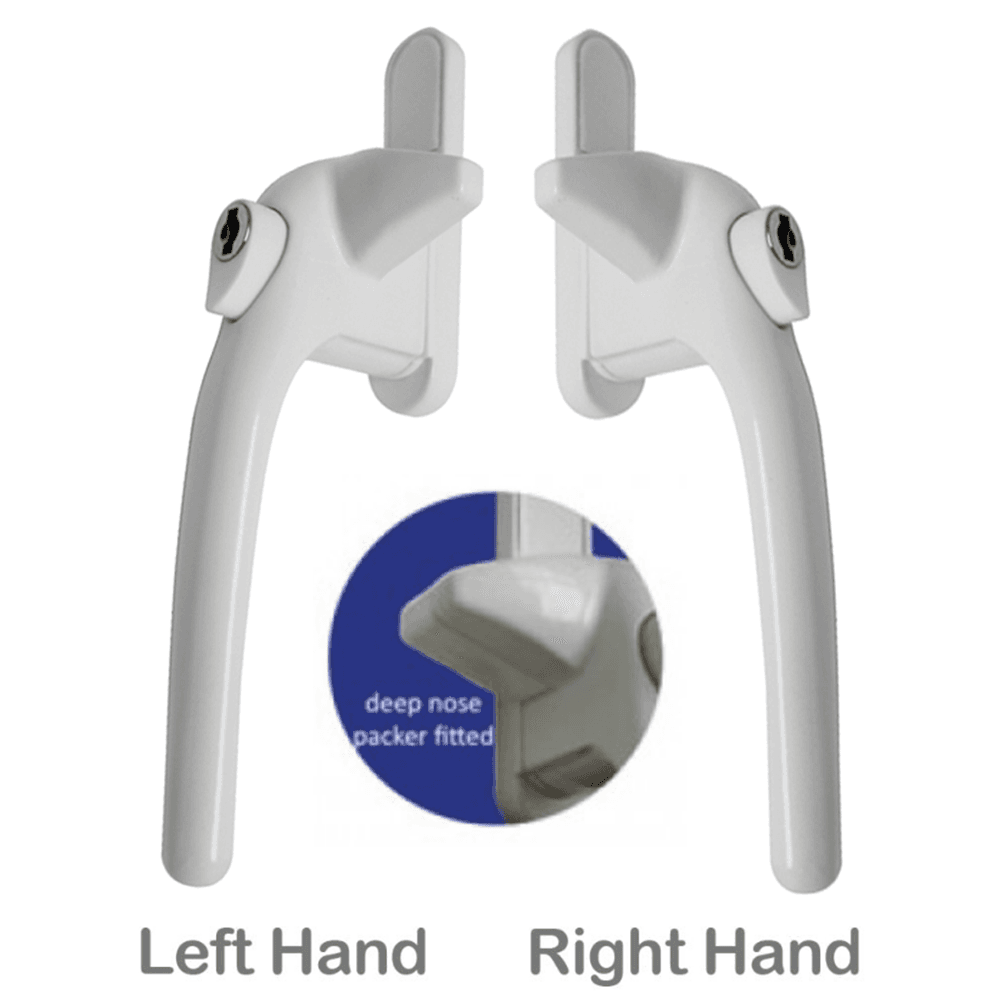

Cockspur handles are handed: hold the handle as it sits on the window and note which way the nose points. Espag handles such as our Home Secure universal handle fit left- or right-opening windows.
A key-locking handle can't be turned without the key, which adds security on windows that can be reached from outside and stops children opening them. Each of our locking window handles comes with a key.
