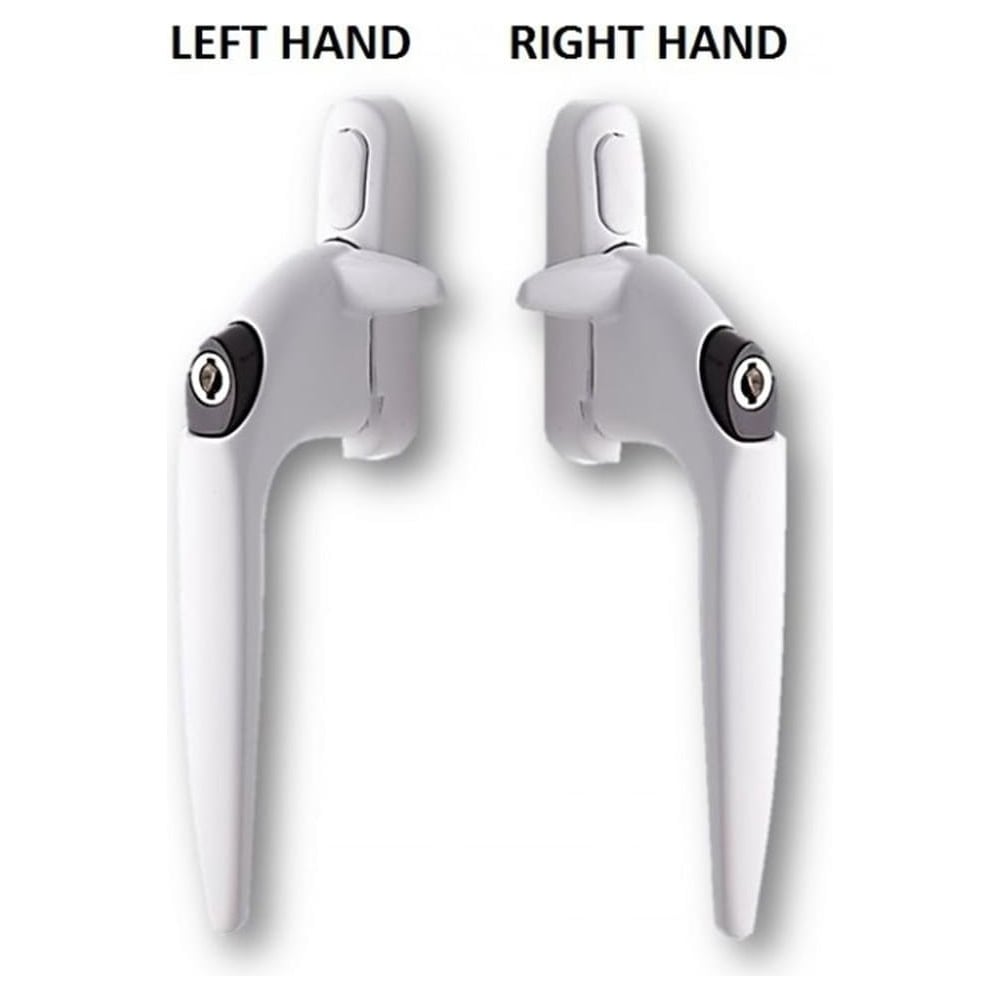

Two window handles, one labeled 'LEFT HAND' and the other 'RIGHT HAND', both in white color, with a keyhole visible on each handle.

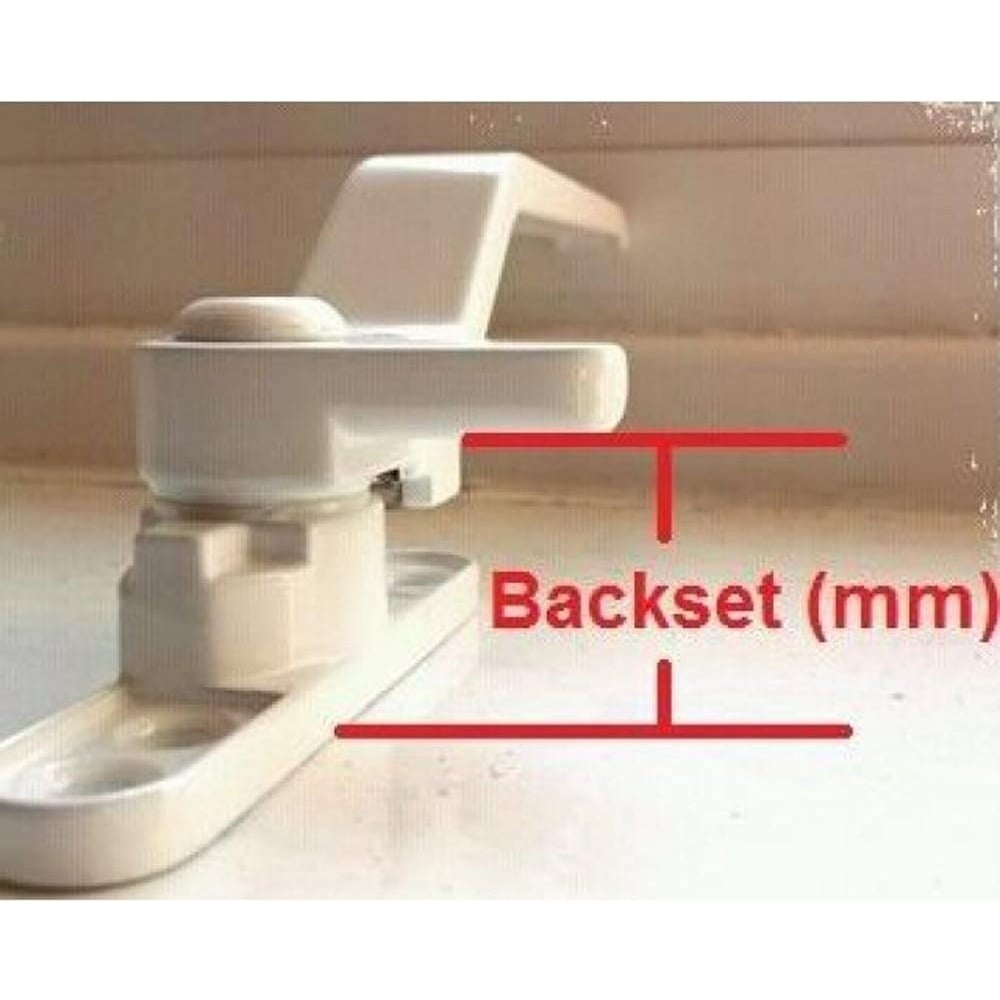

Side view of a white window handle showing how to measure the backset (distance from the front of the base plate to the center of the handle spindle).

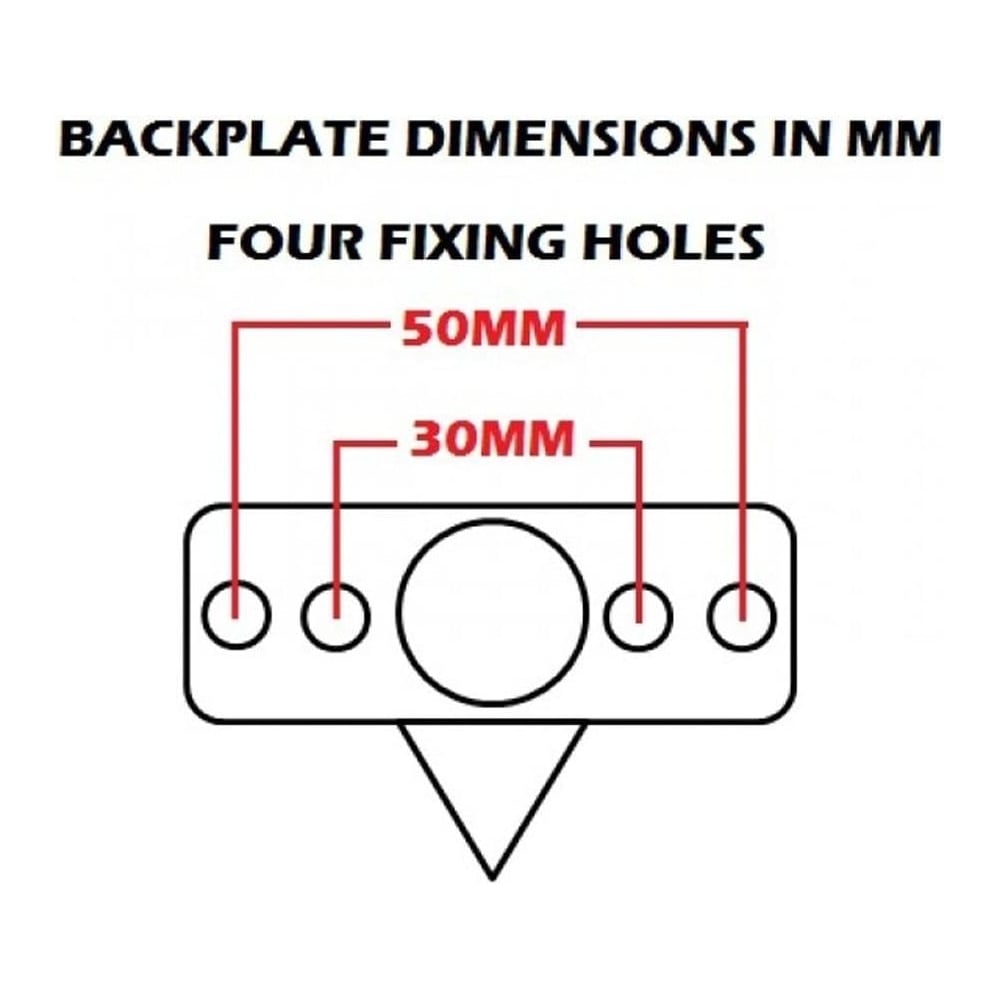

Diagram showing backplate dimensions with four fixing holes. Hole spacing is 30mm between inner holes and 50mm between outer holes. Measurements are in millimeters.

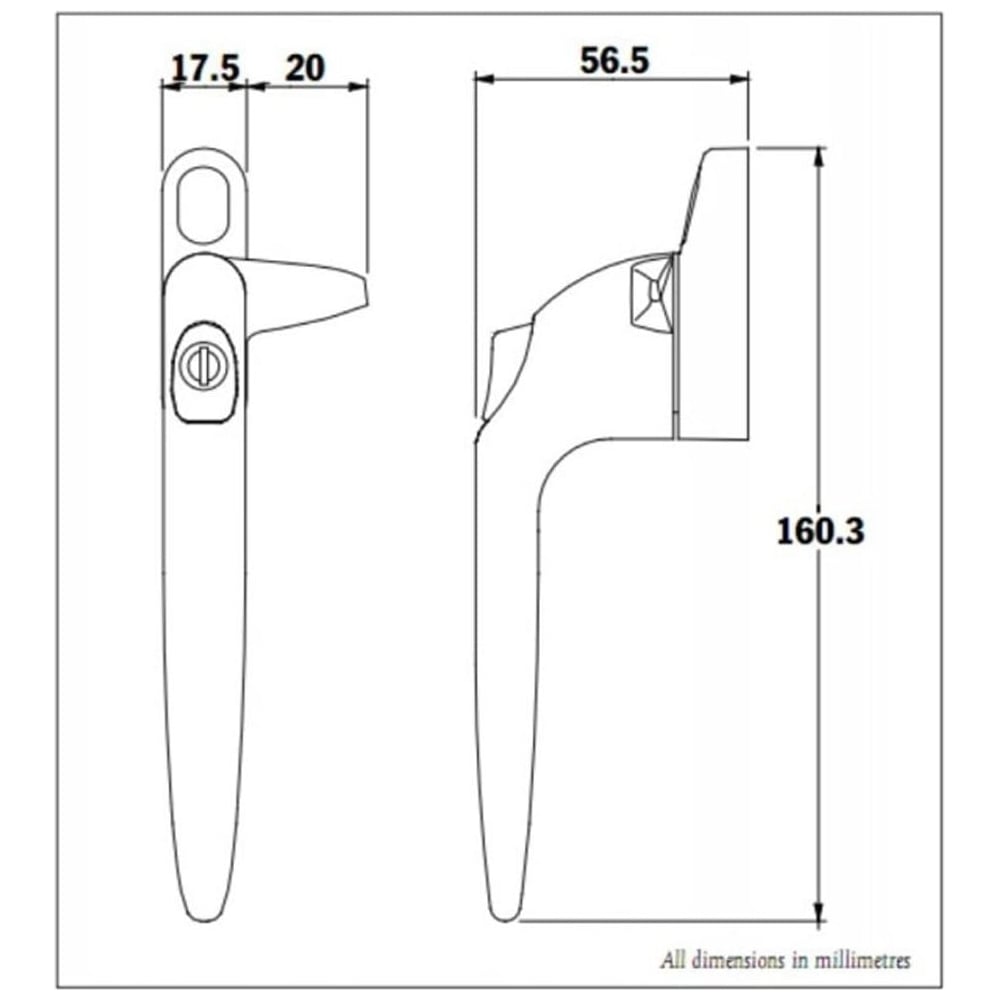

Technical drawing of a Cockspur replacement uPVC Sparta window handle with dimensions: 160.3mm height, 56.5mm depth, 17.5mm handle width, and 20mm spur projection.
Roll over image to zoom in Click on image to zoom
Two window handles, one labeled 'LEFT HAND' and the other 'RIGHT HAND', both in white color, with a keyhole visible on each handle.Side view of a white window handle showing how to measure the backset (distance from the front of the base plate to the center of the handle spindle).Diagram showing backplate dimensions with four fixing holes. Hole spacing is 30mm between inner holes and 50mm between outer holes. Measurements are in millimeters.Technical drawing of a Cockspur replacement uPVC Sparta window handle with dimensions: 160.3mm height, 56.5mm depth, 17.5mm handle width, and 20mm spur projection.

Cockspur Replacement uPVC Sparta Window Handle - White – Replacement uPVC Window Handle

TrojanSKU: HS2887
Price:
£5.99

Key benefits

  • Replaces cockspur handles - older uPVC and aluminium windows
  • 9mm backset standard fit - right and left-handed available
  • Key-locking + 2 screw caps - 1 key supplied per handle

100% SECURE PAYMENTS

HASSLE FREE RETURNS

FULLY TRACKED DELIVERY

Description

Ergonomically designed for modern appearance

Available in 9mm, 15.5 & 21mm backsets

Push to unlock mechanism, Key dead-locking for added security

Cover cap supplied to make handle non-locking if required

Supplied with key & cover plate

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also like

Recently viewed

Frequently Asked Questions

A cockspur window handle is commonly used on older uPVC, aluminium, and timber windows. It operates by hooking over a wedge or spur on the window frame to secure it when closed.

This handle is designed for windows that use a cockspur locking system. It’s important to check the step height and fixing positions to ensure compatibility with your existing window.

To find the correct fit, measure the distance from the base of the handle to the spur (step height). Matching this measurement ensures the handle will lock securely.

Yes, replacing a cockspur handle is usually straightforward. Simply remove the screws from the old handle and install the new one using the same fixing points.

Yes, the white finish is designed to be durable and resistant to wear, providing a clean look that matches most uPVC window frames while maintaining long-lasting performance.
