Euro Cylinder Lock Door Barrel V5 – Anti Snap – uPVC & Composite Doors

Save £5.00
ZOOSKU: HS10485

Will this fit your door? See the measuring guide ↓

162 reviews from verified buyers
Price:
£9.99 £14.99

Key benefits

  • ZOO V5 standard euro cylinder - general-purpose replacement
  • Key/key or thumb turn options - match your existing setup
  • 3 keys supplied - direct retrofit on uPVC doors

100% SECURE PAYMENTS

HASSLE FREE RETURNS

FULLY TRACKED DELIVERY

Description

Offers resistance to drilling, picking, bumping push and pull actions to deter forced entry. These replacement cylinders are so easy to fit that any DIY novice can do it in minutes!

  • Cylinder comes with 3 keys as standard.
  • These are the standard cylinders you will find on most properties in the UK.

* These cylinders are measured from each of the cylinder to the central fixing screw

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

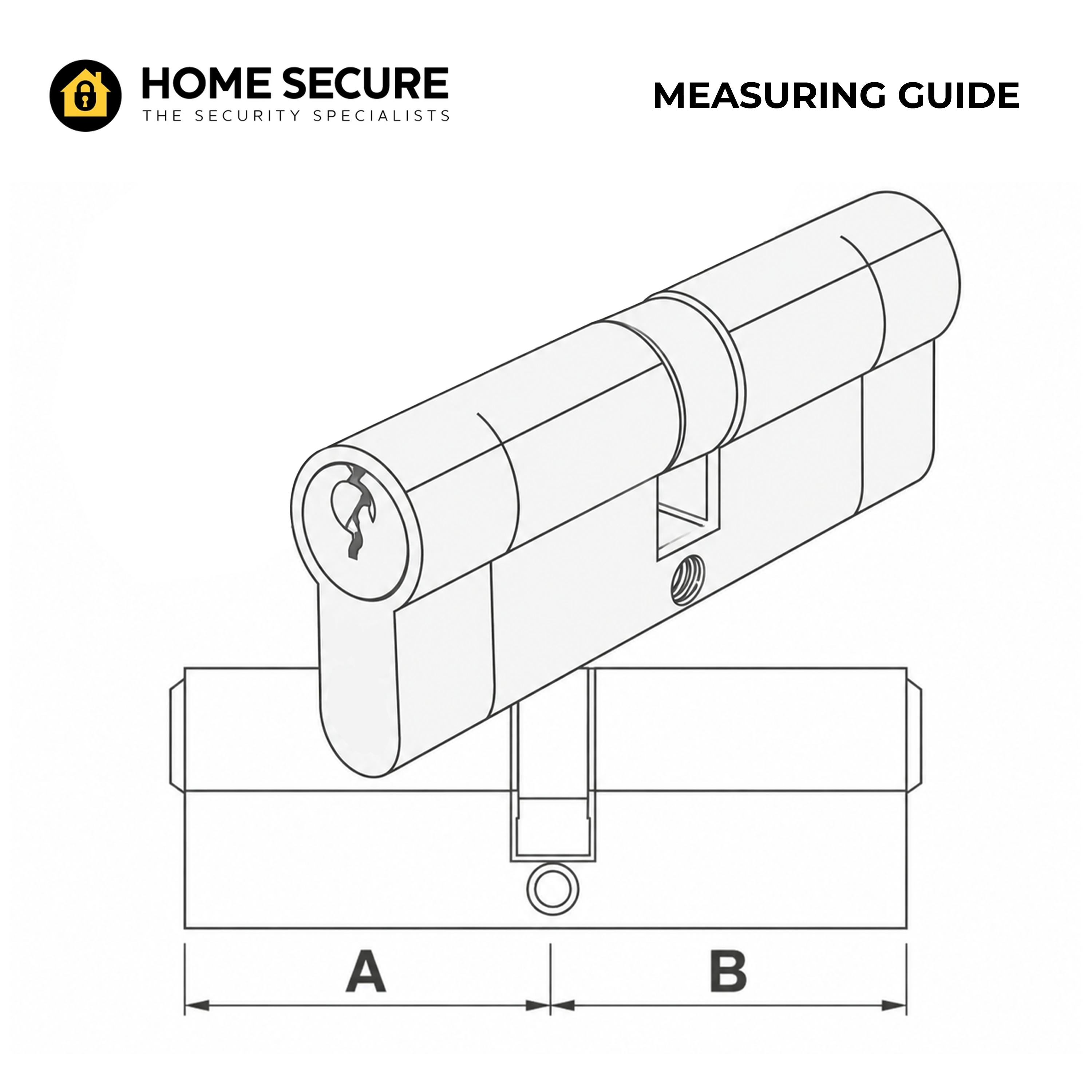

Euro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door

Not sure which size cylinder you need?

Euro cylinders are measured in two halves, separated by the central fixing screw. Take both measurements from your existing cylinder before ordering, and match them to the size listed above.

A — External side
Measure from the centre of the fixing screw to the outer edge of the cylinder on the side that faces outside your home. Common sizes are 30mm, 35mm, 40mm, or 45mm.

B — Internal side
Measure from the centre of the fixing screw to the outer edge of the cylinder on the side that faces inside your home. Common sizes are 30mm, 35mm, 40mm, 45mm, or 50mm.

Cylinders are typically described as A/B — for example, a 35/45 cylinder has 35mm on the external side and 45mm on the internal side. Get both measurements right and the cylinder will fit your door perfectly.

Still unsure? Send a photo of your existing cylinder to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team.

Full measuring guide

You may also like

Recently viewed

Frequently Asked Questions

This is a euro-profile cylinder lock, commonly used in uPVC, composite, timber, and aluminium doors. It is designed to fit into multipoint or mortise locking systems.

Yes. Euro cylinders are widely used in rental homes because they are easy to replace, secure, and compatible with most modern door systems.

Choosing the correct size ensures proper operation and maximum security. A cylinder that is too long may protrude outside the handle, making it easier to force, while a cylinder that is too short may not engage properly inside the lock mechanism.

High-security euro cylinders reduce the risk of break-ins, increase tenant safety, and help ensure compliance with modern security expectations. A detailed explanation is available here: Why Landlords Should Upgrade to High-Security Euro Cylinders in All Rentals

Yes. Most euro cylinders are designed for easy DIY replacement. With a screwdriver, you can remove the retaining screw, slide out the old cylinder, insert the new one, and secure it back in place.
