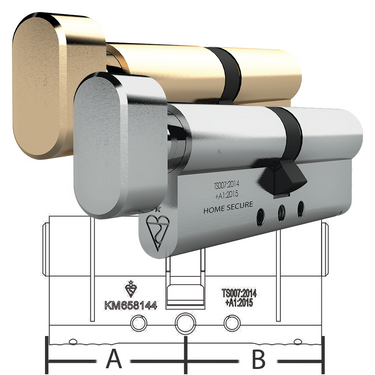

A Home Secure 1 Star Euro Cylinder Door Lock, featuring a silver and gold colored cylinder with a thumb turn, and an illustration of its installation below.

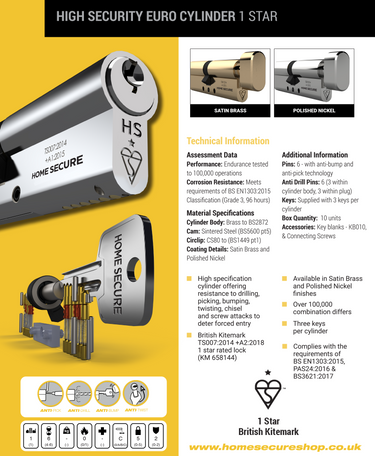

Product info sheet for High Security Euro Cylinder 1 Star by Home Secure. Includes images of the cylinder lock and key.

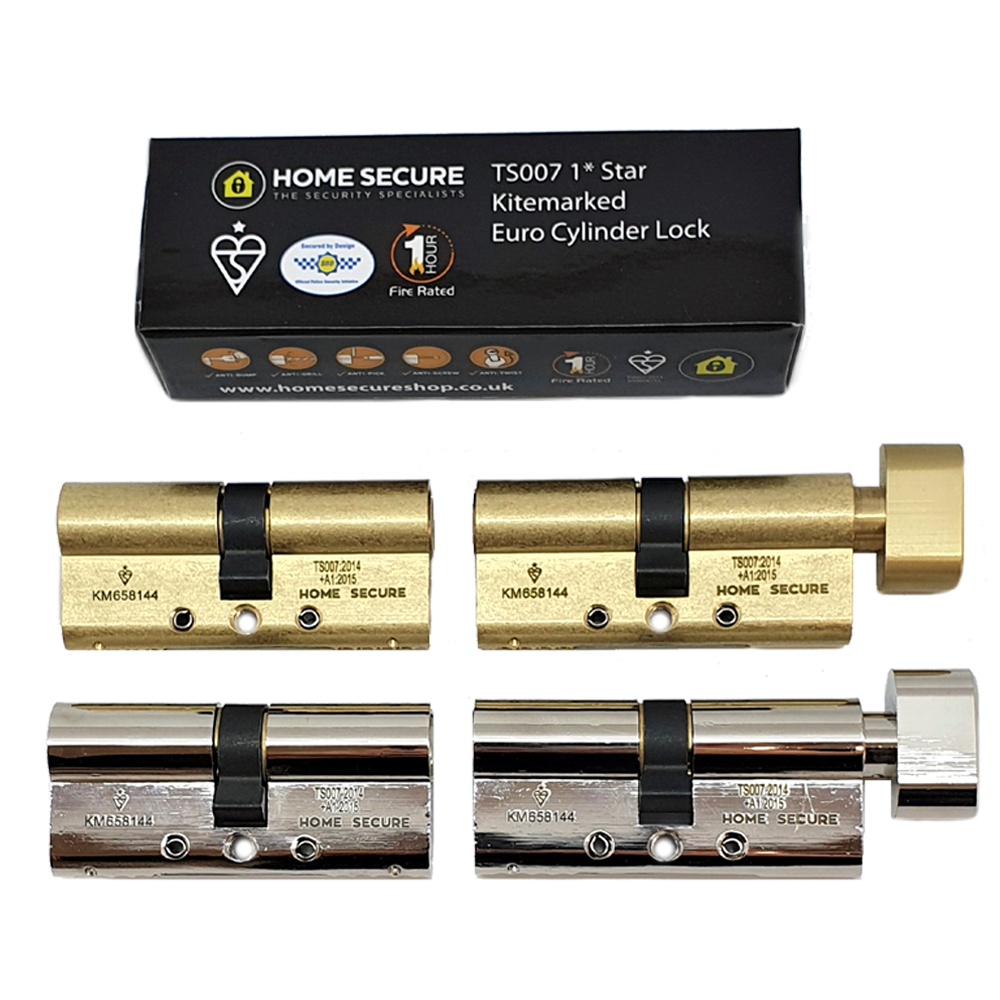

Four Euro cylinder locks displayed in front of a black box labeled 'HOME SECURE TS007 1* Star Kitemarked Euro Cylinder Lock.' Two locks are brass-colored with thumb turn knobs, and two are chrome-colored with thumb turn knobs

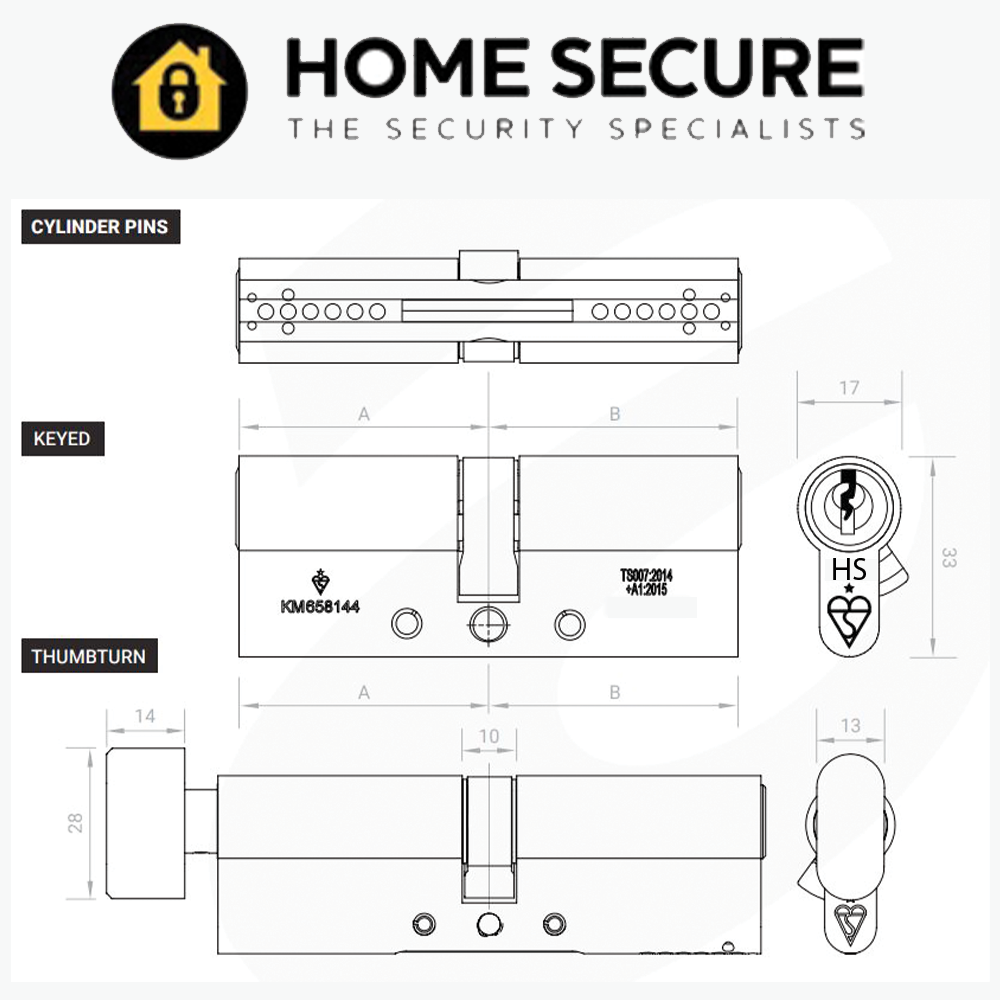

Technical drawing of a Home Secure euro cylinder lock showing cylinder pins, keyed view, and thumb turn view
Euro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door
Roll over image to zoom in Click on image to zoom
A Home Secure 1 Star Euro Cylinder Door Lock, featuring a silver and gold colored cylinder with a thumb turn, and an illustration of its installation below.Product info sheet for High Security Euro Cylinder 1 Star by Home Secure. Includes images of the cylinder lock and key.Four Euro cylinder locks displayed in front of a black box labeled 'HOME SECURE TS007 1* Star Kitemarked Euro Cylinder Lock.' Two locks are brass-colored with thumb turn knobs, and two are chrome-colored with thumb turn knobsTechnical drawing of a Home Secure euro cylinder lock showing cylinder pins, keyed view, and thumb turn viewEuro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door

Home Secure Thumb Turn 1 Star Euro Cylinder Door Lock – Anti Snap – uPVC & Composite Doors

Save £5.00
Home SecureSKU: HS13078

Will this fit your door? See the measuring guide ↓
Price:
£19.99 £24.99

Save £5.00 — limited stock at this price

Key benefits

  • TS007 1-star anti-snap rated - British-tested baseline security
  • Pair with 2-star furniture - matches 3-star security level
  • 3 keys supplied + retrofit ready - swap with no door modification

100% SECURE PAYMENTS

HASSLE FREE RETURNS

FULLY TRACKED DELIVERY

Description

The Home Secure 1 Star Euro Cylinder Door Lock offers a medium security level solution for euro profile doors. In order to achieve the recommended full 3 star accreditation you would need to use this lock in conjunction with a PAS 24 2 star door handle.

The main reason a 1 star cylinder would be used in comparison to a 3 star cylinder is that they are generally a lot cheaper and still carry a British Standard Kitemark which is the minimum requirement for a lot of insurance companies meaning you can meet this requirement for a cheaper cost rather than purchasing a 3 star cylinder. However, you should be aware that a 1 star cylinder on its own does not meet the current recommended 3 star security standard.

  • TS007 1 Star Rating
  • Insurance recommended British Kitemark™ stamp
  • 1 Hour Fire Rated
  • Cylinder comes with 3 keys as standard
  • Measurements are taken to the centre screw on this lock
  • Available with key both sides or with internal thumb turn

Designed to provide resistance against known methods of attack:

  • Anti-Bump
  • Anti-Drill
  • Anti-Pick
  • Anti-Screw
  • Anti-Twist

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Euro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door

Not sure which size cylinder you need?

Euro cylinders are measured in two halves, separated by the central fixing screw. Take both measurements from your existing cylinder before ordering, and match them to the size listed above.

A — Internal side
Measure from the centre of the fixing screw to the outer edge of the cylinder on the side that faces inside your home. Common sizes are 30mm, 35mm, 40mm, 45mm, or 50mm.

B — External side
Measure from the centre of the fixing screw to the outer edge of the cylinder on the side that faces outside your home. Common sizes are 30mm, 35mm, 40mm, or 45mm.

Cylinders are typically described as A/B — for example, a 35/45 cylinder has 35mm on the internal side and 45mm on the external side. Get both measurements right and the cylinder will fit your door perfectly.

Still unsure? Send a photo of your existing cylinder to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team.

Full measuring guide

You may also like

Recently viewed

Frequently Asked Questions

It is a thumb-turn euro cylinder lock featuring a TS007 1-Star security rating and the British Kitemark. It provides protection against common break-in methods such as picking, drilling, bumping, twisting, and screw attacks.

The lock comes supplied with three keys as standard and is designed for straightforward installation.

Yes. It is designed to fit standard euro-profile doors. It comes in multiple size options (e.g., 35/35, 40/40, 45/45, 50/50) to suit different door thicknesses.

A thumb-turn cylinder allows you to lock or unlock the door from the inside without a key — ideal for quick and easy exit. You can read more about how thumb-turn cylinders compare to other types of cylinders here: Types of Cylinder Locks

A 1-Star cylinder meets the minimum UK security requirements and offers essential protections. For increased security, many homeowners combine a 1-Star cylinder with a 2-Star security handle or choose a 3-Star cylinder for maximum anti-snap protection.

About the Brand - Home Secure

HomeSecure is a UK-based home security specialist dedicated to providing high-quality, reliable, and affordable security products designed to protect homes and families. With years of industry experience, HomeSecure focuses on delivering hardware that meets the practical needs of homeowners while maintaining professional-grade performance.

From anti-snap door cylinders and precision-engineered hardware to reinforcement solutions and security accessories, every HomeSecure product is developed with durability, ease of installation, and long-term protection in mind. Our range is carefully tested and selected to meet trusted security standards—offering strong defence against common break-in methods and everyday wear.

At HomeSecure, we put customer safety, product reliability, and excellent value at the core of everything we do. Whether you're upgrading a lock, improving door strength, or enhancing overall home protection, HomeSecure products deliver dependable security you can trust.
