Replacing a broken or outdated window handle? Before buying a new one, it’s important to identify what type of uPVC window handle you have. With so many styles and measurements, choosing the wrong handle can lead to poor fitting — or worse, a security risk.
In this guide, we’ll help you quickly and confidently identify your existing handle, take the right measurements, and point you to the correct replacements available from our expert team at Home Secure Shop.
Types of uPVC Window Handles
There are three main types of uPVC window handles used across UK homes:
🛠 1. Espag Handles
-
The most common type, used on modern windows
-
Operates a multipoint lock by turning a spindle
-
Usually secured with two screws
-
Spindle protrudes from the back and connects into the lock mechanism
-
Often has key-locking functionality for added security
🛠 2. Cockspur Handles
-
Common on older uPVC and aluminium windows
-
Has a “spur” that catches on a wedge to keep the window closed
-
No internal lock mechanism — the pressure keeps the window shut
-
Easy to identify due to the curved spur design
🛠 3. Tilt & Turn Handles
-
Found on windows that open inward or tilt for ventilation
-
Features a longer spindle and often includes key-locking
-
Distinct due to their design and movement style

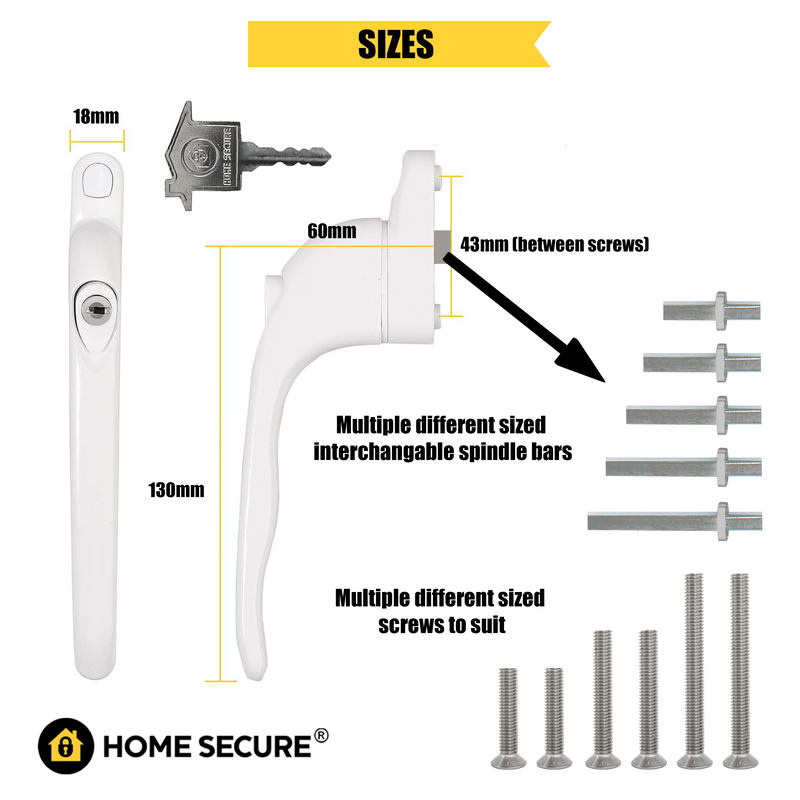

How to Measure a uPVC Window Handle
Once you’ve identified the handle type, you'll need to measure:
-
Spindle length (Espag and Tilt & Turn):
Measure from the base of the handle to the tip of the spindle.
Common sizes include 15mm, 30mm, and 40mm. -
Screw hole spacing (Espag & Cockspur):
Usually measured in mm between the two screw holes (centre to centre). Common sizes include 43mm or 64mm. -
Backplate width (Cockspur):
Ensures proper alignment with the existing frame.
What if I Can’t Match My Handle?
Don’t worry — many replacement handles are universally compatible or come with adjustable fixings. Our team can help you find the closest match.
🔗 Contact us for support →
Top Tip! – Many people buy a 40mm spindle and cut it down with a hacksaw if required
When Should You Replace a uPVC Handle?
-
The handle is loose, jammed, or stiff
-
The lock mechanism is faulty
-
You’ve lost the key and need a replacement
-
You're upgrading to a more secure option
If your handle is damaged or no longer locking properly, we always recommend replacing it to maintain your home’s security.
Still Not Sure? We’re Here to Help
Our team specialises in all things uPVC window hardware. We supply tradespeople and homeowners across the UK with quality, tested parts.
➡️ Shop our full range of uPVC window handles
➡️ Contact us with photos or questions
Frequently Asked Questions (FAQ)
What’s the difference between Espag and Cockspur handles?
Espag handles operate a spindle-driven locking system, while Cockspur handles rely on a curved spur that presses against a frame wedge.
How do I measure spindle length?
Measure from the base of the handle to the tip of the spindle. The most common sizes are 15mm to 40mm.
Can I replace a Cockspur with an Espag handle?
No — they use different locking mechanisms. You’ll need to match the handle type to the window mechanism unless you plan to change the window internals.
✅ Key Takeaways
-
Identify your handle type: Espag, Cockspur, or Tilt & Turn
-
Measure spindle length and screw hole spacing
-
Choose a secure, compatible replacement
Finally - when it's time to replace your uPVC window handles, check out this video which shows you how:
