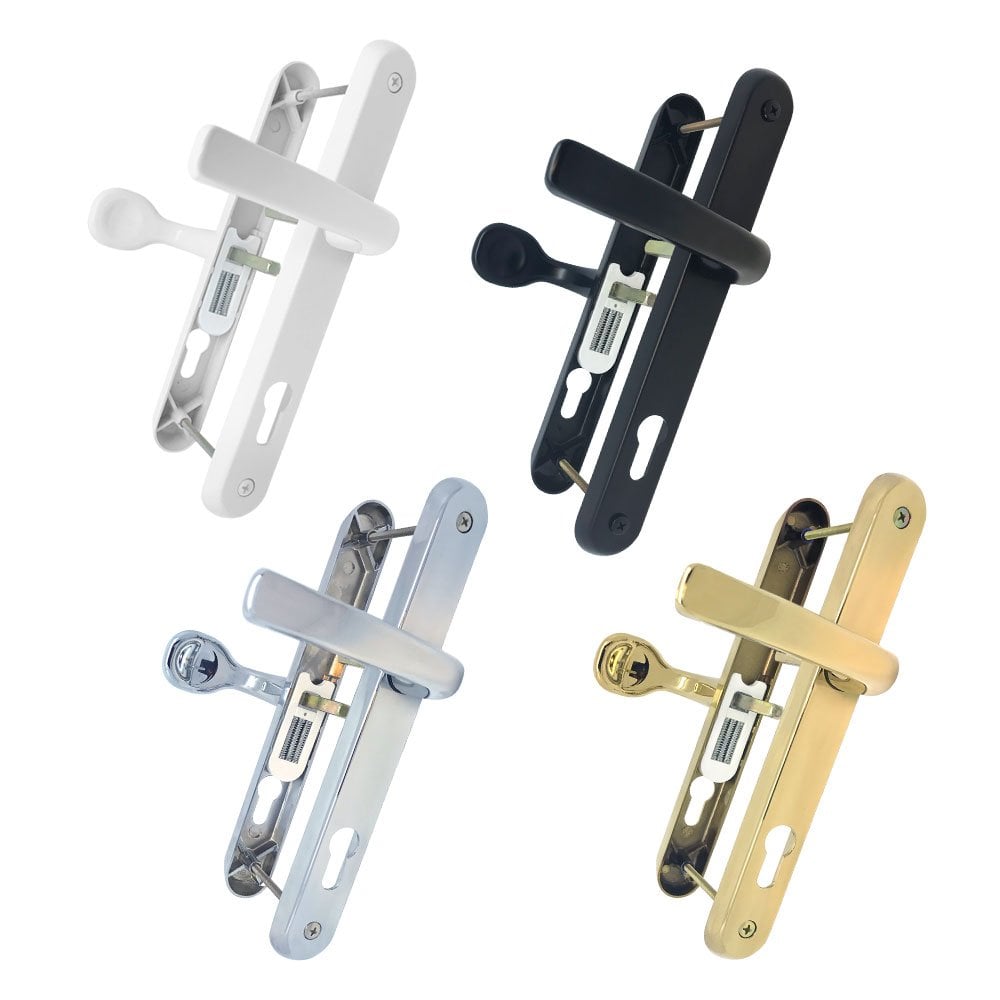

Set of four UPVC door handle sets with internal thumb turn locks in different finishes: white, black, chrome, and gold.

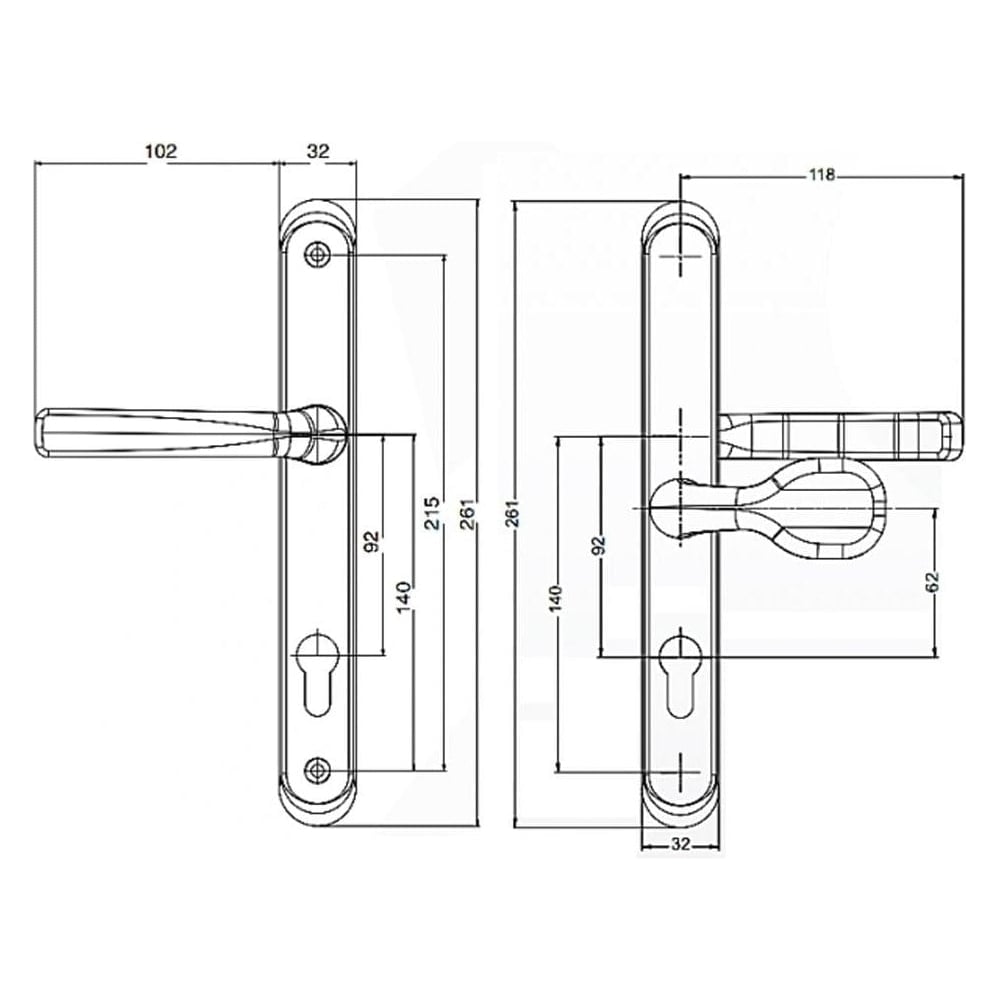

Technical diagram of UPVC door handles with thumb turn, showing detailed measurements including 92mm PZ centre and 215mm screw hole spacing.

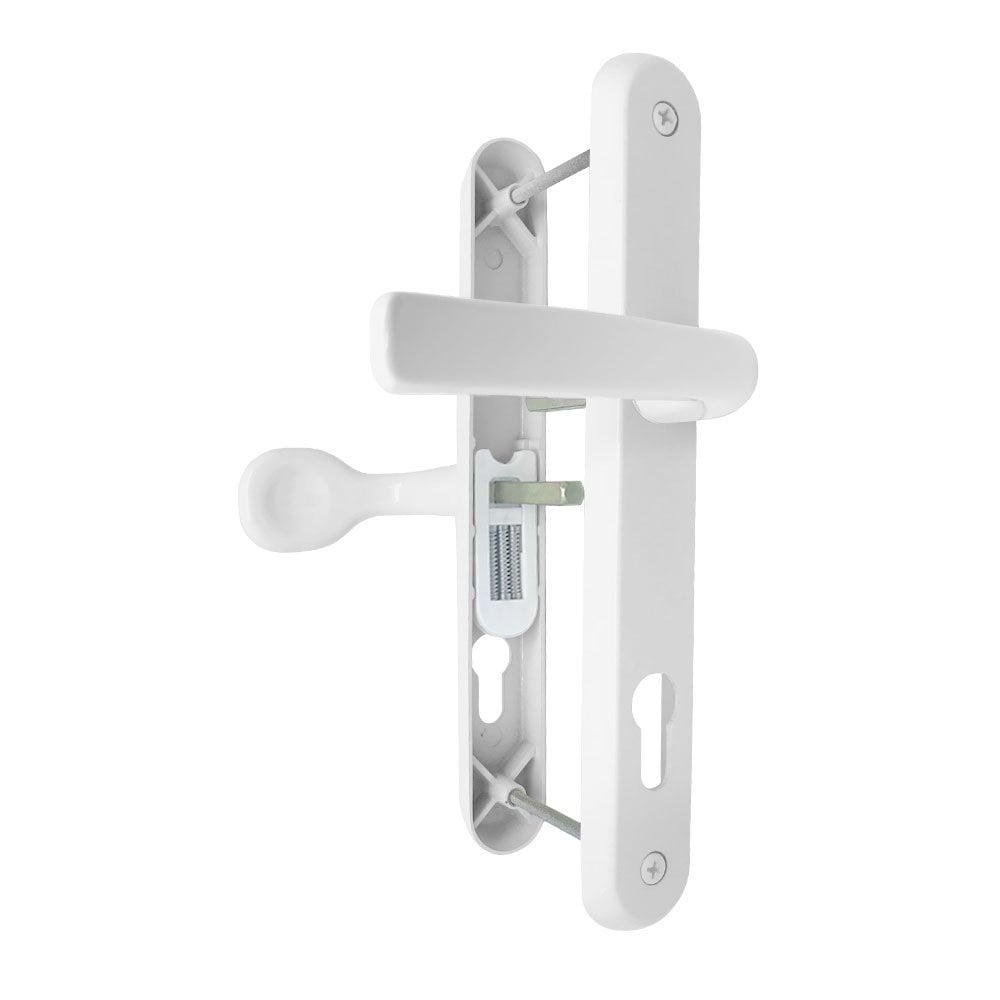

White UPVC door handle set with internal thumb turn lock mechanism.

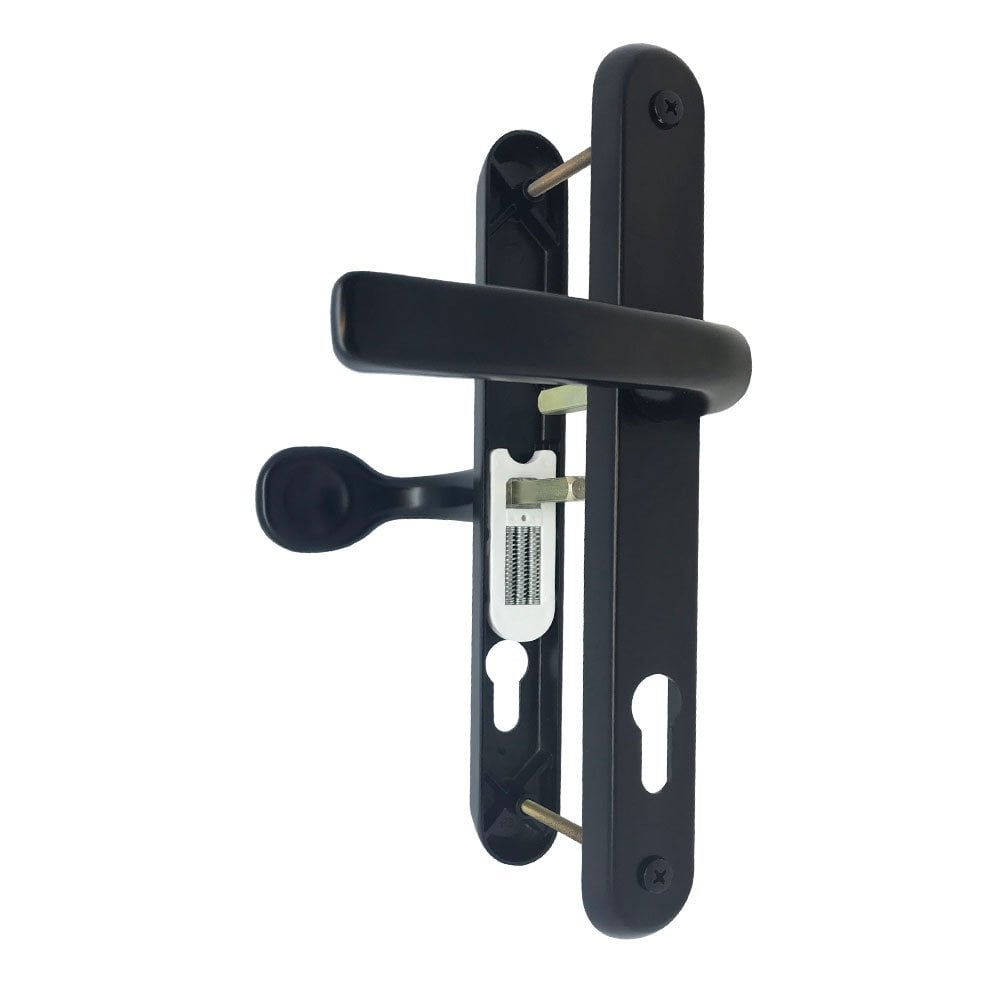

Black UPVC door handle set with thumb turn lock mechanism.

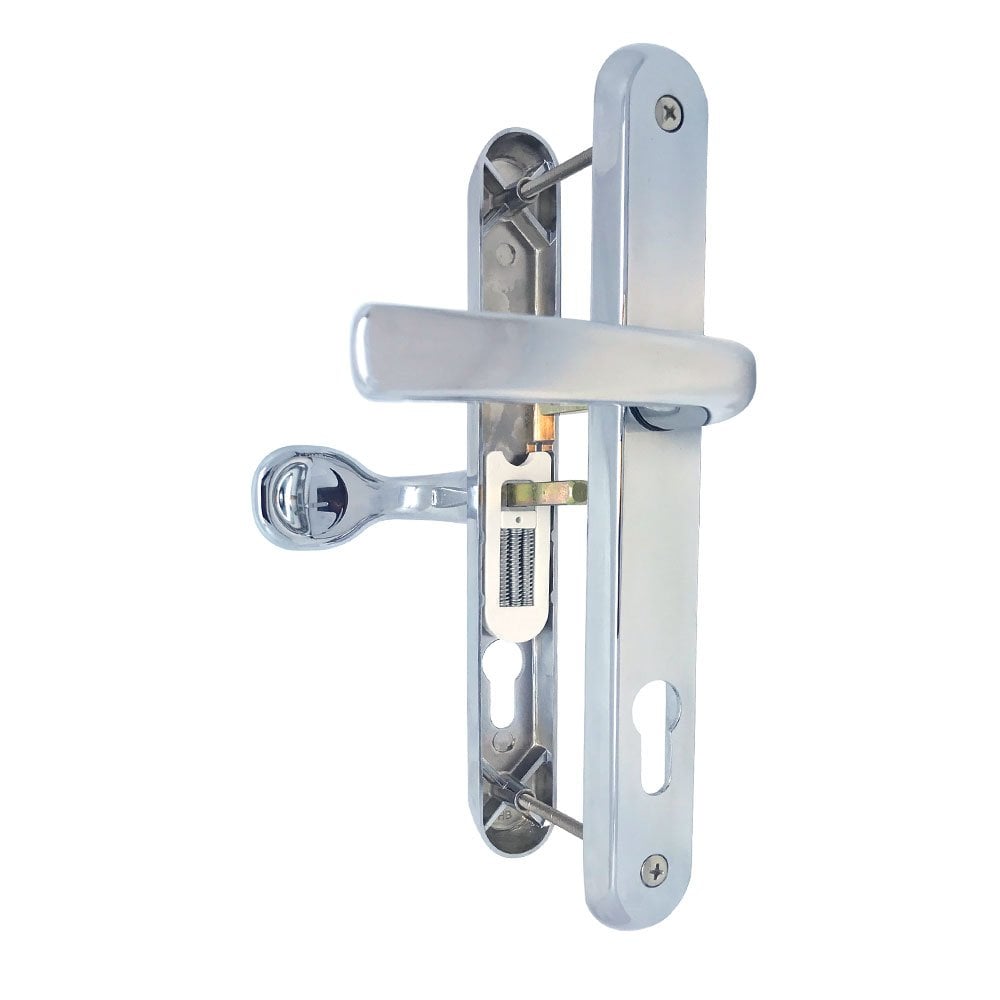

Chrome UPVC door handle set with key inserted into the lock mechanism.

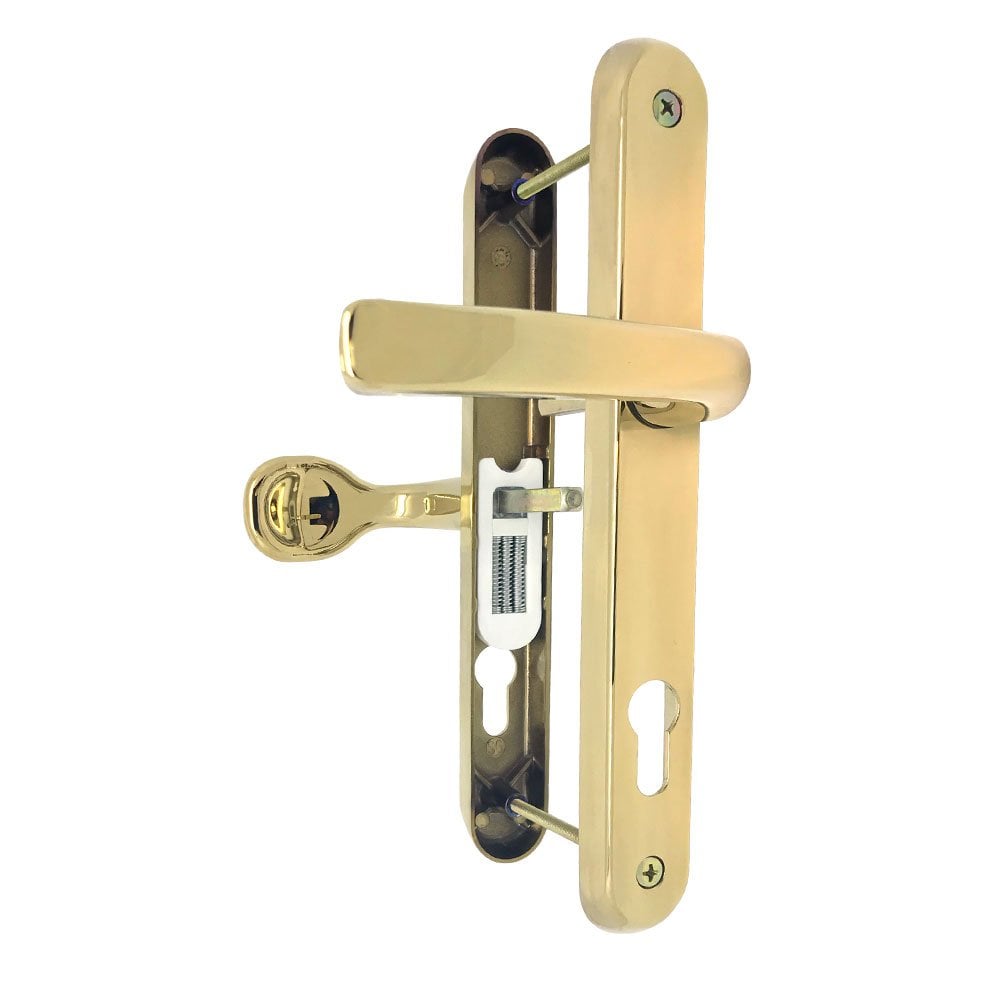

Gold UPVC door handle set with key inserted into the lock mechanism.
uPVC door handle measuring guide showing how to measure fixing centres (122mm or 215mm) and handle centres (92mm PZ) on a uPVC door
Set of four UPVC door handle sets with internal thumb turn locks in different finishes: white, black, chrome, and gold.
Technical diagram of UPVC door handles with thumb turn, showing detailed measurements including 92mm PZ centre and 215mm screw hole spacing.
White UPVC door handle set with internal thumb turn lock mechanism.
Black UPVC door handle set with thumb turn lock mechanism.
Chrome UPVC door handle set with key inserted into the lock mechanism.
Gold UPVC door handle set with key inserted into the lock mechanism.
uPVC door handle measuring guide showing how to measure fixing centres (122mm or 215mm) and handle centres (92mm PZ) on a uPVC door
Avocet

Avocet Affinity Premium Quality Door Handles. 92/62mm 215mm Lever PadAvocet Affinity Premium Quality Door Handles. 92/62mm 215mm Lever Pad

4.0 (1 review)
£24.99 SKU: HS2575

Will this fit your door? See the measuring guide ↓

Colour: White
Screw Centres
PZ
Colour: White
Screw Centres
PZ
Order by 2pm for same-day dispatch
Klarna

3 payments of [klarna_payment] with Klarna.

Learn more
Eye visibility icon in black, representing monitoring, visibility, or visual deterrence, displayed on a transparent background.

Same-day dispatch on orders before 2pm

Fully tracked 2 working-day courier

Will it fit?
  • Screw centres: 215mm. PZ: 92/62mm offset.
  • Screw centres: measure from the centre of the top fixing screw to the centre of the bottom one. PZ: from the centre of the square spindle hole to the centre of the keyhole.
  • Lever/pad: lever inside, fixed pad outside, so from outside the door opens with the key.
  • Supplied with a minimum of 2 spindles and 2 sets of screws to suit profiles 58-70mm.
  • Reversible for left or right-handed doors.
  • Not sure? How to measure your door handle.
Other styles that fit the same door215mm screw centres · 92/62mm Offset PZ
Hoppe D31 uPVC Door Handle - Lever/Pad - 92/62mm Offset P... £17.99
uPVC door handle measuring guide showing how to measure fixing centres (122mm or 215mm) and handle centres (92mm PZ) on a uPVC door

Not sure if this handle will fit your door?

Before ordering, take two quick measurements from your existing handle. If both match the dimensions listed above, this handle will fit your door perfectly.

A — Fixing centres
Measure the distance between the centres of the top and bottom fixing screw holes on your current handle. This is most commonly 122mm or 215mm.

B — Handle centres (PZ)
Measure the distance from the centre of the handle spindle (the square hole the lever fits into) to the centre of the keyhole below. This is most commonly 92mm.

If your measurements match, you're good to go. Still unsure? Send a photo of your existing handle to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team. You can also pop into our trade counter in Aintree, Liverpool.

Full measuring guide
Key benefits
  • 215mm screw centres, 92/62mm offset PZ - check both against your door
  • Lever/pad - fixed pad outside, opens from outside with the key
  • In the box - a minimum of 2 spindles and 2 sets of screws to suit profiles 58-70mm
  • Sprung lever - returns to level after use
Product overview
  • Introducing the NEW Affinity door handle range
  • Handles are non-handed allowing them to be used as either a left or right hand (supplied with spring cassette)
  • Available in White, Black, Champagne Gold & Chrome
  • Supplied with a minimum of 2 spindles and 2 sets of screws to suit profiles 58-70mm
  • One Set - 1 Internal, 1 External Handle
  • 92mm / 62mm PZ. 215mm Screw to Screw

Technical Information

Assessment Data

Performance tested to 100,000 operations
Corrosion resistance: All finishes meet the requirements of BS EN 1670 - grade 5 (500 hrs Salt Spray)

Material Specification

Handle/Backplate: Zinc Alloy BS1004A or aluminum A360
Spindle: Steel C1008, Zinc plated and yellow passivated
Powder Coating: White and Black, 60 microns min coating thickness
PVD/Chrome Coating: Champagne Gold/Chrome/Flint, multiple layer plating process
Delivery & Returns

How much is delivery?

UK Mainland Delivery is £2.99 on all items no matter how many you order!

Northern Ireland, Scottish Highlands, Channel Islands £6.00.

We do not offer International Delivery (Ireland, France, Spain etc).

When will my order be dispatched?

Orders before 2pm (Monday to Friday) are usually dispatched same day but may take up to 24 hours.

When will I receive my item?

We ship on 2 working day courier. Fully Tracked. Tracking will be emailed on dispatch.

Special order items such as keyed alike locks will take longer to dispatch. Please refer to product description for lead times.

I haven't received my item?

Please email us your name, order number and date of purchase.

We prefer email as it allows us time to research and respond.

Returns Information

We operate a 30 day refunds and return policy.

If you change your mind you must return the product back to us within 30 days of delivery

Please include a copy of your invoice and a note stating reason for return.

Additional keys, locks keyed alike or built to code are non refundable as they are personalised made to order goods.

Any refund, which is due to a fault or other defect, will include a refund of the applicable delivery charges otherwise not.

It is the buyers responsibility to arrange the return of goods to us. We do not offer a collection service for returning items.

Items must be returned including original product packaging and accessories.

We reserve the right to refuse any returns that do not comply with this policy.

Please post returns to the following address:

Home Secure (Online)

Unit 5, Brookfield Drive

Liverpool, L9 7AJ

United Kingdom

Frequently Asked Questions

To confirm compatibility, measure your existing handle carefully. Check the PZ measurement (spindle-to-keyhole distance), the screw-fixing centres, and the overall backplate length. If these match your current handle, the replacement will fit correctly.

You need three key measurements:

  • PZ – the distance from the handle spindle centre to the keyhole centre

  • Screw-fixing centres – the distance between the two fixing screws

Backplate length – the total length of the handle plate Matching these ensures your new handle aligns perfectly with your door lock mechanism.

Yes — as long as your measurements match, this handle is suitable for most uPVC multipoint locking systems and can be used as a direct replacement.

To avoid ordering the wrong size, you should measure the PZ, fixing screw distances, and backplate length accurately. For a complete step-by-step guide on how to measure, choose, and fit uPVC door handles, read our article here: uPVC Door Handle Replacement | How to Measure, Choose & Fit

Replacement is recommended if the handle becomes stiff, loose, worn, damaged, or outdated. A properly fitted new handle can restore smooth operation, improve security, and refresh your door’s appearance.
