Description

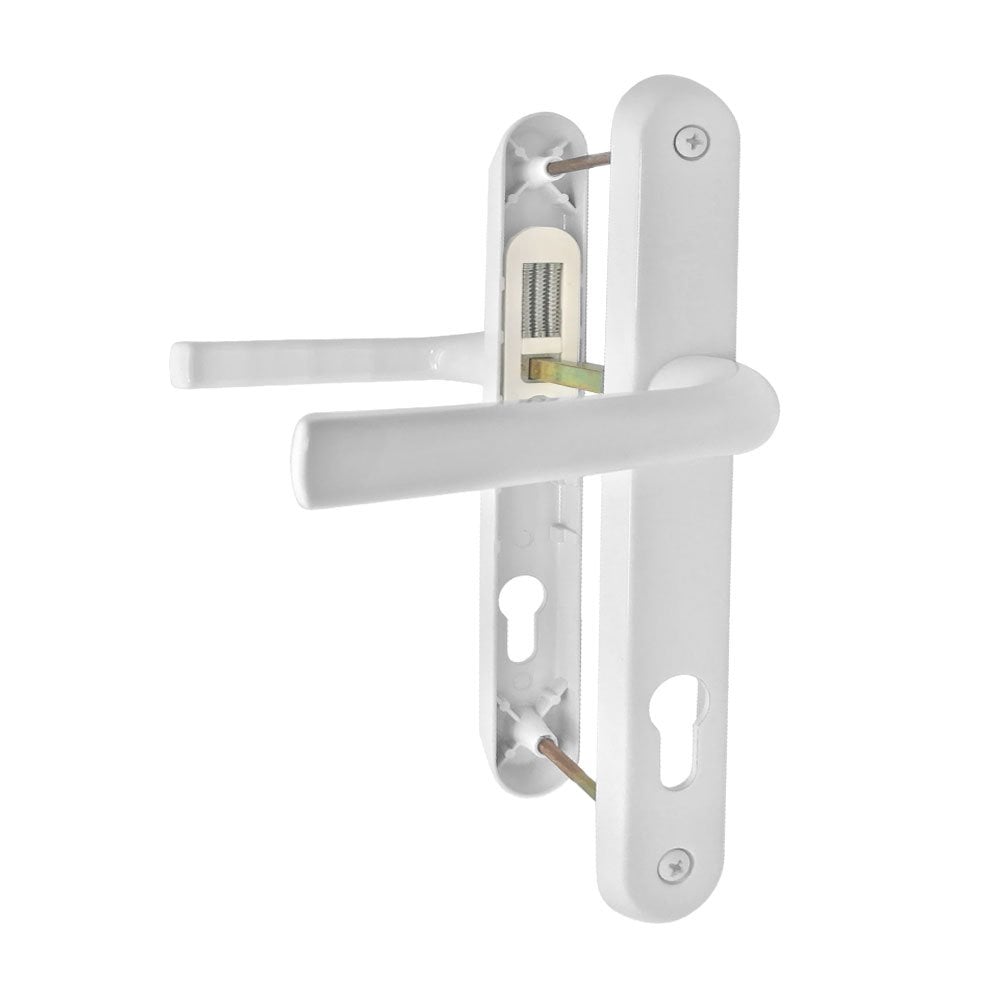

- Introducing the NEW Affinity door handle range
- Handles are non-handed allowing them to be used as either a left or right hand (supplied with spring cassette)

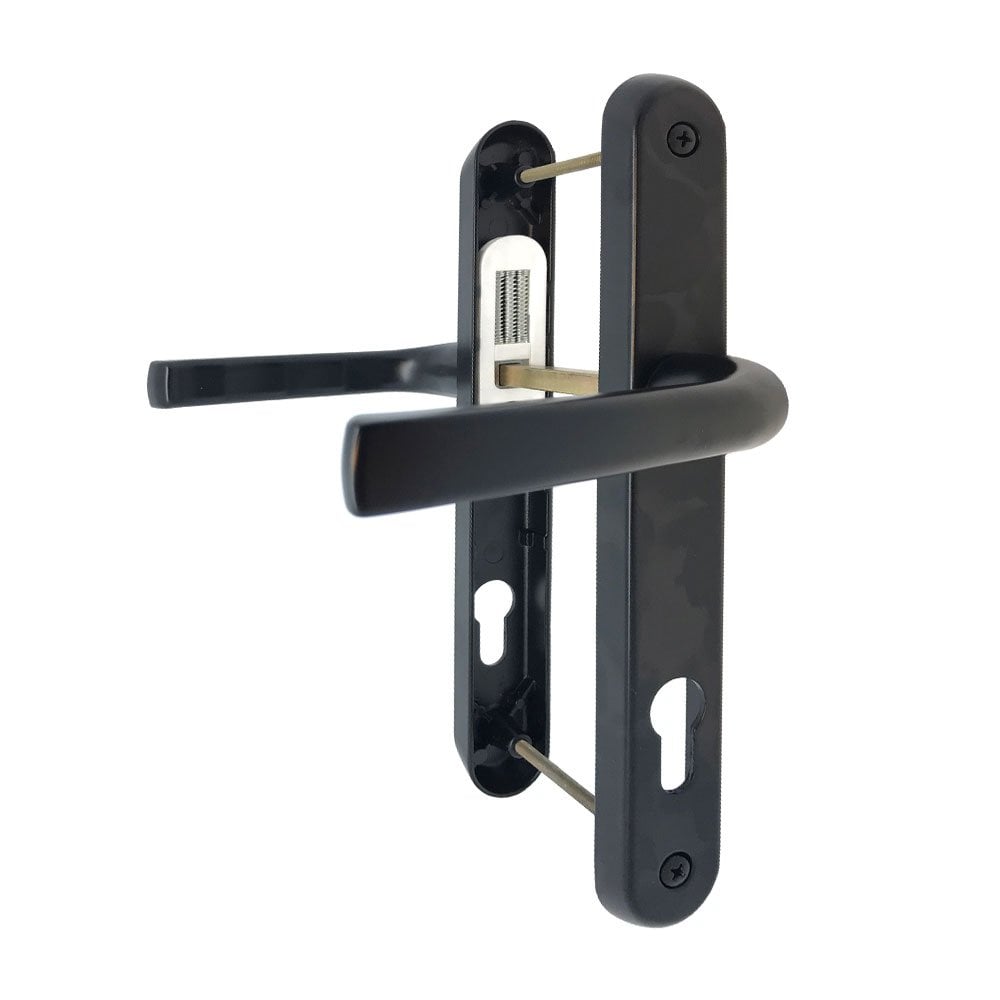

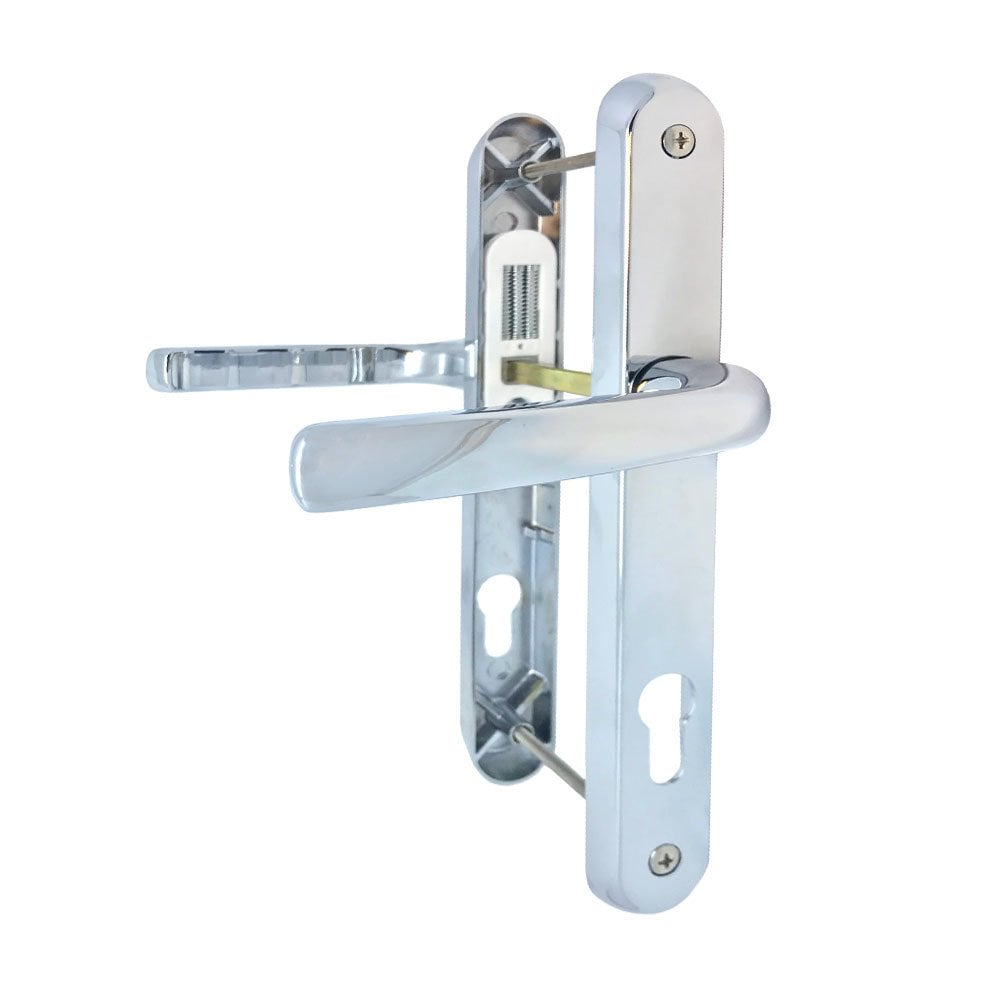

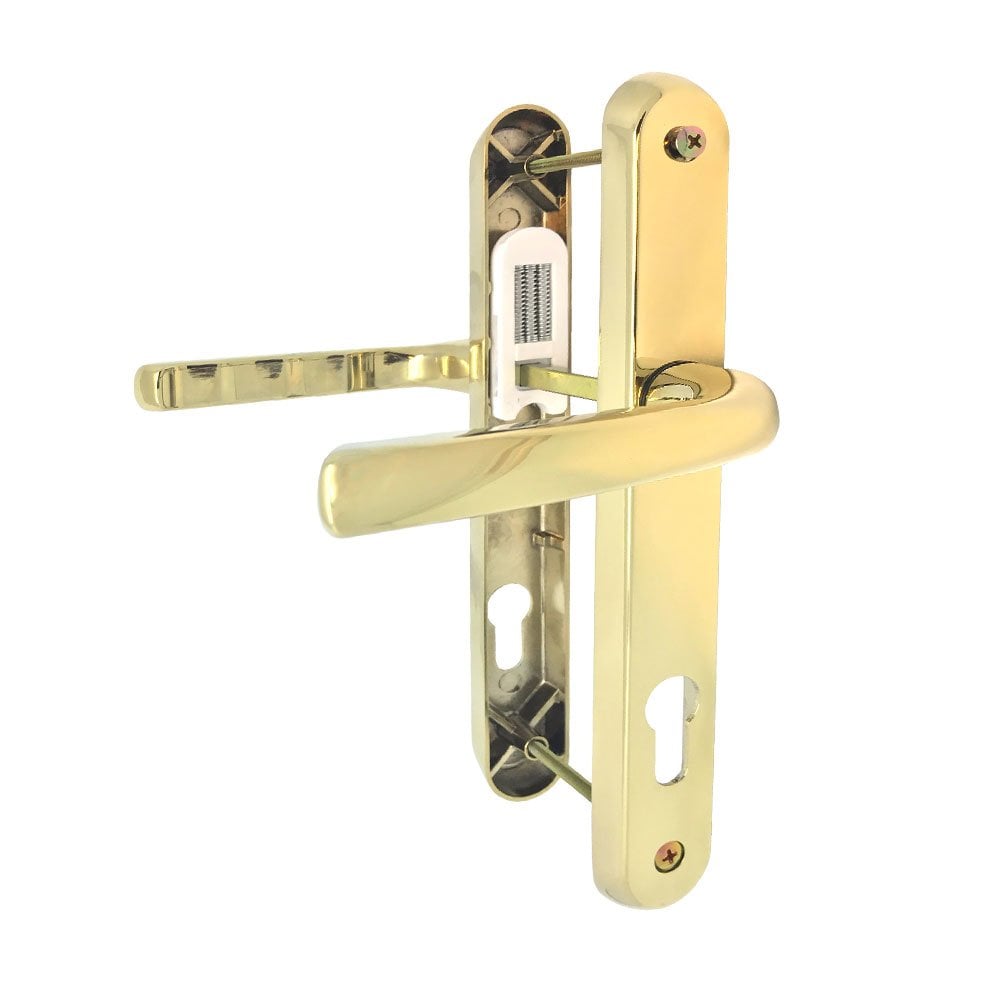

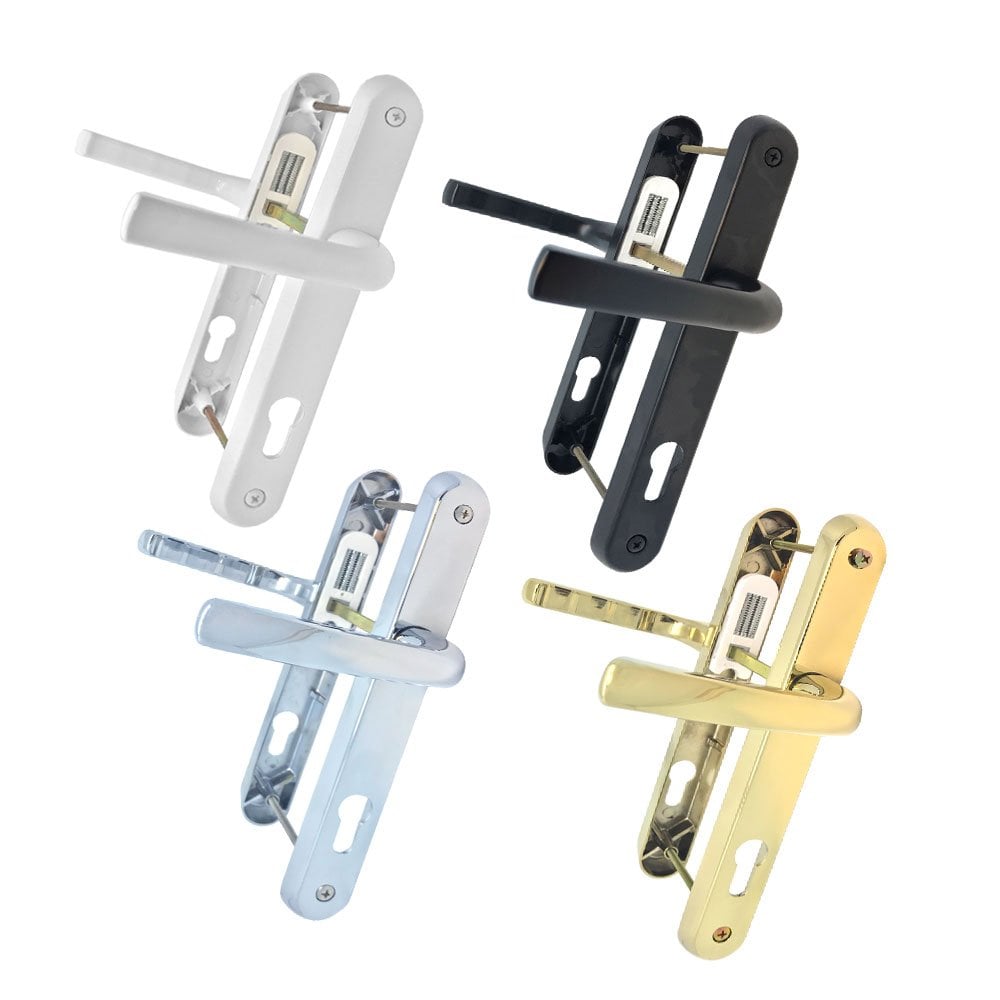

- Available in White, Black, Champagne Gold & Chrome
- Supplied with a minimum of 2 spindles and 2 sets of screws to suit profiles 58-70mm
- One Set - 1 Internal, 1 External Handle
- 92mm PZ. 215mm Screw to Screw

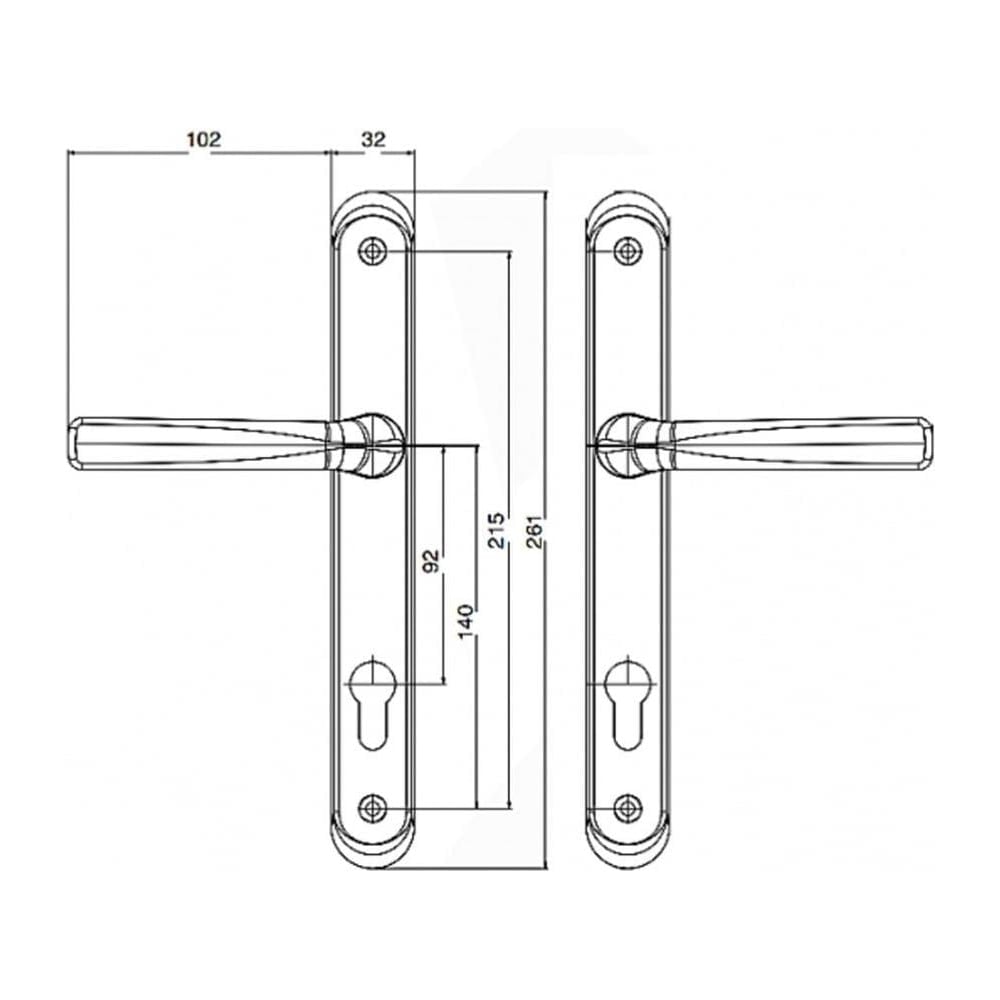

- See image above for detailed measurements
Technical Information
Assessment Data
Performance tested to 100,000 operations
Corrosion resistance: All finishes meet the requirements of BS EN 1670 - grade 5 (500 hrs Salt Spray)
Material Specification
Handle/Backplate: Zinc Alloy BS1004A or aluminum A360
Spindle: Steel C1008, Zinc plated and yellow passivated
Powder Coating: White and Black, 60 microns min coating thickness
PVD/Chrome Coating: Champagne Gold/Chrome/Flint, multiple layer plating process
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Not sure if this handle will fit your door?
Before ordering, take two quick measurements from your existing handle. If both match the dimensions listed above, this handle will fit your door perfectly.
A — Fixing centres
Measure the distance between the centres of the top and bottom fixing screw holes on your current handle. This is most commonly 122mm or 215mm.
B — Handle centres (PZ)
Measure the distance from the centre of the handle spindle (the square hole the lever fits into) to the centre of the keyhole below. This is most commonly 92mm.
If your measurements match, you're good to go. Still unsure? Send a photo of your existing handle to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team. You can also pop into our trade counter in Aintree, Liverpool.
Full measuring guide
