Pro XL Sprung Adjustable Lever/Lever Multipoint Door Handles 59mm-96mm PZ 156mm-242mm FixingsLever/Lever Multipoint Door Handles 59mm-96mm PZ 156mm-242mm Fixings
Will this fit your door? See the measuring guide ↓
products.product.pickup_availability.unavailable
Same-day dispatch on orders before 2pm
Not sure if this handle will fit your door?
Before ordering, take two quick measurements from your existing handle. If both match the dimensions listed above, this handle will fit your door perfectly.
A — Fixing centres
Measure the distance between the centres of the top and bottom fixing screw holes on your current handle. This is most commonly 122mm or 215mm.
B — Handle centres (PZ)
Measure the distance from the centre of the handle spindle (the square hole the lever fits into) to the centre of the keyhole below. This is most commonly 92mm.
If your measurements match, you're good to go. Still unsure? Send a photo of your existing handle to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team. You can also pop into our trade counter in Aintree, Liverpool.
Product overview
The Pro XL Sprung Adjustable Lever/Lever Multipoint Door Handles provide a highly flexible replacement solution for a wide range of uPVC and multipoint door locks. Designed with adjustable handle and fixing positions, they accommodate PZ centres from 59mm to 96mm and fixing centres from 156mm to 242mm, making them ideal when replacing older handles with less common dimensions.
The larger XL backplate is designed specifically for retrofit applications, providing additional coverage to help conceal existing screw holes, marks and faded areas left by previous door furniture. Despite the increased coverage, the tapered backplate and curved lever design maintain a neat and well-proportioned appearance.
A double spring mechanism helps the levers return smoothly to the horizontal position after use, while concealed external fixings provide a cleaner appearance and increased security. The adjustable design offers a versatile replacement option without the need to source an exact fixed-size handle.
Product Features
- Adjustable Lever/Lever multipoint door handle
- Adjustable PZ centres from 59mm to 96mm
- Suitable for inline and offset lock centres
- Adjustable fixing centres from 156mm to 242mm
- XL backplate provides increased coverage
- Helps cover existing fixing holes and faded marks
- Double spring mechanism
- Smooth lever return
- Concealed external fixings
- Curved lever design
- Reversible handing
- Suitable for Euro cylinder locks
- Weather-resistant design
- Suitable for retrofit and replacement applications
Specifications
- Range: Pro XL
- Product Type: Adjustable Multipoint Door Handle
- Handle Type: Lever / Lever
- PZ Centres: Adjustable 59mm-96mm
- Fixing Centres: Adjustable 156mm-242mm
- Spindle Size: 8mm
- Cylinder Type: Euro Cylinder
- Mechanism: Double Sprung
- Handing: Reversible
- Application: Multipoint / uPVC Door Locks

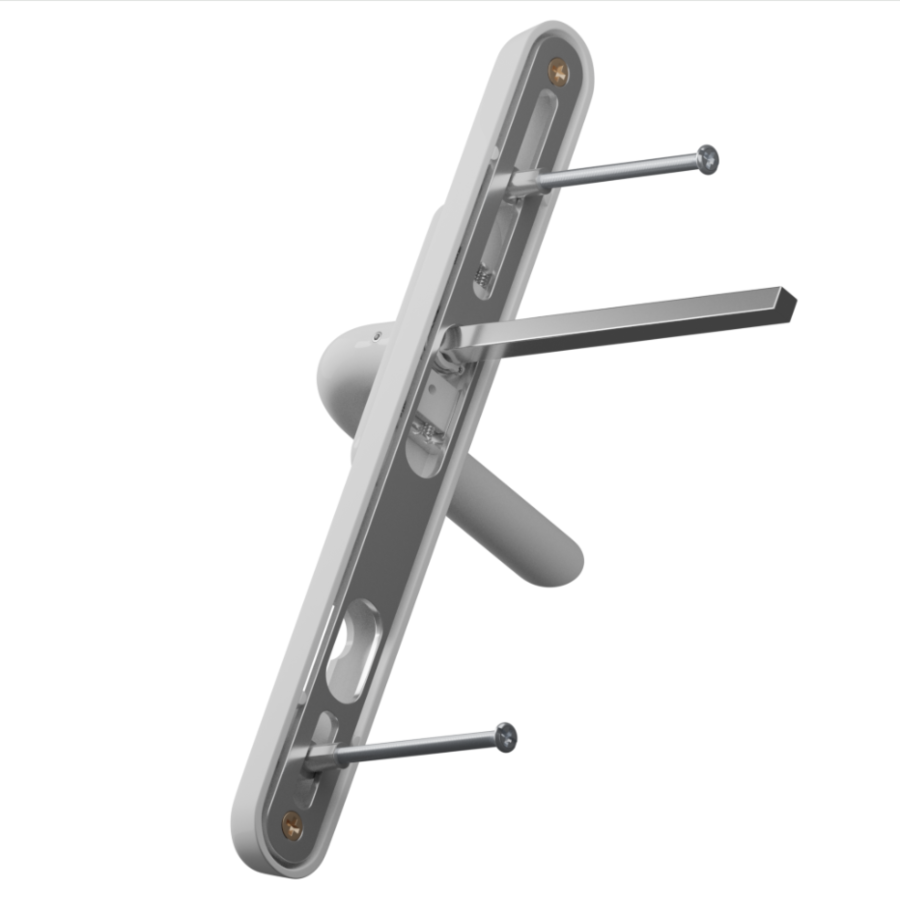

- Fixing Type: Concealed External Fixings

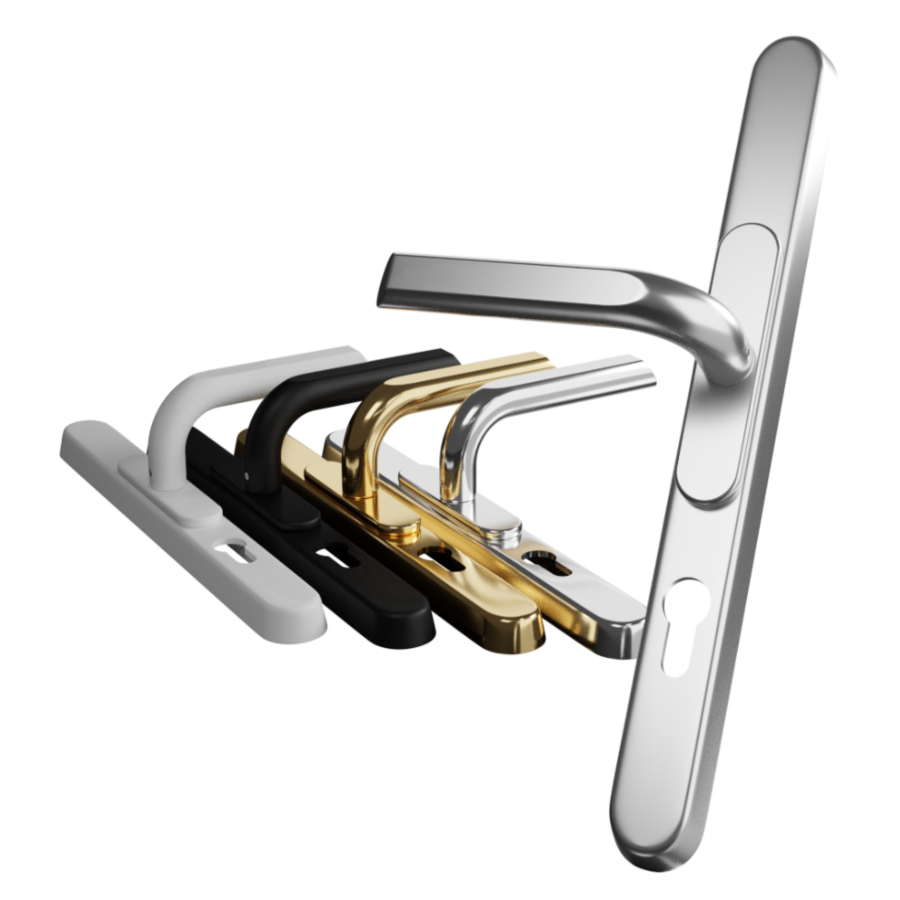

Available Finishes

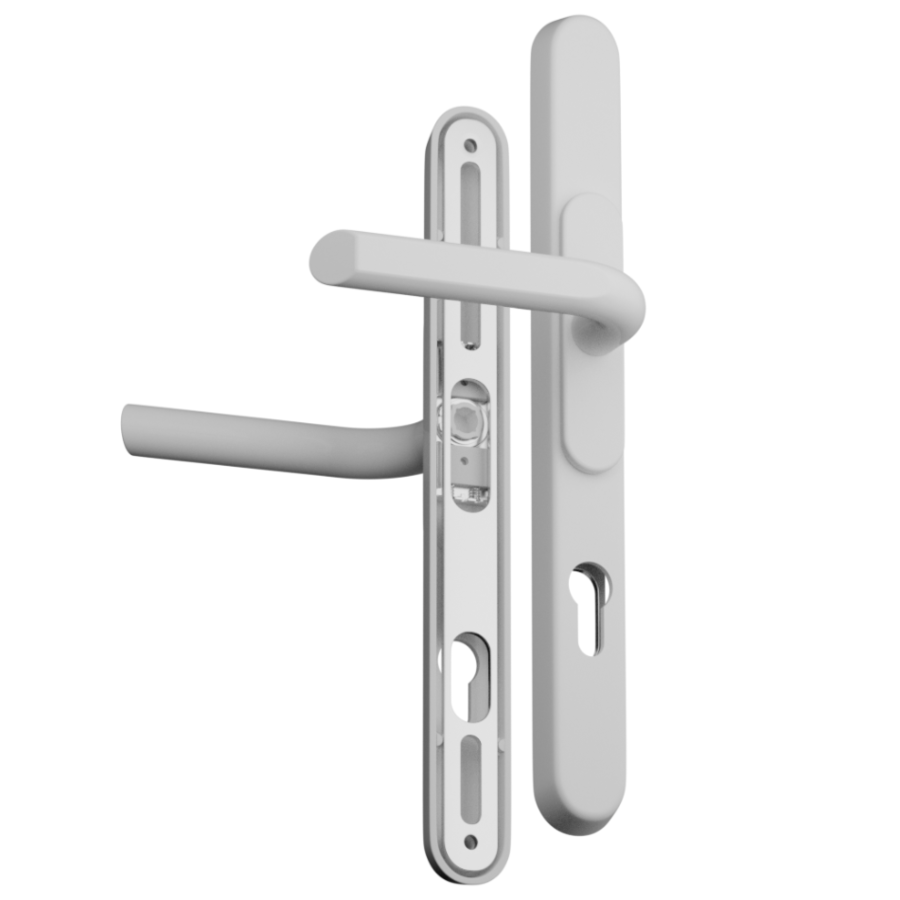

- White

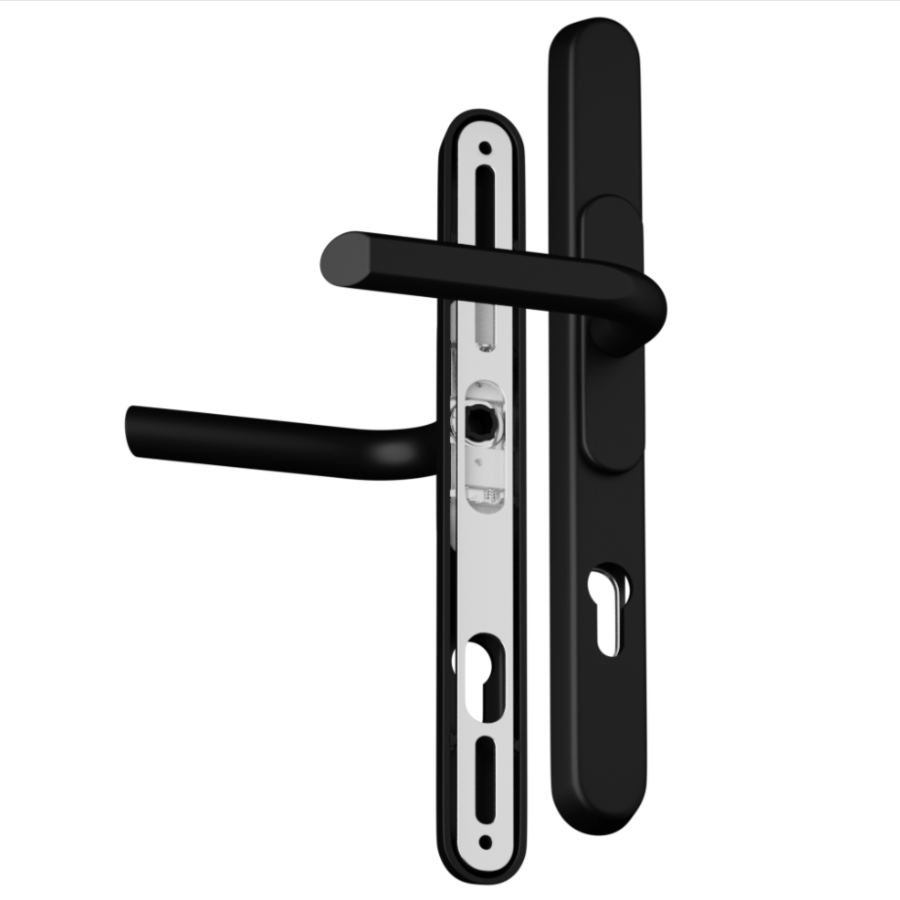

- Black

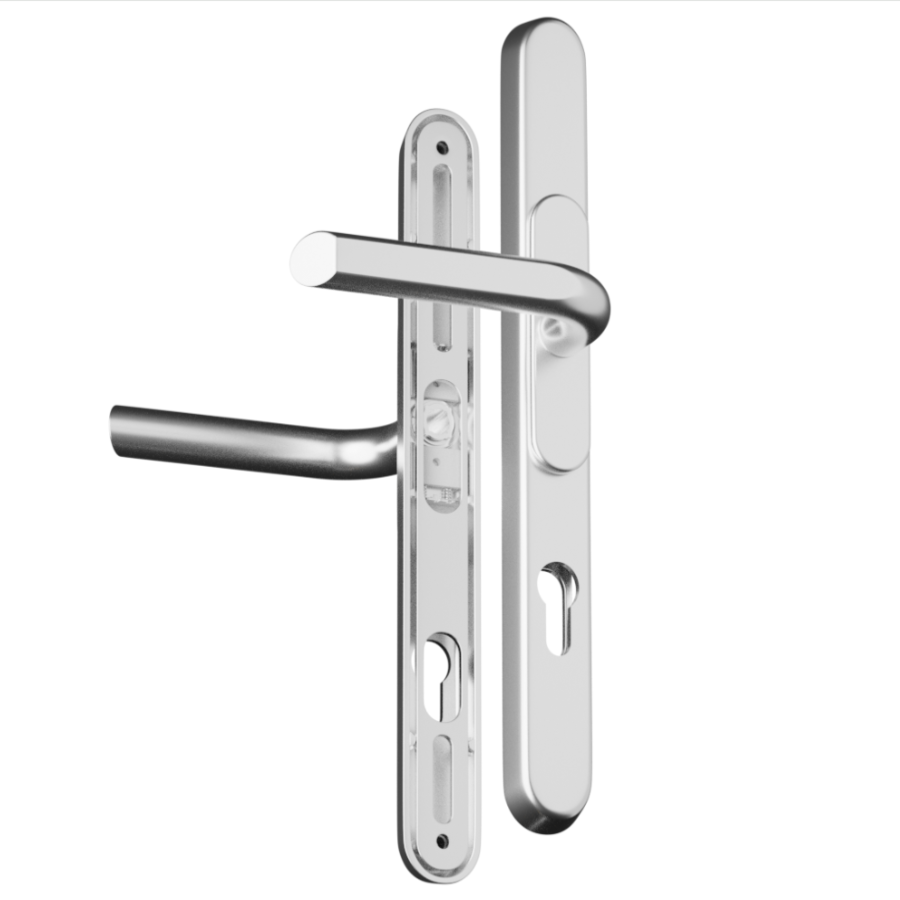

- Brushed Silver

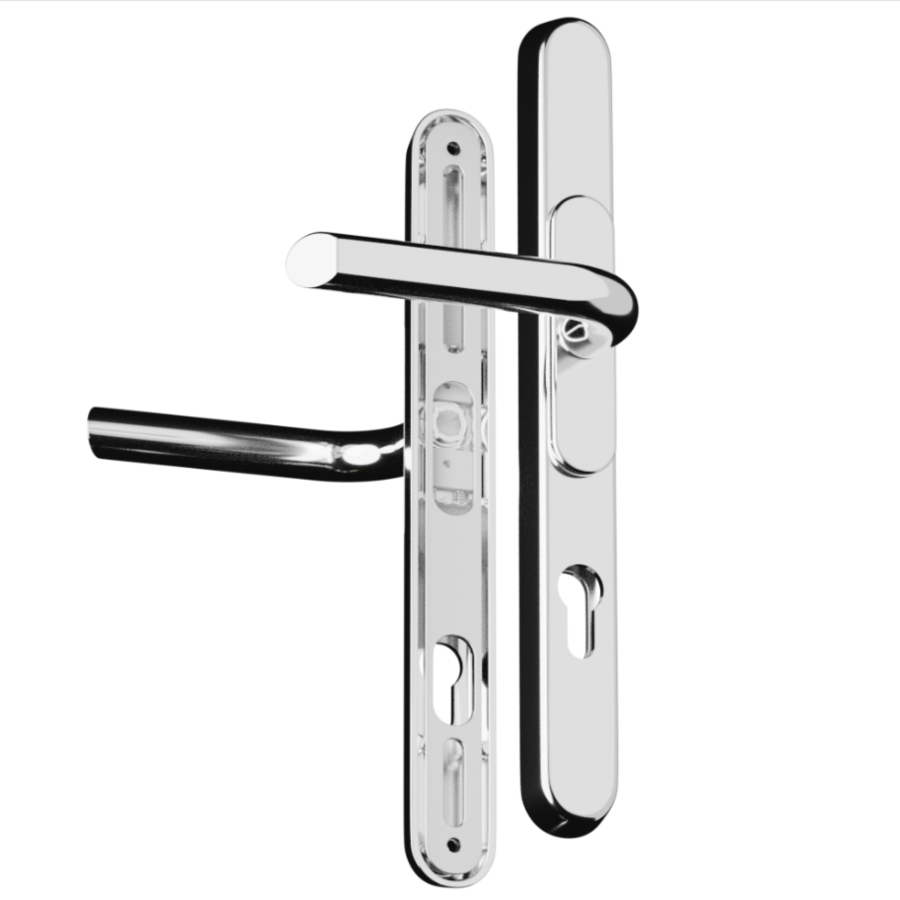

- Polished Silver

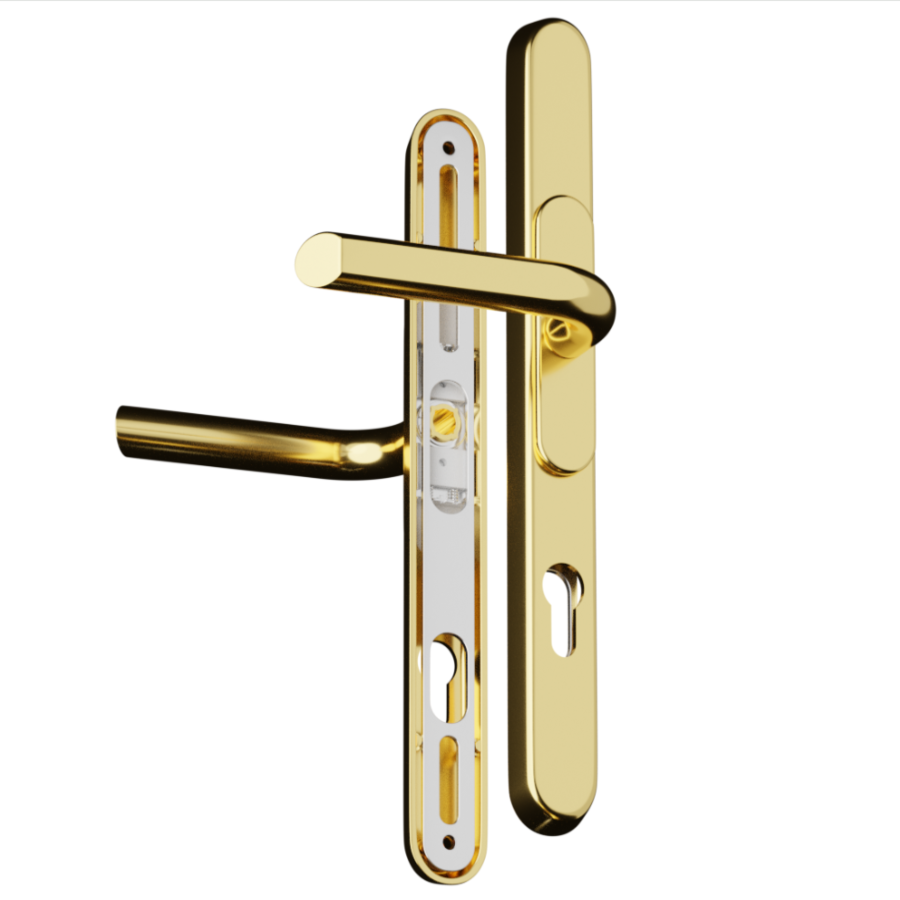

- Gold

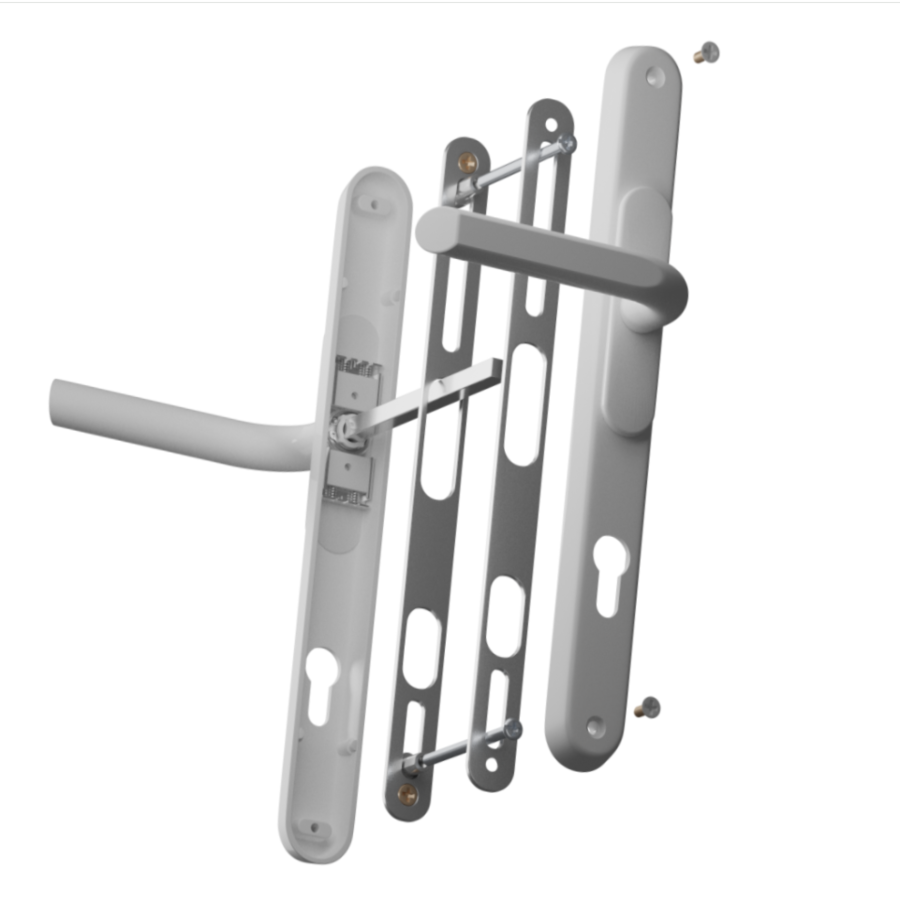

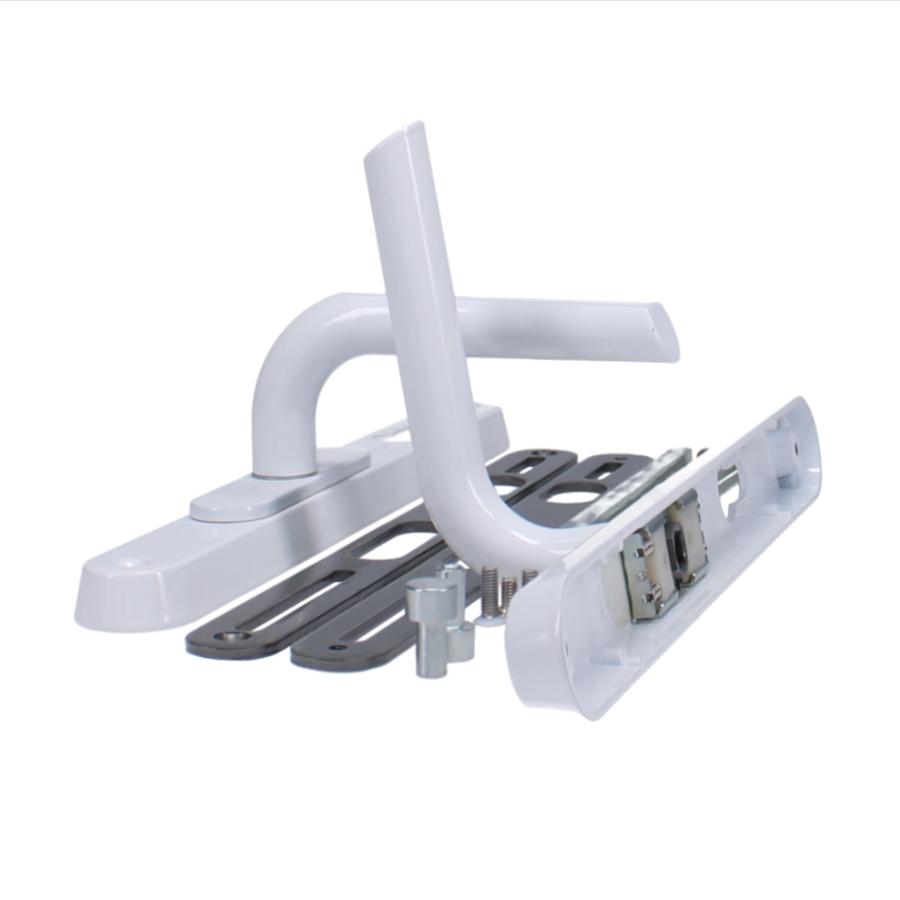

Box Contents
- 1 Pair of Pro XL Lever/Lever Handles
- Backplates
- 8mm Spindle
- Fixings
- Allen Key
