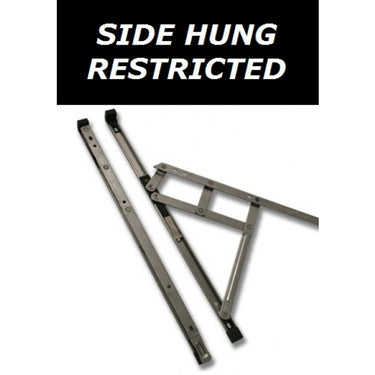

Side hung restricted window hinge in stainless steel, shown in an open position, designed for enhanced security and limited window opening.

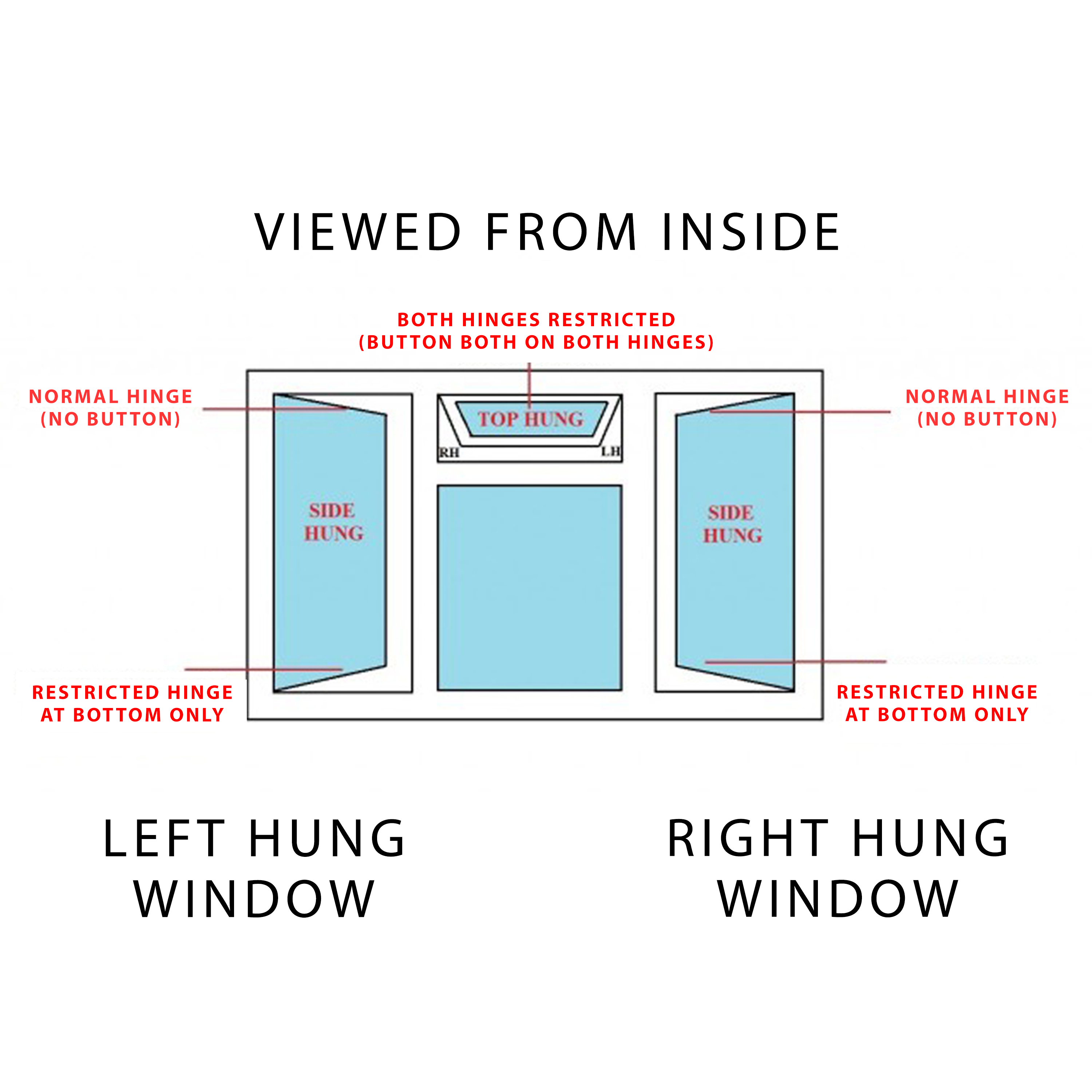

Diagram showing window hinge types viewed from inside

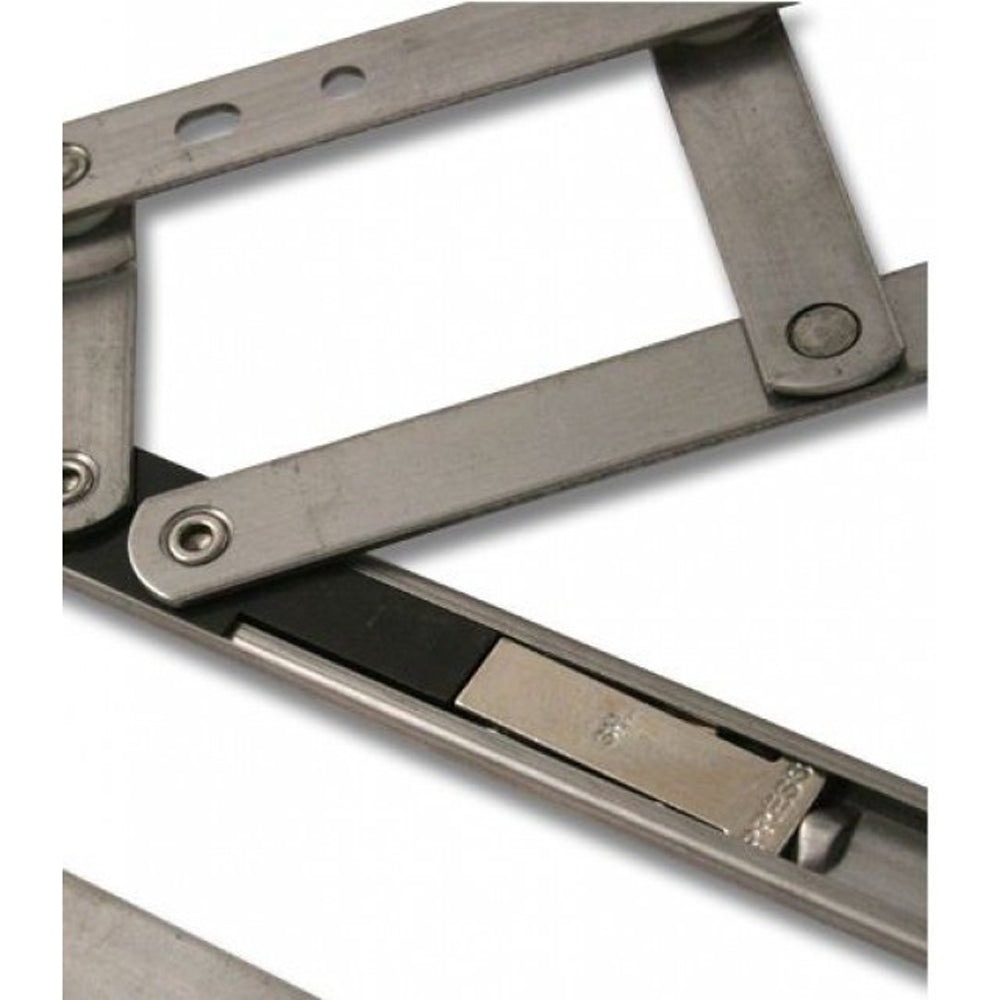

Close-up view of a security restricted window hinge (friction stay) in stainless steel, showing the pivoting arms and locking mechanism.

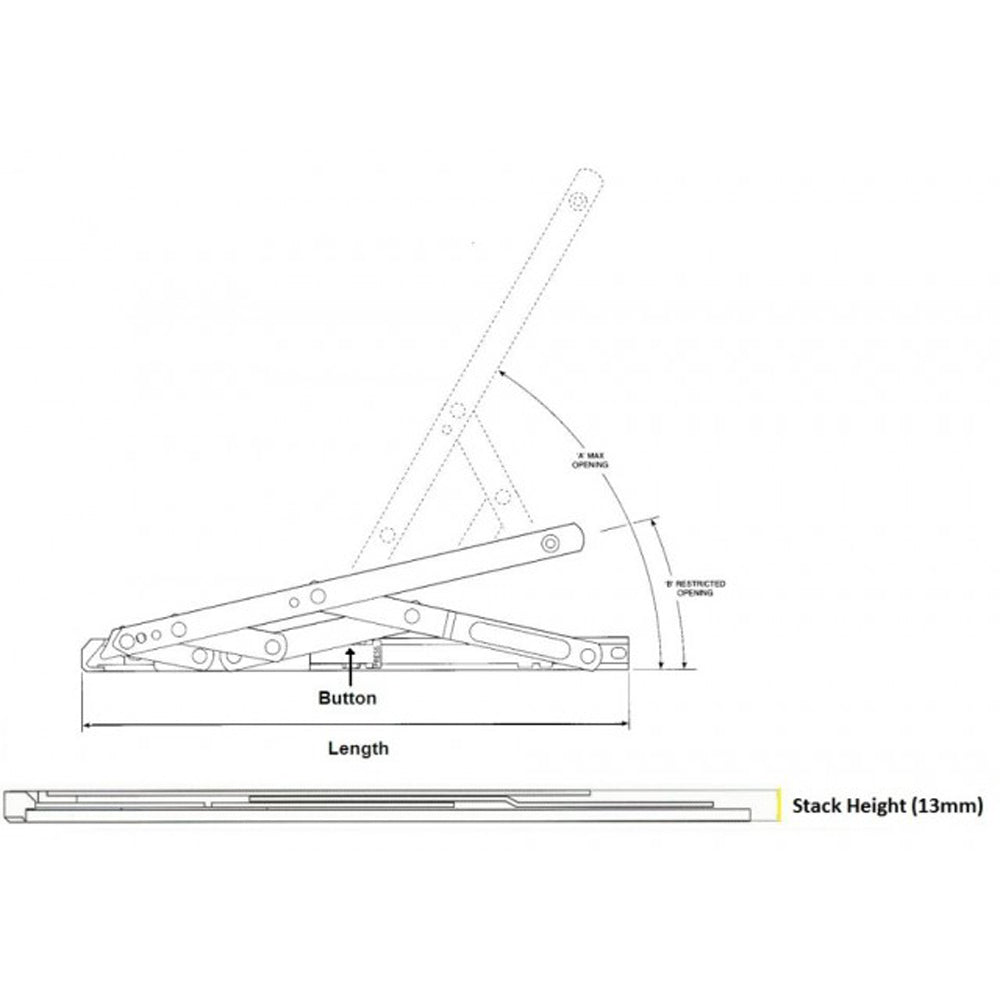

Technical diagram of a security restricted top hung window hinge (friction stay) showing opening angles, button position, length, and 13mm stack height.
Roll over image to zoom in Click on image to zoom
Side hung restricted window hinge in stainless steel, shown in an open position, designed for enhanced security and limited window opening.Diagram showing window hinge types viewed from insideClose-up view of a security restricted window hinge (friction stay) in stainless steel, showing the pivoting arms and locking mechanism.Technical diagram of a security restricted top hung window hinge (friction stay) showing opening angles, button position, length, and 13mm stack height.

Security Restricted Window Hinges Friction Stay Side Hung 12 Inch

AvocetSKU: HS3033
Price:
£5.99

Description

These hinges are designed to open to a restricted distance of around 10cm. A button can then be pressed to allow full opening.

For use with windows that are:

Side Hung - Only bottom hinge has restrictor push button

See image for guidance on window hang type

Sold in pairs (1 left, 1 right). Supplied with 13mm (standard) stack height. Hinge packers can be purchased separately to increase depth to 17mm.

Features & Benefits

* Enhanced weather sealing - enclosed end caps, asymmetric location system and profiled vent are all help
* Long life expectancy - uses Thermoplastic components and tested to 30,000 cycles
* Smooth operation - patented lipped slider
* Easy friction adjustment - without metal-to-metal contact

Common symptoms of failing friction hinges

* Difficulty opening and closing the window?
* Window not closing tightly into frame?
* Draughts through closed window despite gaskets in place?
* Window fails to stay in position when partially open?

If you experience any of the above then you should consider repairing or replacing the hinges, before the situation gets worse and also becomes a security risk.
