Description
5 Year Surface, Mechanical and Operational Guarantee
A modern design offering consistently good value
Cast aluminium lever with stainless steel pressed back plate
One Set - 1 Internal, 1 External Handle
92mm PZ (Inside), 92mm PZ (Outside)
122mm Screw to Screw

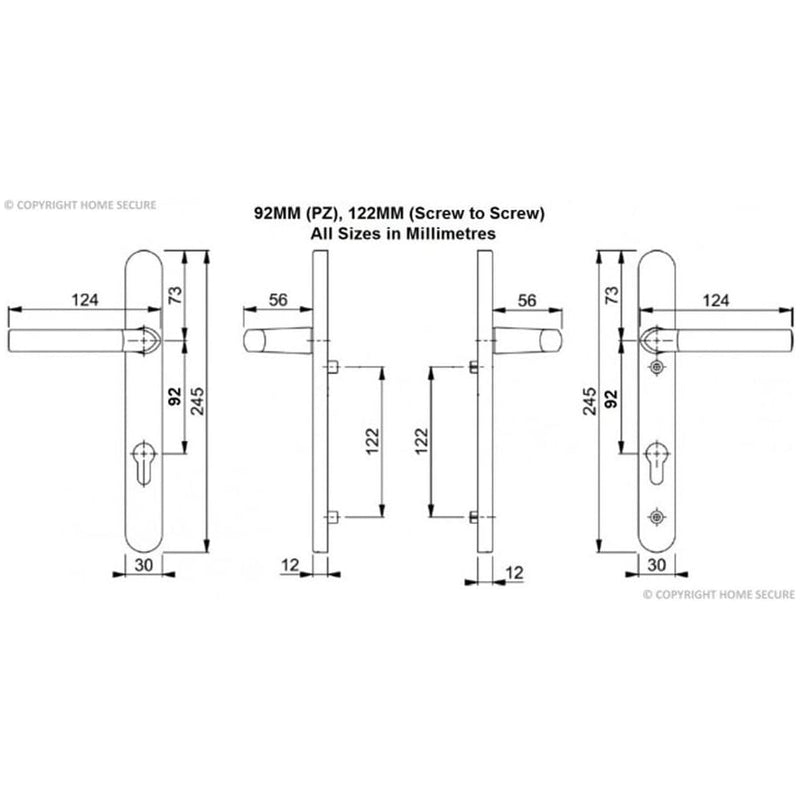

See image above for detailed measurements
Supplied with 80mm Screws & 140mm Spindle
Reversible handles for left or right handed doors
Manufactured with an extended 245mm back plate (Overall length)
Direct replacement for shorter backplates with 122mm screw measurement
Extended backplate will also cover dirt and residue left over from old handles
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Not sure if this handle will fit your door?
Before ordering, take two quick measurements from your existing handle. If both match the dimensions listed above, this handle will fit your door perfectly.
A — Fixing centres
Measure the distance between the centres of the top and bottom fixing screw holes on your current handle. This is most commonly 122mm or 215mm.
B — Handle centres (PZ)
Measure the distance from the centre of the handle spindle (the square hole the lever fits into) to the centre of the keyhole below. This is most commonly 92mm.
If your measurements match, you're good to go. Still unsure? Send a photo of your existing handle to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team. You can also pop into our trade counter in Aintree, Liverpool.
Full measuring guide
