UPVC Window Lock - Offset Espag - 400mm

AvocetSKU: HS2663
Price:
£7.49

Description

This is the mechanism inside the window frame that is operated by the handle

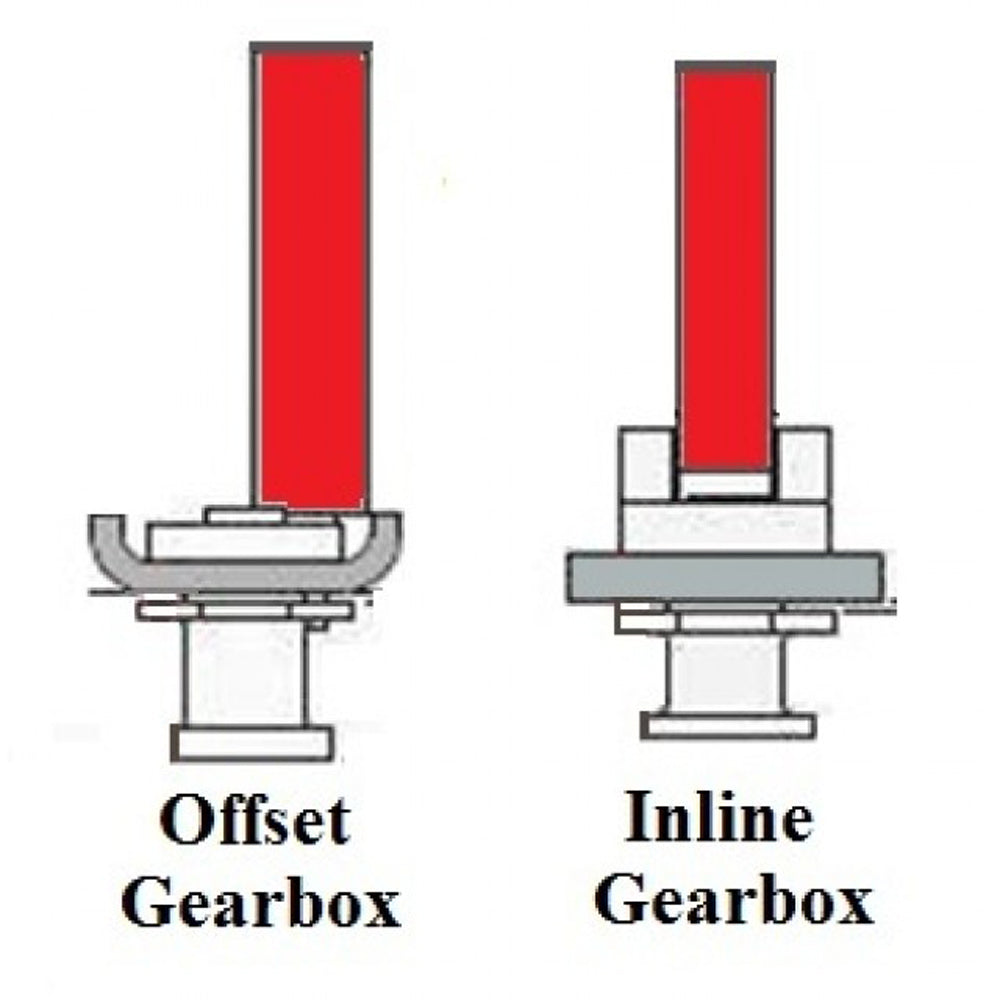

Gearbox is positioned over to one side on the rail (offset)

Important Measurements

1) Overall length

2) The 'Backset' (20mm, 25mm)

4) Rail Width (Usually 16mm)
