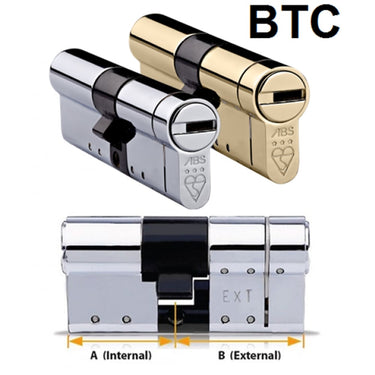

The image shows two Avocet ABS high security euro cylinders, one in silver and one in gold color, with the 'BTC' logo and the British Kitemark symbol visible.
Diagram showing how to measure a door cylinder lock, with internal and external measurements marked as 45mm each. Includes tape measure placement and cylinder labeled 45/45 for accurate sizing.

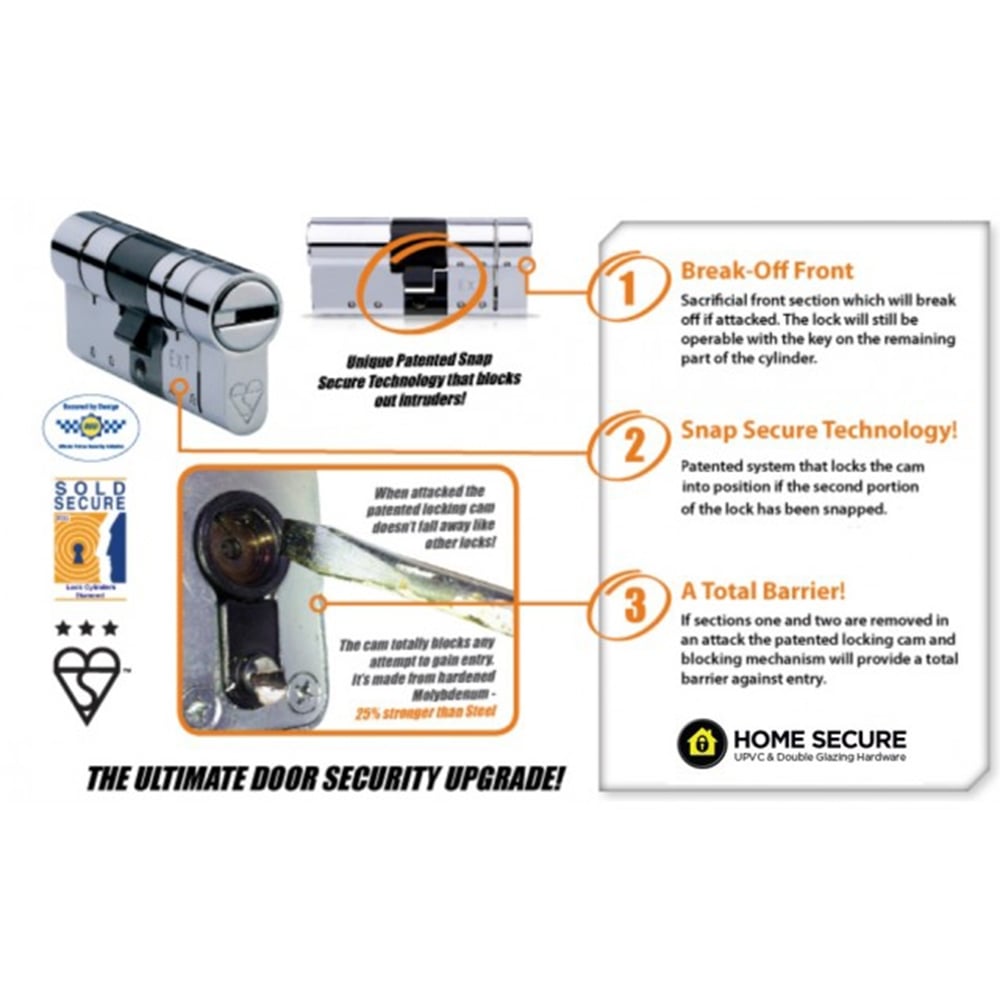

Diagram explaining high-security door cylinder features: break-off front for protection, snap secure technology to lock cam in place, and a total barrier with multiple security layers. Includes certifications and “Home Secure” branding.
Euro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door
The image shows two Avocet ABS high security euro cylinders, one in silver and one in gold color, with the 'BTC' logo and the British Kitemark symbol visible.
Diagram showing how to measure a door cylinder lock, with internal and external measurements marked as 45mm each. Includes tape measure placement and cylinder labeled 45/45 for accurate sizing.
Diagram explaining high-security door cylinder features: break-off front for protection, snap secure technology to lock cam in place, and a total barrier with multiple security layers. Includes certifications and “Home Secure” branding.
Euro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door
Avocet ABS

Avocet ABS High Security Euro Cylinder - Anti Snap Lock - TS007 3 Star (Built to Code)Avocet ABS Euro Cylinder - Anti Snap Lock - TS007 3 Star (Built to Code)

5.0 (3 reviews)
£54.99 SKU: HS2345BTC

Will this fit your door? See the measuring guide ↓

Colour: Chrome
Size (INT) - (EXT)
£54.99
Colour: Chrome
Size (INT) - (EXT)
Order by 2pm for same-day dispatch
Eye visibility icon in black, representing monitoring, visibility, or visual deterrence, displayed on a transparent background.

Same-day dispatch on orders before 2pm

Fully tracked 2 working-day courier

Klarna

3 payments of [klarna_payment] with Klarna.

Learn more
Secure checkout
30-day returns
5-year guarantee

CERTIFIED & POLICE PREFERRED

Black logo with a heart and arrow design on a white background

TS007 3 Star

British Standard

Logo of Solid Secure Diamond with a keyhole design and blue and orange colors.

SS312 Diamond

Sold Secure

Logo of Secured by Design with a blue and yellow color scheme.

Secured by Design

Police Preferred

Logo of BSI with a heart design in the center on a white background

British Kitemark

BSI Approved
Key benefits
  • Cut to your existing ABS key code - matches your current key system
  • TS007 3-star Kitemarked anti-snap - British-tested high security
  • Allow 7 working days - specialist key cutting required
Euro cylinder measuring guide showing how to measure side A and side B from the central fixing screw to determine the correct cylinder size for your door

Not sure which size cylinder you need?

Euro cylinders are measured in two halves, separated by the central fixing screw. Take both measurements from your existing cylinder before ordering, and match them to the size listed above.

A — Internal side
Measure from the centre of the fixing screw to the outer edge of the cylinder on the side that faces inside your home. Common sizes are 30mm, 35mm, 40mm, 45mm, or 50mm.

B — External side
Measure from the centre of the fixing screw to the outer edge of the cylinder on the side that faces outside your home. Common sizes are 30mm, 35mm, 40mm, or 45mm.

Cylinders are typically described as A/B — for example, a 35/45 cylinder has 35mm on the internal side and 45mm on the external side. Get both measurements right and the cylinder will fit your door perfectly.

Still unsure? Send a photo of your existing cylinder to info@homesecureshop.co.uk and we'll match it for you — or call 0151 521 8089 to speak to our team.

Full measuring guide
Product overview

An Avocet ABS euro cylinder built to your existing ABS key code, so the keys you already have will work it. It is a TS007 3 star, British Kitemarked anti-snap ABS that retrofits in place of your old lock.

Before you order

  • Not supplied with keys: lock only. It is built to work with your existing ABS keys.
  • Delivery may take up to 7 working days, depending on the size ordered and whether extra keys need cutting. Contact us if you need delivery timescales.
  • Non-refundable: keyed alike and built-to-code locks are personalised, made-to-order goods.
  • Need more keys too? Order ABS keys cut to code.

Security features

  • Snap Secure Technology: after snapping, the cam locks against the internal locked side of the cylinder, so it can't be operated by hand
  • Anti-snap, anti-drill and anti-pick
  • TS007 3 star rating, with the insurance-recommended British Kitemark™ stamp
  • Master Locksmith Association's Sold Secure Diamond standard

Measuring

Measurements are taken to the centre screw on this lock. See our euro cylinder measuring guide.

Please note: 30mm cylinders do not display a kitemark due to reduced numbers of key combinations. 30mm cylinders still snap off at the sacrificial point in front of the cam, so an intruder can't get into the lock case.

Don't have ABS keys yet? See the standard Avocet ABS euro cylinder (3 keys included) or keyed alike sets.
Delivery & Returns

How much is delivery?

UK Mainland Delivery is £2.99 on all items no matter how many you order!

Northern Ireland, Scottish Highlands, Channel Islands £6.00.

We do not offer International Delivery (Ireland, France, Spain etc).

When will my order be dispatched?

Orders before 2pm (Monday to Friday) are usually dispatched same day but may take up to 24 hours.

When will I receive my item?

We ship on 2 working day courier. Fully Tracked. Tracking will be emailed on dispatch.

Special order items such as keyed alike locks will take longer to dispatch. Please refer to product description for lead times.

I haven't received my item?

Please email us your name, order number and date of purchase.

We prefer email as it allows us time to research and respond.

Returns Information

We operate a 30 day refunds and return policy.

If you change your mind you must return the product back to us within 30 days of delivery

Please include a copy of your invoice and a note stating reason for return.

Additional keys, locks keyed alike or built to code are non refundable as they are personalised made to order goods.

Any refund, which is due to a fault or other defect, will include a refund of the applicable delivery charges otherwise not.

It is the buyers responsibility to arrange the return of goods to us. We do not offer a collection service for returning items.

Items must be returned including original product packaging and accessories.

We reserve the right to refuse any returns that do not comply with this policy.

Please post returns to the following address:

Home Secure (Online)

Unit 5, Brookfield Drive

Liverpool, L9 7AJ

United Kingdom

Frequently Asked Questions

“Built to Code” means the key is cut exactly to the unique code of your existing Avocet ABS lock — ensuring the new cylinder works precisely with that key, maintaining correct security and functionality.

This cylinder delivers strong protection against snapping, drilling, bumping, picking, and plug-extraction — offering one of the highest levels of security available for euro-profile locks.

Choose “Built to Code” when you need a replacement cylinder that matches your current lock’s key code — for instance, if you lost your original key or want a spare — while retaining the same high-security standard.

ABS euro locks — including this TS007 3-Star model — are highly recommended for strong home security because they are tested against common burglary techniques. For an in-depth look at their advantages and performance in real-world use (especially in Liverpool), see our full article here: ABS Euro Locks in Liverpool – TS007 3-Star Anti-Snap Cylinders

Yes — as long as your door uses a standard euro-profile locking system and you measure correctly (cylinder length, screw positions), this cylinder can usually be retro-fitted without replacing the entire lock mechanism.
