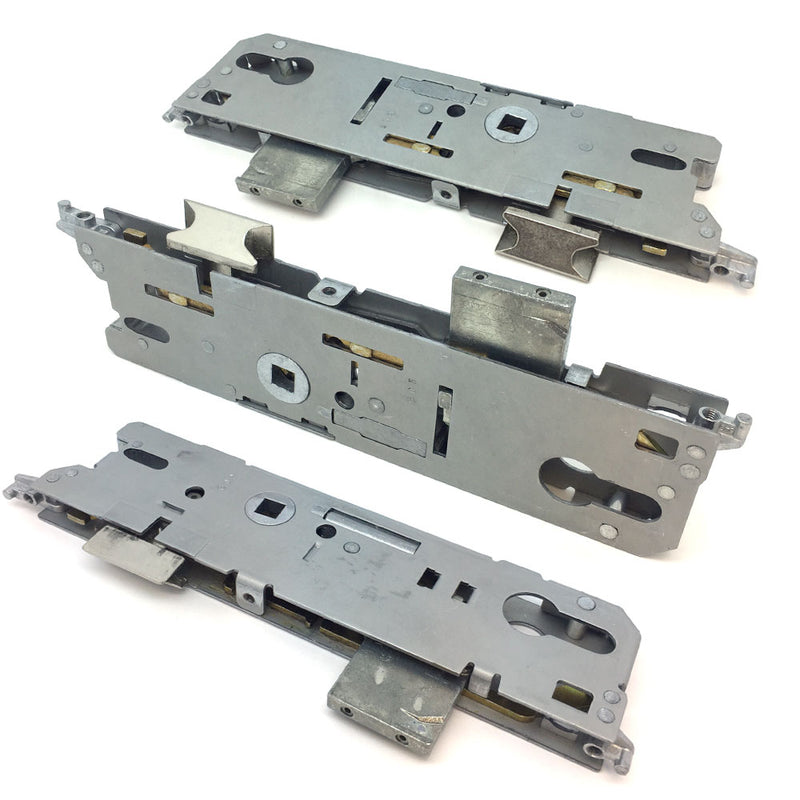

Fuhr Door Lock Centre Case Gearbox

FuhrSKU: HS3281



This is a replacement Fuhr door lock centre case, commonly used on uPVC doors. This is the part that is most likely to be at fault when a lock fails and becomes unusable. Replacing the gearbox is cost effective as it saves having to buy a complete new lock and it is quite easily achieved. Fuhr manufacture a comprehensive range of door locks and as always taking careful measurements will ensure a correct fit. The latch is easily adaptable to fit both left and right handed doors.

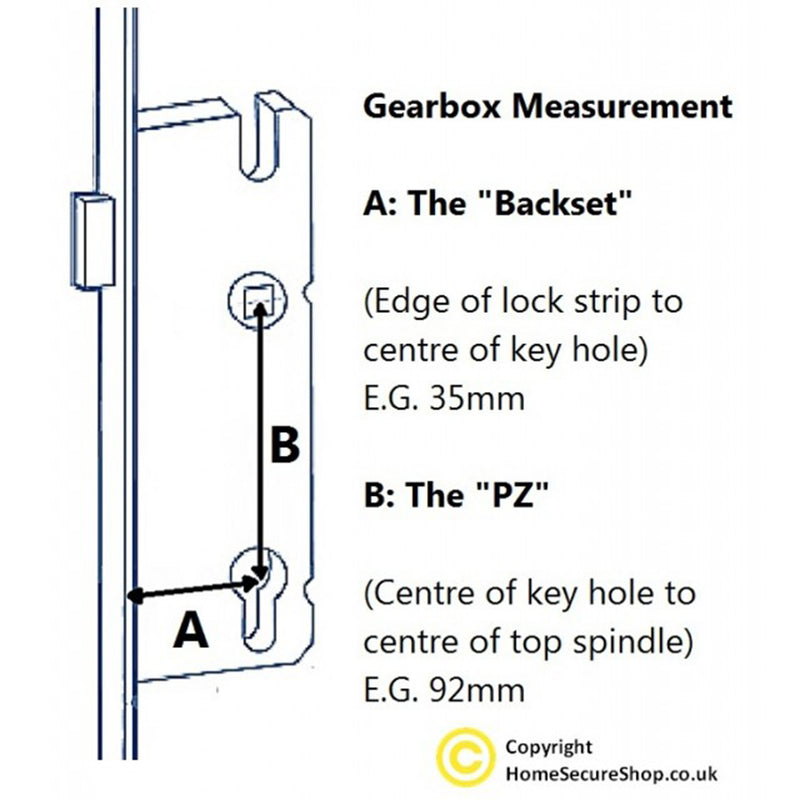

  • Fits 92PZ Handle Centre
  • Non Handed - fits both left and right handed doors


  • Depth - 51mm
  • Width - 15mm
  • Centre of latch to centre of deadbolt - 94mm
  • Deadbolt length 31 mm - Thickness 6mm - Throw 20mm
  • Distance between faceplate screw holes: First to second screw hole 90mm - Second to third screw hole 109mm
Available in:

Single Spindle - for lever/ lever operations
Spilt Spindle - for lever/ pad operations (Restrict access from outside)
