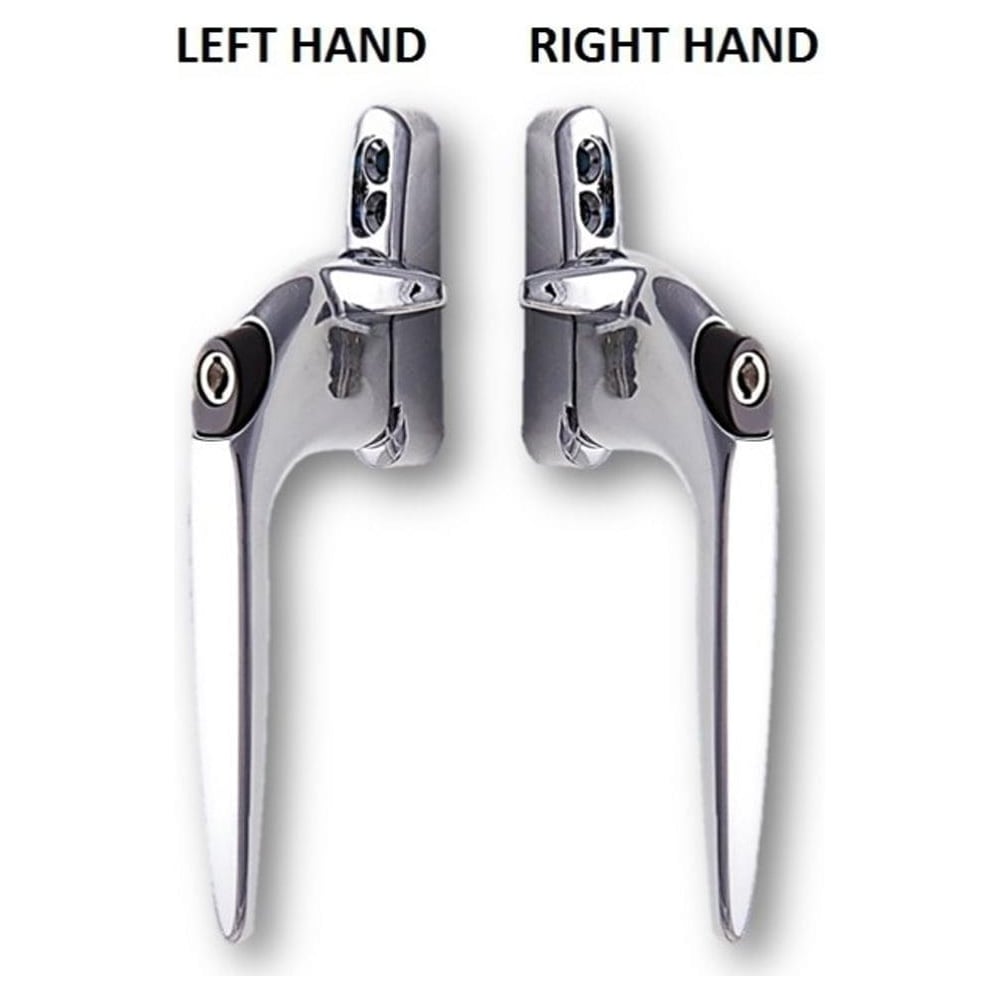

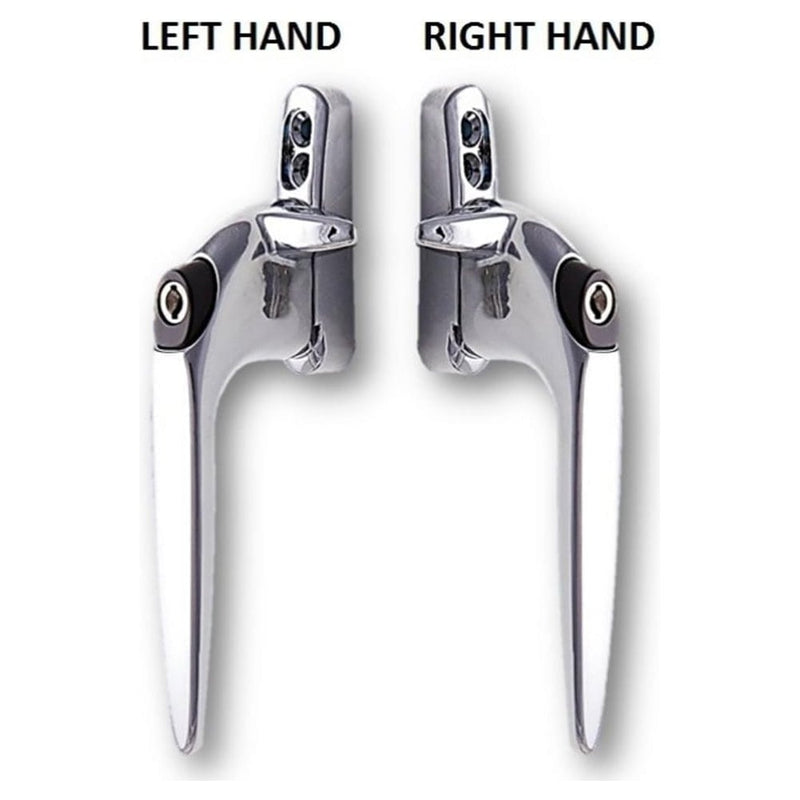

Left and right hand cockspur replacement uPVC Sparta window handles in polished chrome finish, each with key lock.

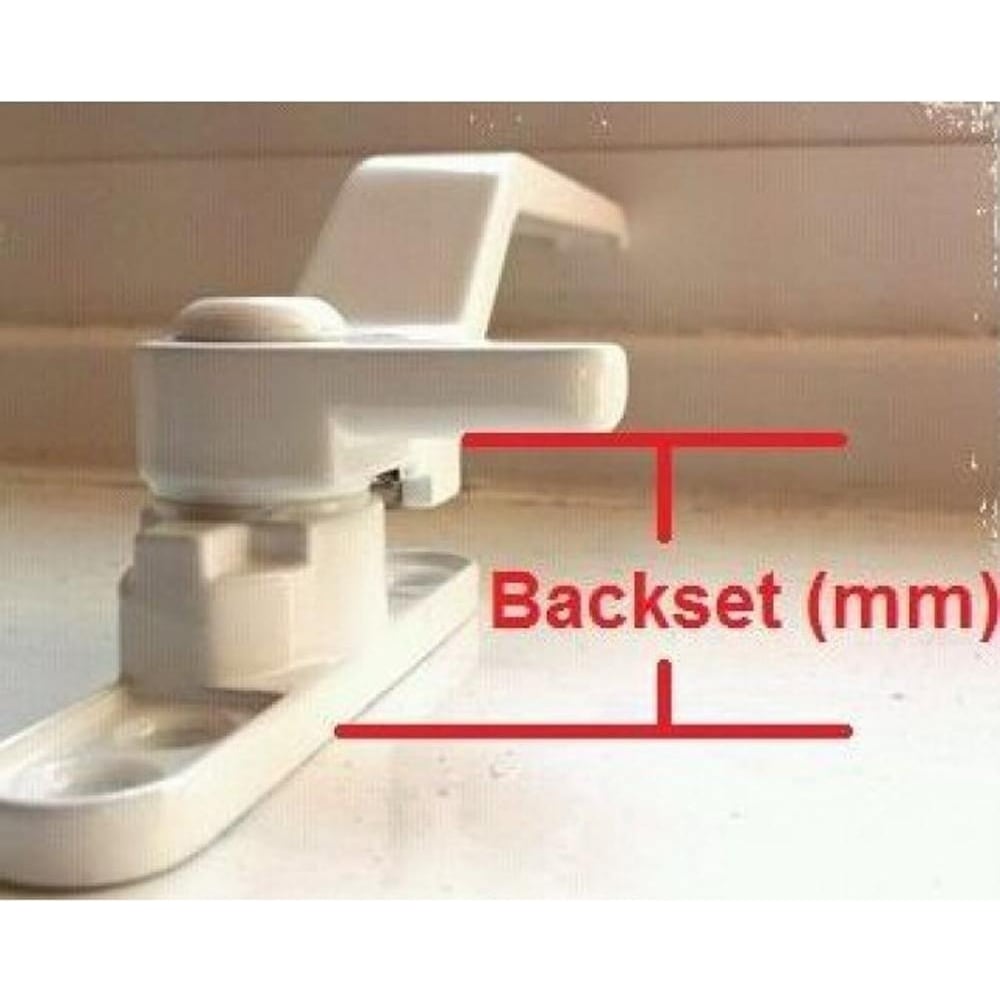

Side view of a white window handle showing how to measure the backset (distance from the front of the base plate to the center of the handle spindle).

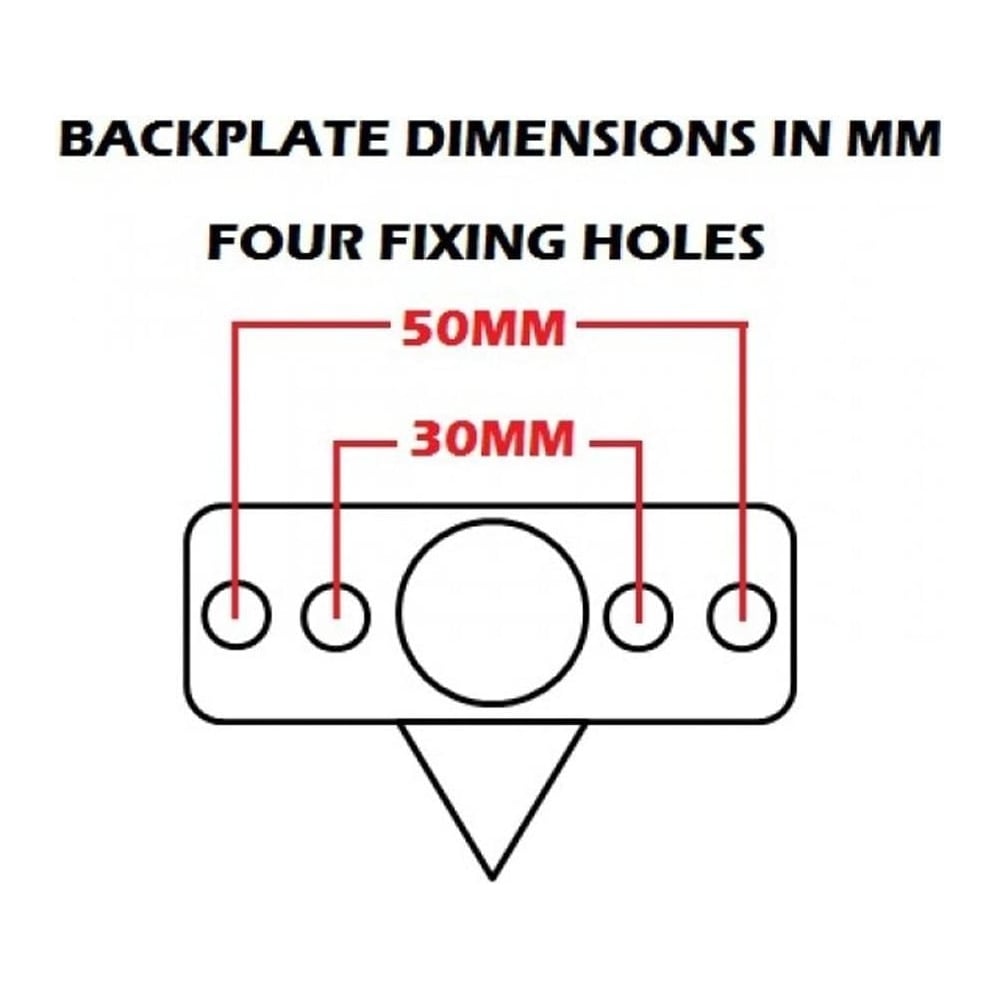

Diagram showing backplate dimensions with four fixing holes. Hole spacing is 30mm between inner holes and 50mm between outer holes. Measurements are in millimeters.

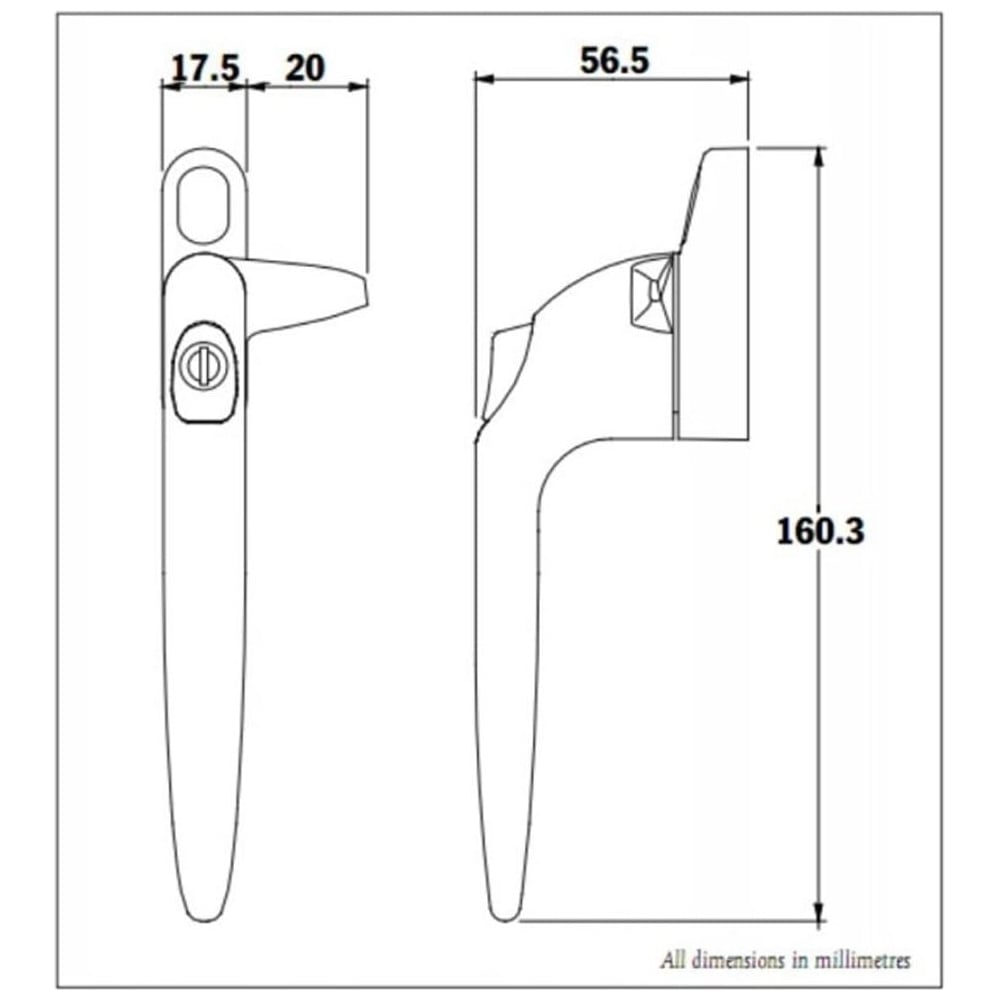

Technical drawing of a Cockspur replacement uPVC Sparta window handle with dimensions: 160.3mm height, 56.5mm depth, 17.5mm handle width, and 20mm spur projection.
Roll over image to zoom in Click on image to zoom
Left and right hand cockspur replacement uPVC Sparta window handles in polished chrome finish, each with key lock.Side view of a white window handle showing how to measure the backset (distance from the front of the base plate to the center of the handle spindle).Diagram showing backplate dimensions with four fixing holes. Hole spacing is 30mm between inner holes and 50mm between outer holes. Measurements are in millimeters.Technical drawing of a Cockspur replacement uPVC Sparta window handle with dimensions: 160.3mm height, 56.5mm depth, 17.5mm handle width, and 20mm spur projection.

Cockspur Replacement uPVC Sparta Window Handle - Chrome

TrojanSKU: HS2895
Price:
£8.99

Description

Ergonomically designed for modern appearance

Available in 9mm, 15.5 & 21mm backsets

Push to unlock mechanism, Key dead-locking for added security

Cover cap supplied to make handle non-locking if required

Supplied with key & cover plate
